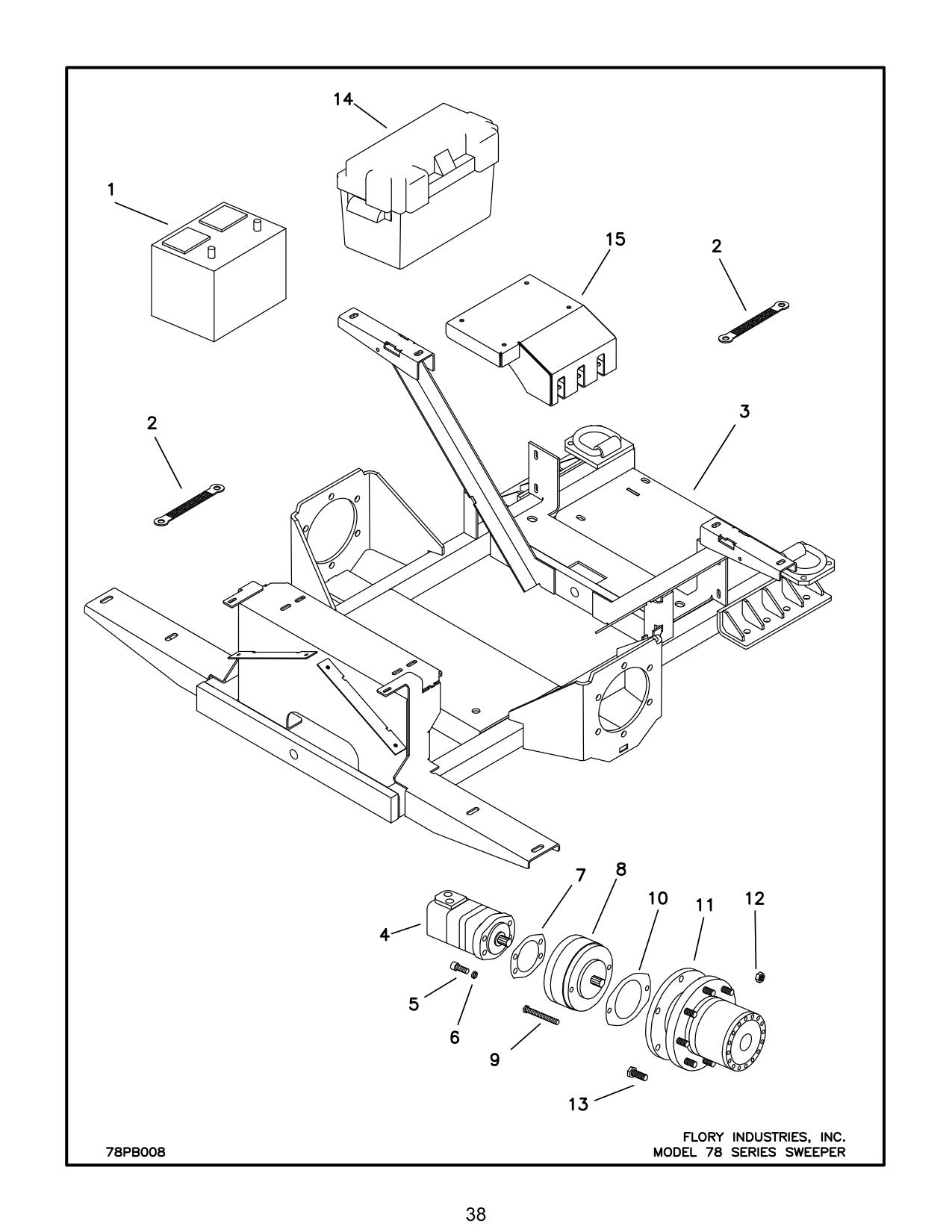

Figure 28 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C27-XHD | BATTERY | 1 |
| 2 | 2094-5 | CABLE, ground | 2 |
| 3 | T66167 | FRAME, main | 1 |
| 4A | HM2061 | MOTOR, wheel | 2 |
| 4B | HM2061-K | SEAL KIT, wheel motor | 1 |
| 5 | 1/2 X 1-1/2-SHA-F | SAE BOLT, motor mount | 8 |
| 6 | 1/2HCLW-C | USS LOCKWASHER | 8 |
| 7 | GS1010 | GASKET, motor to brake | 2 |
| 8A | BK1175 | BRAKE | 2 |
| 8B | BK1075-K | SEAL KIT, brake | 1 |
| 9 | 1/2 X 3-3/4-C | USS BOLT, brake to torque hub | 4 |
| 10 | 28426 | GASKET, brake to torque hub | 2 |
| 11 | TH1401 | TORQUE HUB | 2 |
| 12 | NT1009 | NUT, lug | 18 |
| 13 | 5/8 X 1-1/2-C | USS BOLT, torque hub to frame | 12 |
| 14A | CV0085 | BOX, battery | 1 |
| 14B | LC9100 | STRAP, battery box | 1 |
| 15 | T67007 | MOUNT, battery | 1 |
| 15 | 78PB008 | MODEL 78 SERIES SWEEPER |
