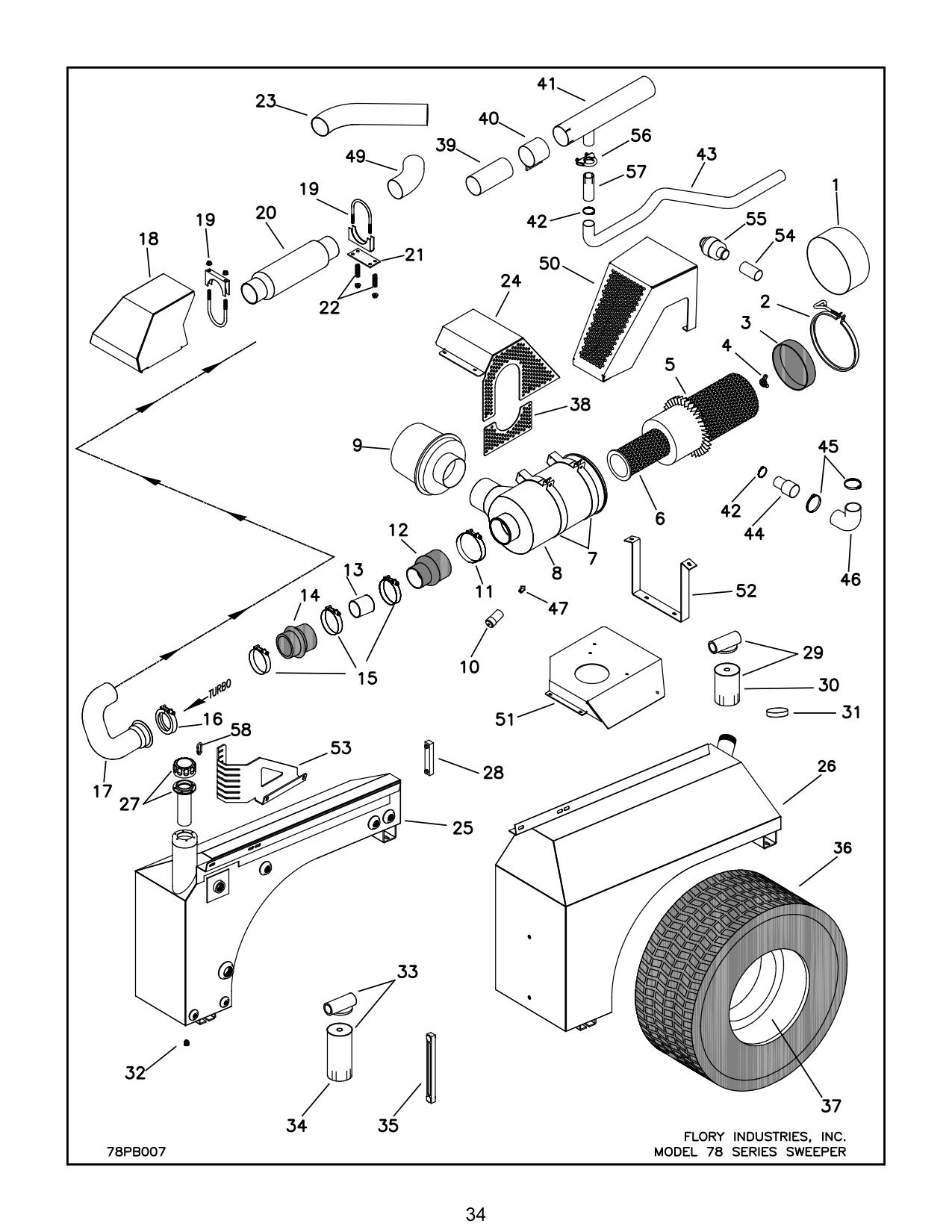

Figure 25 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CV1085 | CUP, air cleaner (s/n ~3880) | 1 |
| 1 | CV1078 | CUP, air cleaner (s/n 3953~) | 1 |
| 2 | CA4085 | CLAMP, cap | 1 |
| 3 | NP5085 | BAFFLE, air cleaner (s/n ~4047) | 1 |
| 4 | P101870 | NUT, filter | 1 |
| 5 | FL7085 | FILTER, air (primary) (s/n ~4047) | 1 |
| 5 | FL7078 | FILTER, air (primary) (s/n 4074~) | 1 |
| 6 | FL8085 | FILTER, air (secondary) (s/n ~4047) | 1 |
| 6 | FL8078 | FILTER, air (secondary) (s/n 4074~) | 1 |
| 7 | CA4185 | BAND, air cleaner mount | 2 |
| 8 | AC2085 | AIR CLEANER, complete (s/n ~4047) | 1 |
| 8 | AC2078-R1 | AIR CLEANER, complete (s/n 4074~) | 1 |
| 9 | AC3078 | PRE CLEANER | 1 |
| 10A | GA7056 | INDICATOR, air cleaner (includes brass fitting) | 1 |
| 10B | FT2089 | FITTING, brass indicator | 1 |
| 11 | CA7400 | CLAMP, t bolt | 1 |
| 12 | NP3078 | HUMP, hose | 1 |
| 13 | T10257 | TUBE, a/c | 1 |
| 14 | P105608 | HUMP, hose | 1 |
| 15 | CA7212 | CLAMP, t bolt | 3 |
| 16 | RE40048 | CLAMP, turbo | 1 |
| 17 | XP3777 | ELBOW, turbo exhaust | 1 |
| 18 | T21217 | GUARD, muffler | 1 |
| 19 | CA3300 | CLAMP, muffler | 2 |
| 20 | XP1880 | MUFFLER | 1 |
| 21 | T67517 | MOUNT, rear muffler | 1 |
| 22 | C-764 | SPRING, compression | 2 |
| 23 | XP2078 | TIP, exhaust (s/n ~3880) | 1 |
| 24 | T21257 | GUARD, a/c (s/n ~4047, 5494~) Note: If replacing for s/n ~3880 include ref. #38 | 1 |
| 25 | T67267 | TANK, oil | 1 |
| 26 | T65197 | TANK, fuel | 1 |
| 27A | MC6113 | CAP, oil filler | 1 |
| 27B | MM0113 | STRAINER, filler | 1 |
| 28A | LX0510 | GAUGE, oil tank | 1 |
| 28B | 25010 | O RING, gauge | 2 |
| 29 | F11BA | FILTER AND BASE, oil return | 1 |
| 30 | FL110 | FILTER, element | 1 |
| 31 | 31803 | CAP, fuel tank | 1 |
| 32 | PG7104 | PLUG, magnetic drain | 1 |
| 33 | DS13AJ | FILTER AND BASE, oil suction | 1 |
| 33 | 78PB007 | MODEL 78 SERIES SWEEPER | |
| 34 | DMS07AN | FILTER, element | 1 |
| 35 | GA7075 | GAUGE, fuel tank | 1 |
| 36 | 29X140015 | TIRE, rear | 2 |
| 37 | WH1578 | WHEEL, rear | 2 |
| 38 | T21267 | GUARD, a/c screen (s/n 3953-4047, 5494~) | 1 |
| 39 | XP1178 | TUBE, exhaust ejector (s/n 3953-4047) | 1 |
| 40 | 4114 | CLAMP, band (s/n 3953-4727) | 1 |
| 40 | CA3078 | CLAMP, band (s/n 4728~) | 1 |
| 41 | AC7078 | EJECTOR, exhaust (s/n 3953-4727) | 1 |
| 41 | AC7030 | EJECTOR, exhaust (s/n 4728~) | 1 |
| 42 | CA2108 | CLAMP, hose (QTY-2 s/n 3953-4469)(QTY-4 s/n 4510~) | |
| 43 | HS0110-1 | HOSE, exhaust ejector (s/n 3953-4047) 31in | |
| 43 | HS0110-1 | HOSE, exhaust ejector (s/n 4074-4469) 18in | |
| 43 | HS0110-1 | HOSE, exhaust ejector (s/n 4510-4727) 13in | |
| 43 | HS0110-1 | HOSE, exhaust ejector (s/n 4728~) 11in | |
| 44 | XP1078 | TUBE, steel reducer (s/n 3953~) | 1 |
| 45 | CA2204 | CLAMP, hose (s/n 3953~) | 2 |
| 46 | P105529 | ELBOW, exhaust ejector (s/n 3953~) | 1 |
| 47 | 3102-2-2 | FITTING, 45 deg. indicator (s/n 3953-4047) | 1 |
| 47 | 3400X2 | FITTING, 90 deg. indicator (s/n 4074~) | 1 |
| 48A | CKV2336 | VALVE, fuel check (not shown) (s/n 3953~) | 1 |
| 48B | FT2078 | FITTING, brass barb (not shown) (s/n 3953~) | 1 |
| 49 | XP1278 | ELBOW, exhaust (s/n 4074-4727) | 1 |
| 49 | XP3078 | ELBOW, exhaust (s/n 4728~) | 1 |
| 50 | T21017 | GUARD, air cleaner (s/n 4074-5442) | 1 |
| 51 | T22017 | DEFLECTOR, air cleaner (s/n 4074-5442) | 1 |
| 52 | T64017 | BRACKET, deflector (s/n 4074-5442) | 1 |
| 53 | T29977 | GUARD, oil cap | 1 |
| 54 | HS0110-1 | HOSE, exhaust ejector (s/n 4510~) 3in | |
| 55 | VL6131 | VALVE, exhaust check (s/n 4510~) | 1 |
| 56 | CA3108 | CLAMP, muffler (s/n 4728~) | 1 |
| 57 | T10207 | TUBE, exhaust ejector (s/n 4728~) | 1 |
| 58 | 316SH | HOOK, snap 3/16" | 1 |
