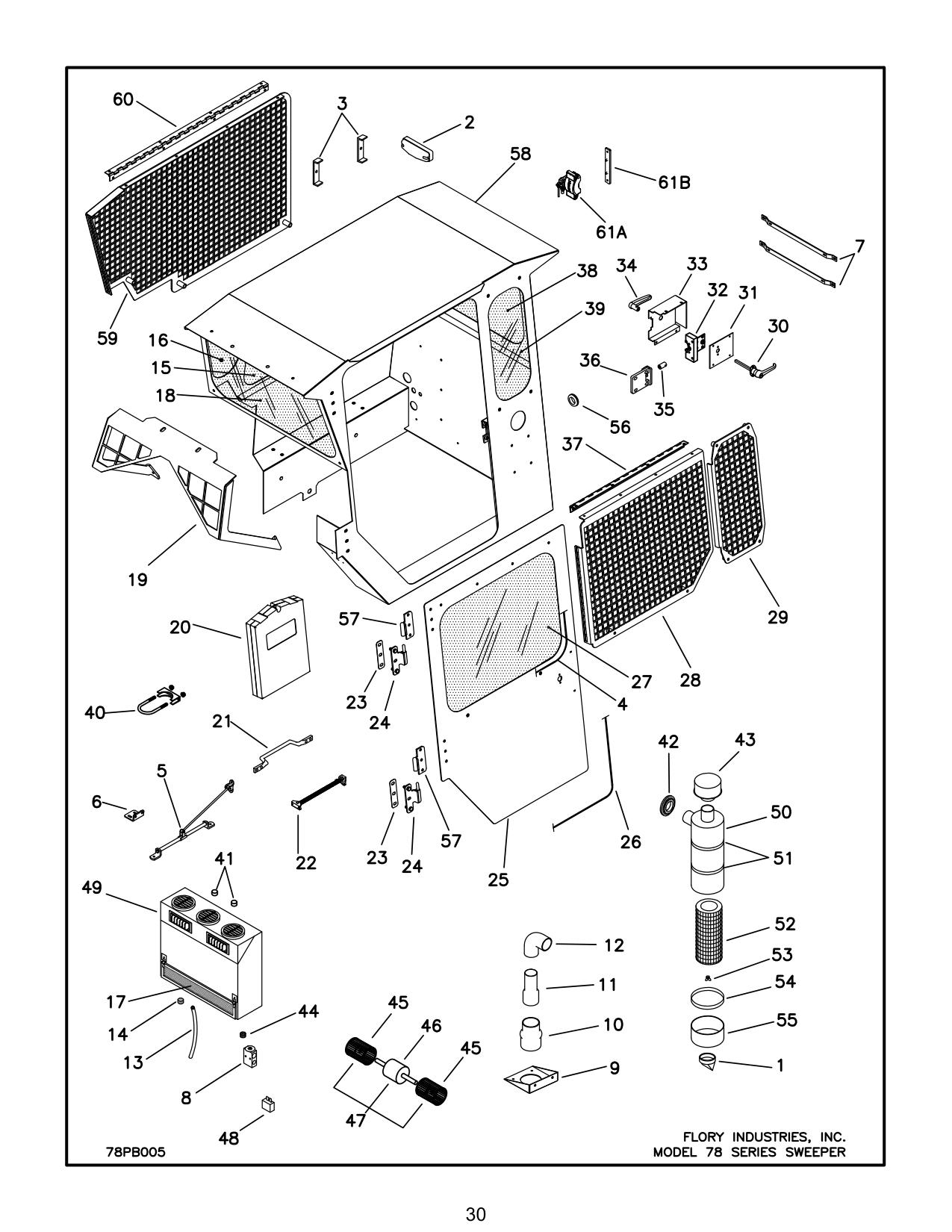

Figure 22 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 39 | T29757 | GLASS, window (left rear) standard (s/n ~3880) | 1 |
| 39 | T29757ST | GLASS, window (left rear) tempered (s/n 3953~) | 1 |
| 40 | CA3208 | CLAMP, receiver/dryer (s/n ~4995) | 1 |
| 40 | CA3212 | CLAMP, receiver/dryer (s/n 4996~) | 1 |
| 41 | CT1900 | KNOB, thermostat & fan | 2 |
| 42 | NP2175 | BOOT, air cleaner | 1 |
| 43 | GAX001966 | CAP, air conditioner inlet | 1 |
| 44 | FT7075 | FITTING, drain | 2 |
| 45 | FN2111 | WHEEL, fan motor | 2 |
| 46 | ME9111 | MOTOR, evaporator fan | 1 |
| 47 | AR7111 | ASSEMBLY, evaporator fan (includes 45 & 46) | 1 |
| 48 | SW1900 | THERMOSTAT, pre, set | 1 |
| 49 | AR1110 | EVAPORATOR, air conditioner | 1 |
| 50 | AC1075 | AIR CLEANER, air conditioner | 1 |
| 51 | PPP007191 | BAND, air cleaner | 2 |
| 52 | P101222 | FILTER, air | 1 |
| 53 | P101870 | NUT, air cleaner | 1 |
| 54 | P002940 | CLAMP, air cleaner | 1 |
| 55A | CV1075 | CUP, air cleaner | 1 |
| 55B | P102510 | BAFFLE, air cleaner | 1 |
| 56 | RB7010 | GROMMET, 0.625" | 2 |
| 56 | RB7100 | GROMMET, 1" | 1 |
| 56 | RB7104 | GROMMET, 1.250" | 1 |
| 57 | T27387 | HINGE, door mounted | 2 |
| 58 | T62737 | FRAME, standard cab | 1 |
| 58 | T62747 | FRAME, tall cab | 1 |
| 59 | T29417 | GUARD, window (right) (optional) | 1 |
| 60 | T29177 | HINGE, window guard | 1 |
| 61A | ME0978 | BOX, fan control (obsolete - replace with ME0979) | 1 |
| 61A | ME0979 | BOX, fan control | 1 |
| 61B | L61126 | BRACKET, control box (use when replacing ME0978) | 1 |
| 61B | 78PB005 | MODEL 78 SERIES SWEEPER |
