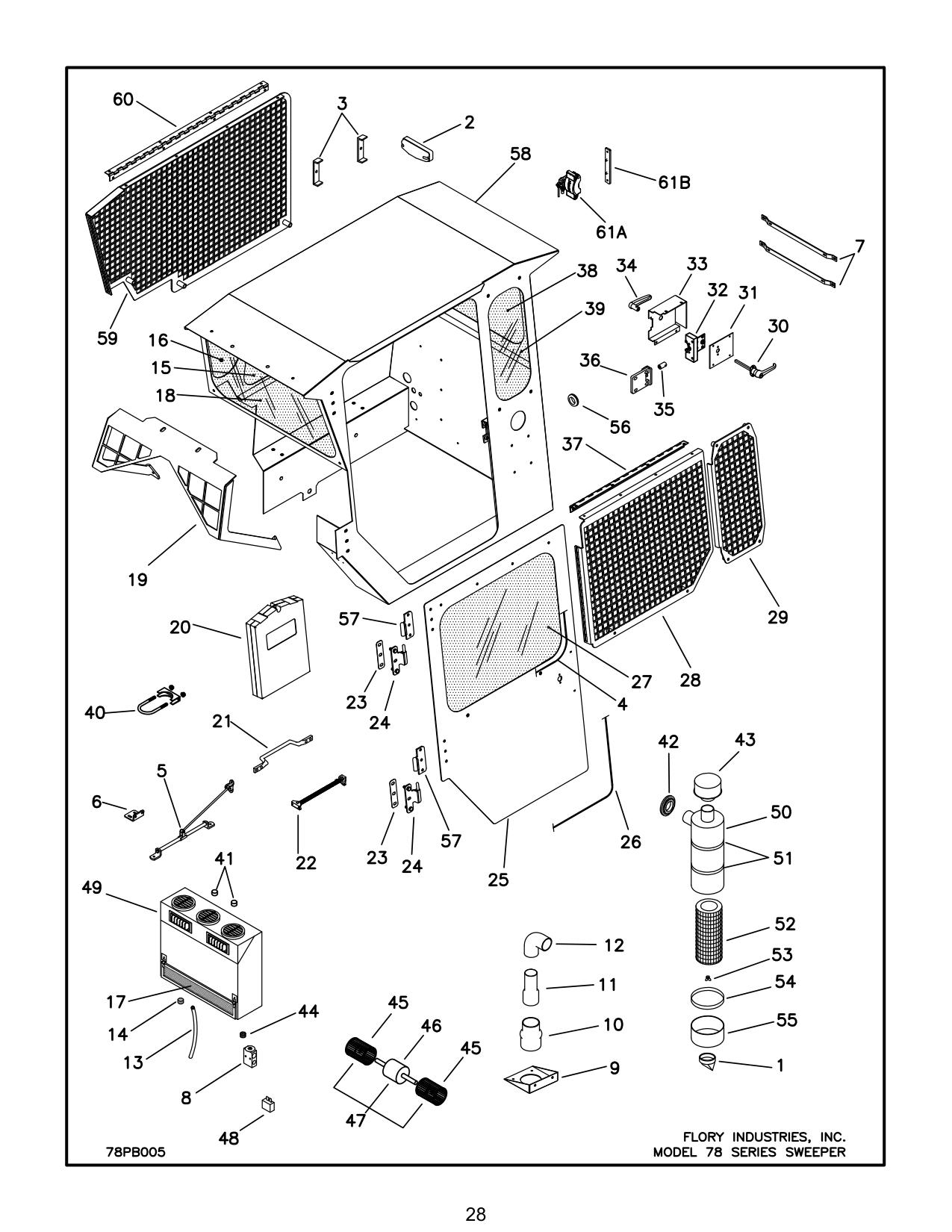

Figure 21 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | P112803 | DUMPER, air cleaner | 1 |
| 2 | LT5900 | LIGHT, dome | 1 |
| 3 | T61427 | CLAMP, hose guide | 1 |
| 4 | AS987-1 | TRIM, window | |
| 5 | BA1078 | CHECK, door (s/n 3953~) | 1 |
| 6 | T67247 | BRACKET, door check (s/n 3953~) Used with Ref. # 5 | 1 |
| 7 | T61357 | BRACE, condenser | 2 |
| 8 | AR6010 | VALVE, expansion | 1 |
| 9 | T61237 | BRACKET, cab blower mount | 1 |
| 10 | PPP102820 | REDUCER, air conditioner inlet | 1 |
| 11 | NP7075 | TUBE, air cleaner extension | 1 |
| 12 | P105529 | ELBOW, air cleaner | 1 |
| 13 | 5153108-1 | HOSE, drain 7” | |
| 14 | FT7075 | FITTING, drain | 2 |
| 15 | T29207 | GLASS, window (right rear) | 1 |
| 16 | T29737 | GLASS, window (right front) | 1 |
| 17 | FL0011 | FILTER, air conditioner | 1 |
| 18 | T29717 | GLASS, window (front) | 1 |
| 19 | T60377 | GUARD, branch | 1 |
| 20 | MM3077 | CASE, manual | 1 |
| 21 | CT5901 | HANDLE, door | 1 |
| 22 | SG7077 | SPRING, SS (s/n ~3880) Replace with Ref. # 5 & 6 | 1 |
| 23 | T10777 | SHIM, door hinge | |
| 24 | T27377 | HINGE, cab mounted | 2 |
| 25 | T27077 | DOOR, cab (standard) | 1 |
| 25 | T27977 | DOOR, cab (tall) | 1 |
| 26 | RB1115-1 | TRIM, door seal | |
| 27 | T29747 | GLASS, window (door) standard (s/n ~3880) | 1 |
| 27 | T29747ST | GLASS, window (door) tempered (s/n 3953~) | 1 |
| 28 | T21447 | GUARD, window (door) (s/n ~3880) | 1 |
| 29 | T21437 | GUARD, window (cab) (s/n ~3880) | 1 |
| 30A | LC5075 | HANDLE, door latch (outside) | 1 |
| 30B | FT9112 | KEY SET, door handle (code no. 112) | 1 |
| 31 | T67637 | MOUNT, door handle | 1 |
| 32 | LC1090 | LATCH, door | 1 |
| 33 | W20400 | COVER, door latch | 1 |
| 34 | LC5175 | HANDLE, door latch (inside) | 1 |
| 35 | BT0078 | PIN, cab door striker | 1 |
| 36 | U23010 | STRIKER, cab door | 1 |
| 37 | T27177 | HINGE, window guard | 1 |
| 38 | T29777 | GLASS, window (rear) | 1 |
| 38 | 78PB005 | MODEL 78 SERIES SWEEPER | |
| 39 | T29757 | GLASS, window (left rear) standard (s/n ~3880) | 1 |
| 39 | T29757ST | GLASS, window (left rear) tempered (s/n 3953~) | 1 |
| 40 | CA3208 | CLAMP, receiver/dryer (s/n ~4995) | 1 |
| 40 | CA3212 | CLAMP, receiver/dryer (s/n 4996~) | 1 |
| 41 | CT1900 | KNOB, thermostat & fan | 2 |
| 42 | NP2175 | BOOT, air cleaner | 1 |
| 43 | GAX001966 | CAP, air conditioner inlet | 1 |
| 44 | FT7075 | FITTING, drain | 2 |
| 45 | FN2111 | WHEEL, fan motor | 2 |
| 46 | ME9111 | MOTOR, evaporator fan | 1 |
| 47 | AR7111 | ASSEMBLY, evaporator fan (includes 45 & 46) | 1 |
| 48 | SW1900 | THERMOSTAT, pre, set | 1 |
| 49 | AR1110 | EVAPORATOR, air conditioner | 1 |
| 50 | AC1075 | AIR CLEANER, air conditioner | 1 |
| 51 | PPP007191 | BAND, air cleaner | 2 |
| 52 | P101222 | FILTER, air | 1 |
| 53 | P101870 | NUT, air cleaner | 1 |
| 54 | P002940 | CLAMP, air cleaner | 1 |
| 55A | CV1075 | CUP, air cleaner | 1 |
| 55B | P102510 | BAFFLE, air cleaner | 1 |
| 56 | RB7010 | GROMMET, 0.625" | 2 |
| 56 | RB7100 | GROMMET, 1" | 1 |
| 56 | RB7104 | GROMMET, 1.250" | 1 |
| 57 | T27387 | HINGE, door mounted | 2 |
| 58 | T62737 | FRAME, standard cab | 1 |
| 58 | T62747 | FRAME, tall cab | 1 |
| 59 | T29417 | GUARD, window (right) (optional) | 1 |
| 60 | T29177 | HINGE, window guard | 1 |
| 61A | ME0978 | BOX, fan control (obsolete - replace with ME0979) | 1 |
| 61A | ME0979 | BOX, fan control | 1 |
| 61B | L61126 | BRACKET, control box (use when replacing ME0978) | 1 |
| 61B | 78PB005 | MODEL 78 SERIES SWEEPER |
