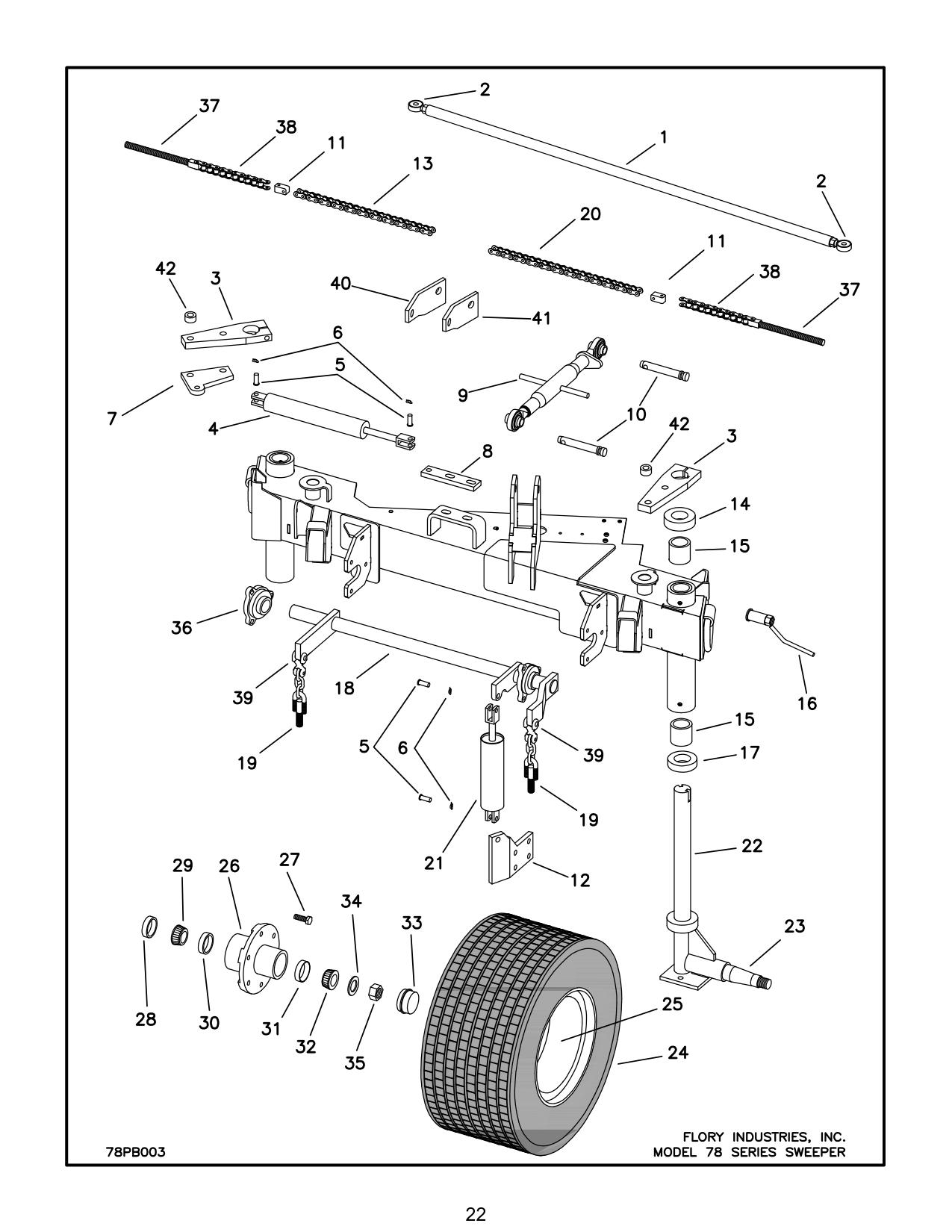

Figure 16 · Flory Flory 78 Series Sweeper

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
32 LM67048 CONE, bearing (outer) 2
33 103969 CAP, hub dust 2
34 104581 WASHER, spindle 2
35 103289 NUT, spindle 2
36 FLC3106L BEARING, reel lift shaft 1
37 T11587 REDI BOLT-depth chain 2
38A 60RC9 CHAIN-depth (upper) 2
38B 60CL CONNECTOR LINK-chain 4
39 PN4055 CLEVIS, double 2
40 T64107 BRACKET, top link retrofit (right) (s/n ~4205) 1
41 T64117 BRACKET, top link retrofit (left) (s/n ~4205) 1
42 T10053 SPACER, tie rod 2
42 78PB003 MODEL 78 SERIES SWEEPER
