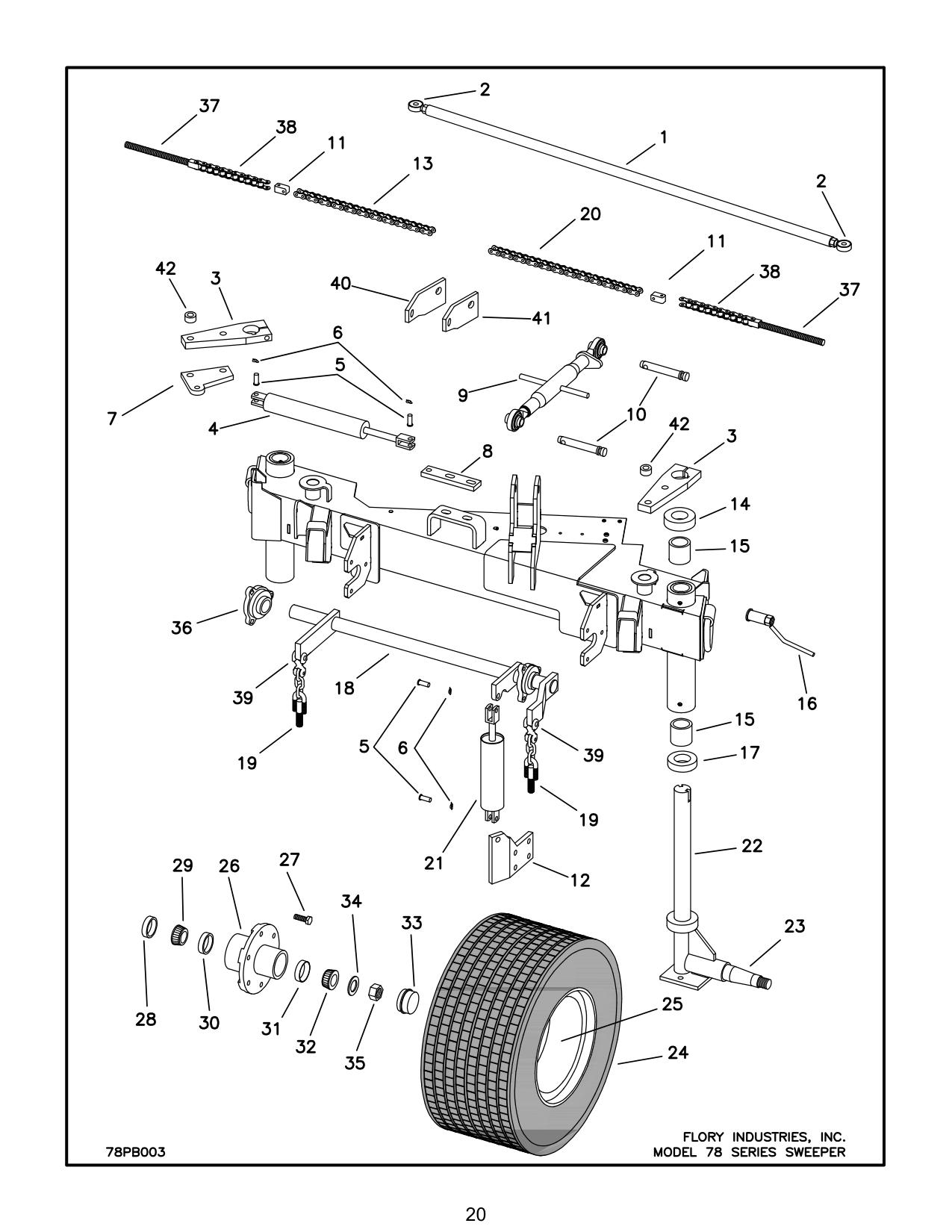

Figure 15 · Flory Flory 78 Series Sweeper

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 T10307 ROD, steering 1
2 SPM10 ROD END, steering rod 2
3 T61687 ARM, steering 2
4A WFC1508 CYLINDER, steering 1
4B LD108RK SEAL KIT, cylinder 1
5 87462 PIN, clevis 4
6 PN3003 PIN, hair (3/32”) 4
7 T61697 ARM, steering 1
8 T60037 BRACKET, steering cylinder (s/n ~3967) 1
8 T60047 BRACKET, steering cylinder (s/n 3998~) 1
9 PN6075 PIN, pitch control (6678, 7678 & 8678) (s/n ~4162) 1
10 12427 PIN 2
11 T67427 U JOINT 2
12 T67497 MOUNT, lift cylinder 1
13A 60RC21 CHAIN-depth (lower right) 1
13B 60CL CONNECTOR LINK-chain 2
14 C111 SHAFT COLLAR, spindle (1-11/16”) 2
15 G2084G BUSHING, spindle (brass) 4
16 T10125 CRANK, depth 2
17 T14007 WASHER, spindle thrust (plastic) 2
18 T51777 SHAFT, reel lift 1
19 T12577 BOLT, lift chain (6678, 7678 & 8678) 2
19 T12677 BOLT, lift chain (70678 & 80678) 2
20A 60RC19 CHAIN-depth (lower left) 1
20B 60CL CONNECTOR LINK-chain 2
21A LD2004 CYLINDER, lift 1
21B LD2004K SEAL KIT, cylinder 1
22 T62177 SPINDLE ASSEMBLY 2
23 106169K SPINDLE (welded) 2
24 23X105012 TIRE, front (7678 & 8678) 2
24 23X85012 TIRE, front (6678) 2
25 W120715 WHEEL, front (7678 & 8678) 2
25 W124815 WHEEL, front (6678) 2
26 106686 HUB, wheel (front) (includes ref. nos. 26-33) 2
27 105144 BOLT, wheel lug 12
28 CR20044 SEAL, hub 2
29 LM501349 CONE, bearing (inner) 2
30 LM501310 CUP, bearing (inner) 2
31 LM67010 CUP, bearing (outer) 2
31 78PB003 MODEL 78 SERIES SWEEPER
331 PIN, pitch control (6678, 7678 & 8678) (s/n 4205~) 1
331 PN6075 PIN, pitch control (70678 & 80678) 1
