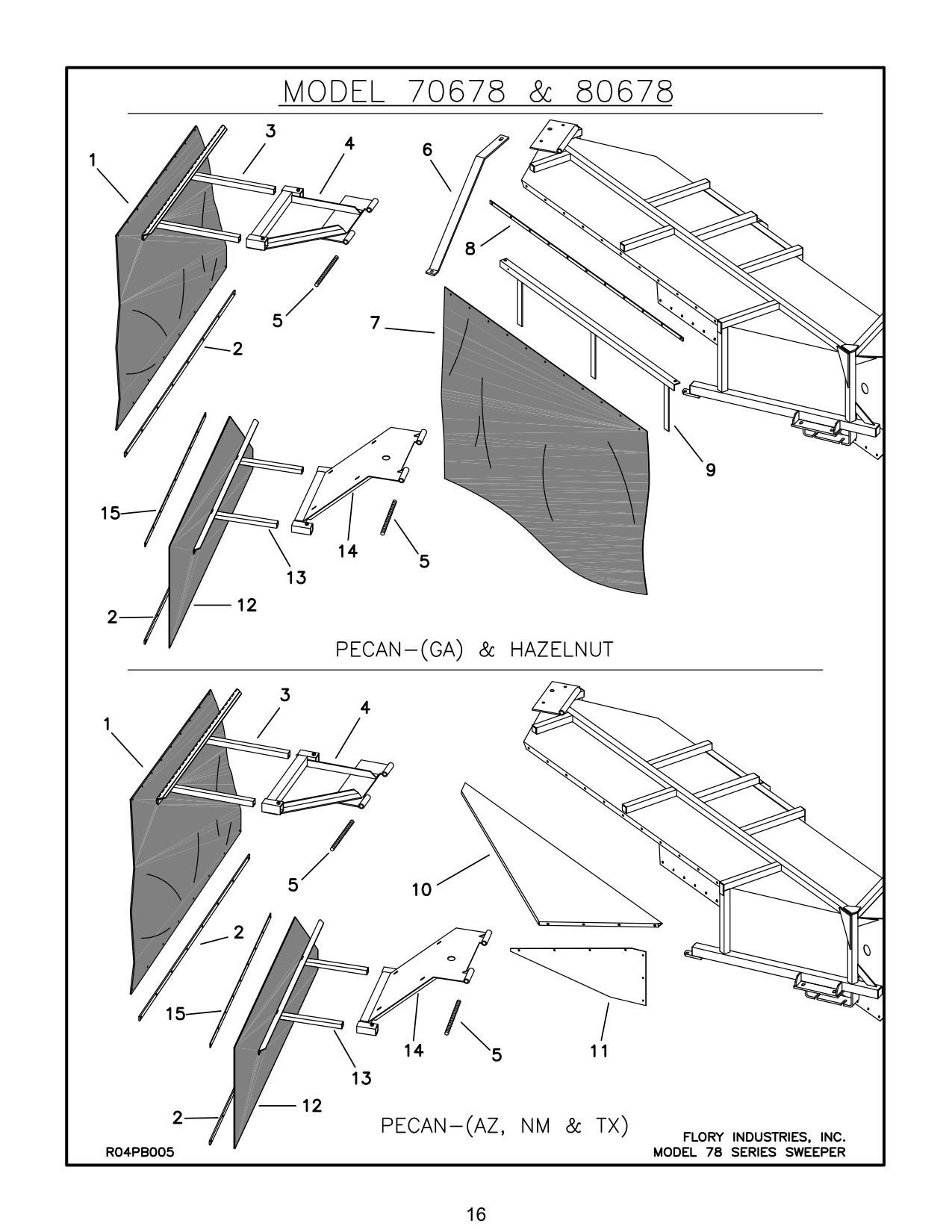

Figure 12 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T30477 | CURTAIN-side | 1 |
| 2 | T60285 | CLAMPSTRIP-curtain (side) | 1 |
| 3 | T60635 | FRAME-curtain (side) | 1 |
| 4 | T60435 | FRAME-curtain frame (side) | 1 |
| 5 | T1105 | REDI-BOLT-hinge | 1 |
| 6 | T60465 | BRACE-curtain frame | 1 |
| 7 | T30657 | CURTAIN-dust (front)(70678) | 1 |
| 7 | T30667 | CURTAIN-dust (front)(80678) | 1 |
| 8 | T67195 | CLAMPSTRIP-curtain (front)(70678) | 1 |
| 8 | T67197 | CLAMPSTRIP-curtain (front)(80678) | 1 |
| 9 | T60607 | FRAME-curtain (front)(70678) | 1 |
| 9 | T60617 | FRAME-curtain (front)(80678) | 1 |
| 10 | T29305 | DEFLECTOR-leaf (right)(70678) | 1 |
| 10 | T29327 | DEFLECTOR-leaf (right)(80678) | 1 |
| 11 | T29325 | DEFLECTOR-leaf (left) | 1 |
| 12 | T30577 | CURTAIN-side | 1 |
| 13 | T60735 | FRAME-curtain (side) | 1 |
| 14 | T60535 | FRAME-curtain frame (side) | 1 |
| 15 | F64810 | CLAMPSTRIP-curtain (Top-side) | 1 |
| 15 | R04PB005 | MODEL 78 SERIES SWEEPER |
