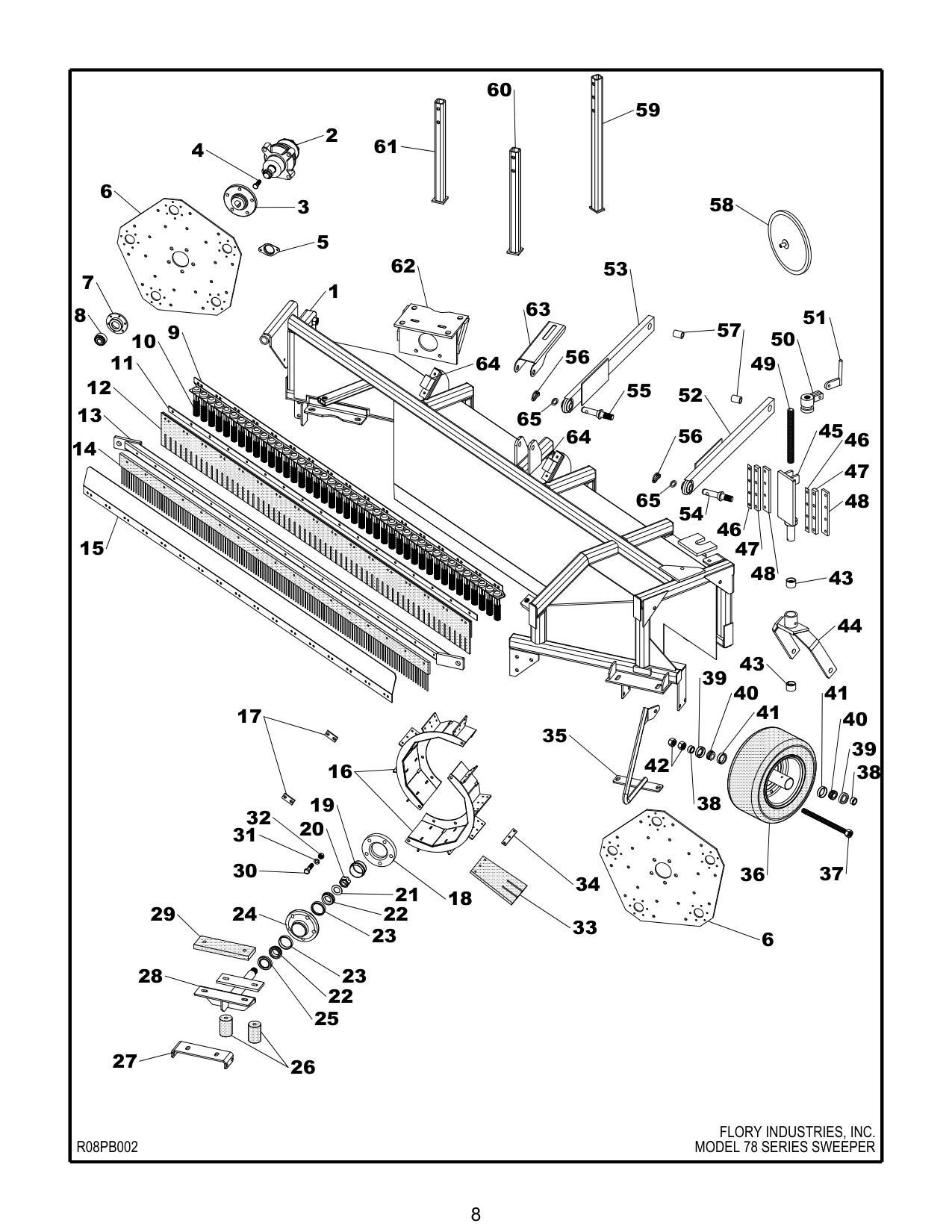

Figure 5 · Flory Flory 78 Series Sweeper

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
19 4159 CAP, hub dust 1
20 106248 NUT, spindle 1
21 1FW-F SAE FLATWASHER, spindle 1
22 LM67048 CONE, bearing 2
23 LM67010 CUP, bearing 2
24 FS-12842 HUB, reel (includes ref. nos. 21-25) 1
25 CR14975 SEAL, hub dust 1
26 J542515 MOUNT, rubber 2
27 T67707 BRACKET, rubber mount 1
28 T65015 SPINDLE, reel hub 1
29 TM3001 MOUNT, rubber 1
30 1/2X2-C USS BOLT, hub 5
31 1/2LW-C USS LOCKWASHER, hub 5
32 1/2N-C USS NUT, hub 5
33 TM3042 PADDLE, end 10
34 T6114 CLAMPSTRIP, paddle 10
35 T60305 DEFLECTOR, limb 1
36A TW1008 ASSEMBLY, wheel & tire (includes 36B & 36C) 1
36B 16X6508 TIRE, depth wheel (7678 & 8678) 1
36C WH0875 WHEEL, depth wheel (7678 & 8678) 1
37 TK1234 AXLE, depth wheel (7678 & 8678) 1
38 4315 SPACER, axle (7678 & 8678) 2
39 4247 SEAL, wheel (7678 & 8678) 2
40 LM11949 CONE, wheel bearing (7678 & 8678) 2
41 LM11910 CUP, wheel bearing (7678 & 8678) 2
42 3/4 JN-C NUT, axle (7678 & 8678) 2
43 H694 BUSHING, yoke (brass)(7678 & 8678) 2
44 T62457 YOKE, depth wheel (7678 & 8678) 1
45 T64427 SHAFT, depth wheel pivot (7678 & 8678) 1
46 T10717 SHIM, shaft guide (7678 & 8678) 2
47 T62047 GUIDE, shaft (7678 & 8678) 2
48 T62037 GUIDE, shaft (7678 & 8678) 2
49 T11427 ROD, depth wheel adjustment (7678 & 8678) 1
50 T11127 CRANK, depth wheel (7678 & 8678) 1
51 T10227 HANDLE, depth wheel crank (7678 & 8678) 1
52 T62157 ARM, lift (left) 1
53 T62137 ARM, lift (right) 1
54 FS-12449 PIN, lift (left) 1
55 12449 PIN, lift (right) 1
56 12623 PIN, linch (7/16”) 2
57 T1102 BUSHING, lift arm 2
57 R08PB002 MODEL 78 SERIES SWEEPER
