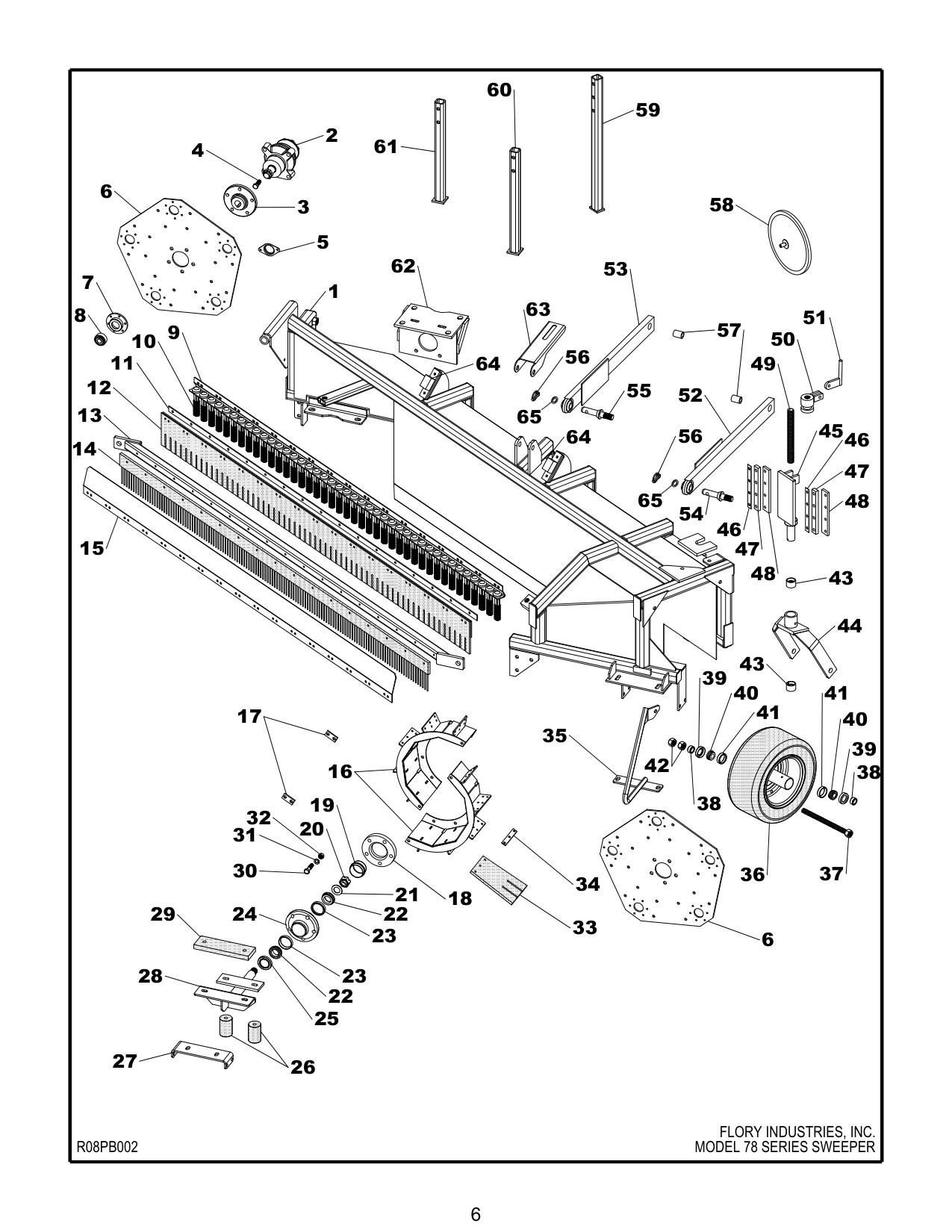

Figure 4 · Flory Flory 78 Series Sweeper
Tap a circled number on the diagram to identify the part.
7
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T60667 | FRAME, reel (6678) | 1 |
| 1 | T60677 | FRAME, reel (7678) | 1 |
| 1 | T60687 | FRAME, reel (8678) | 1 |
| 2A | HM1152 | MOTOR, reel drive | 1 |
| 2B | HM1152-K | SEAL KIT, motor | 1 |
| 2C | SF3152 | SHAFT, motor | 1 |
| 2D | 025113 | NUT, motor | 1 |
| 3 | 23399 | HUB, reel drive | 1 |
| 4A | 1/2X1-F | SAE BOLT, hub | 5 |
| 4B | 1/2LW-C | LOCK WASHER, hub | 5 |
| 5 | SE2689 | COVER, reel bearing (rear) | 10 |
| 6 | T61505 | PLATE, reel end | 2 |
| 7 | BR1690 | BEARING, reel tine bar | 10 |
| 8 | CV0690 | COVER, reel bearing (front) | 10 |
| 9 | T6072-R1 | HOLDER, reel finger (6678) | 5 |
| 9 | T6074-R1 | HOLDER, reel finger (7678) | 5 |
| 9 | T6076-R1 | HOLDER, reel finger (8678) | 5 |
| 10 | T3033 | FINGER, rubber (6678) | |
| 10 | T3033 | FINGER, rubber (7678) | |
| 10 | T3033 | FINGER, rubber (8678) | |
| 11 | T6102 | CLAMPSTRIP, tine bar (6678) | 5 |
| 11 | T6103 | CLAMPSTRIP, tine bar (7678) | 5 |
| 11 | T6104 | CLAMPSTRIP, tine bar (8678) | 5 |
| 12 | T3030 | SWEEP (6678) | 5 |
| 12 | T3031 | SWEEP (7678) | 5 |
| 12 | T3032 | SWEEP (8678) | 5 |
| 13 | T6081 | BAR, tine (6678) | 5 |
| 13 | T6085 | BAR, tine (7678) | 5 |
| 13 | TM6079 | BAR, tine (8678) | 5 |
| 14 | T3018 | TINE (6678) | 5 |
| 14 | T3019 | TINE (7678) | 5 |
| 14 | T3020 | TINE (8678) | 5 |
| 15 | T6091 | RISER, 6.5' tine bar 5" (6678) | 5 |
| 15 | T6093 | RISER, 7.5' tine bar 5" (7678) | 5 |
| 15 | T6098 | RISER, 8.5' tine bar 5" (8678) | 5 |
| 16 | T63027 | DRUM, paddle (half) | 2 |
| 17 | T64007 | BRACKET, paddle drum | 2 |
| 18 | T14205 | SPACER, hub and plate | 1 |
| 18 | R08PB002 | MODEL 78 SERIES SWEEPER | |
| 19 | 4159 | CAP, hub dust | 1 |
| 20 | 106248 | NUT, spindle | 1 |
| 21 | 1FW-F | SAE FLATWASHER, spindle | 1 |
| 22 | LM67048 | CONE, bearing | 2 |
| 23 | LM67010 | CUP, bearing | 2 |
| 24 | FS-12842 | HUB, reel (includes ref. nos. 21-25) | 1 |
| 25 | CR14975 | SEAL, hub dust | 1 |
| 26 | J542515 | MOUNT, rubber | 2 |
| 27 | T67707 | BRACKET, rubber mount | 1 |
| 28 | T65015 | SPINDLE, reel hub | 1 |
| 29 | TM3001 | MOUNT, rubber | 1 |
| 30 | 1/2X2-C | USS BOLT, hub | 5 |
| 31 | 1/2LW-C | USS LOCKWASHER, hub | 5 |
| 32 | 1/2N-C | USS NUT, hub | 5 |
| 33 | TM3042 | PADDLE, end | 10 |
| 34 | T6114 | CLAMPSTRIP, paddle | 10 |
| 35 | T60305 | DEFLECTOR, limb | 1 |
| 36A | TW1008 | ASSEMBLY, wheel & tire (includes 36B & 36C) | 1 |
| 36B | 16X6508 | TIRE, depth wheel (7678 & 8678) | 1 |
| 36C | WH0875 | WHEEL, depth wheel (7678 & 8678) | 1 |
| 37 | TK1234 | AXLE, depth wheel (7678 & 8678) | 1 |
| 38 | 4315 | SPACER, axle (7678 & 8678) | 2 |
| 39 | 4247 | SEAL, wheel (7678 & 8678) | 2 |
| 40 | LM11949 | CONE, wheel bearing (7678 & 8678) | 2 |
| 41 | LM11910 | CUP, wheel bearing (7678 & 8678) | 2 |
| 42 | 3/4 | JN-C NUT, axle (7678 & 8678) | 2 |
| 43 | H694 | BUSHING, yoke (brass)(7678 & 8678) | 2 |
| 44 | T62457 | YOKE, depth wheel (7678 & 8678) | 1 |
| 45 | T64427 | SHAFT, depth wheel pivot (7678 & 8678) | 1 |
| 46 | T10717 | SHIM, shaft guide (7678 & 8678) | 2 |
| 47 | T62047 | GUIDE, shaft (7678 & 8678) | 2 |
| 48 | T62037 | GUIDE, shaft (7678 & 8678) | 2 |
| 49 | T11427 | ROD, depth wheel adjustment (7678 & 8678) | 1 |
| 50 | T11127 | CRANK, depth wheel (7678 & 8678) | 1 |
| 51 | T10227 | HANDLE, depth wheel crank (7678 & 8678) | 1 |
| 52 | T62157 | ARM, lift (left) | 1 |
| 53 | T62137 | ARM, lift (right) | 1 |
| 54 | FS-12449 | PIN, lift (left) | 1 |
| 55 | 12449 | PIN, lift (right) | 1 |
| 56 | 12623 | PIN, linch (7/16”) | 2 |
| 57 | T1102 | BUSHING, lift arm | 2 |
| 57 | R08PB002 | MODEL 78 SERIES SWEEPER | |
| 58 | GL5077 | MIRROR | 1 |
| 59 | T69525 | STAND, reel support (left rear)(optional) | 1 |
| 60 | T69515 | STAND, reel support (left front)(optional) | 1 |
| 61 | T69505 | STAND, reel support (right rear)(optional) | 1 |
| 62 | T67137 | MOUNT, reel drive motor | 1 |
| 63 | T64009 | GUARD, top link (~s/n 4202) | 1 |
| 63 | T64006 | GUARD, top link (s/n 4205~) | 1 |
| 64 | T35005 | BUMPER, rubber | 2 |
| 65 | BU1002 | BUSHING, 7/8" X 1-3/8" machinery |
