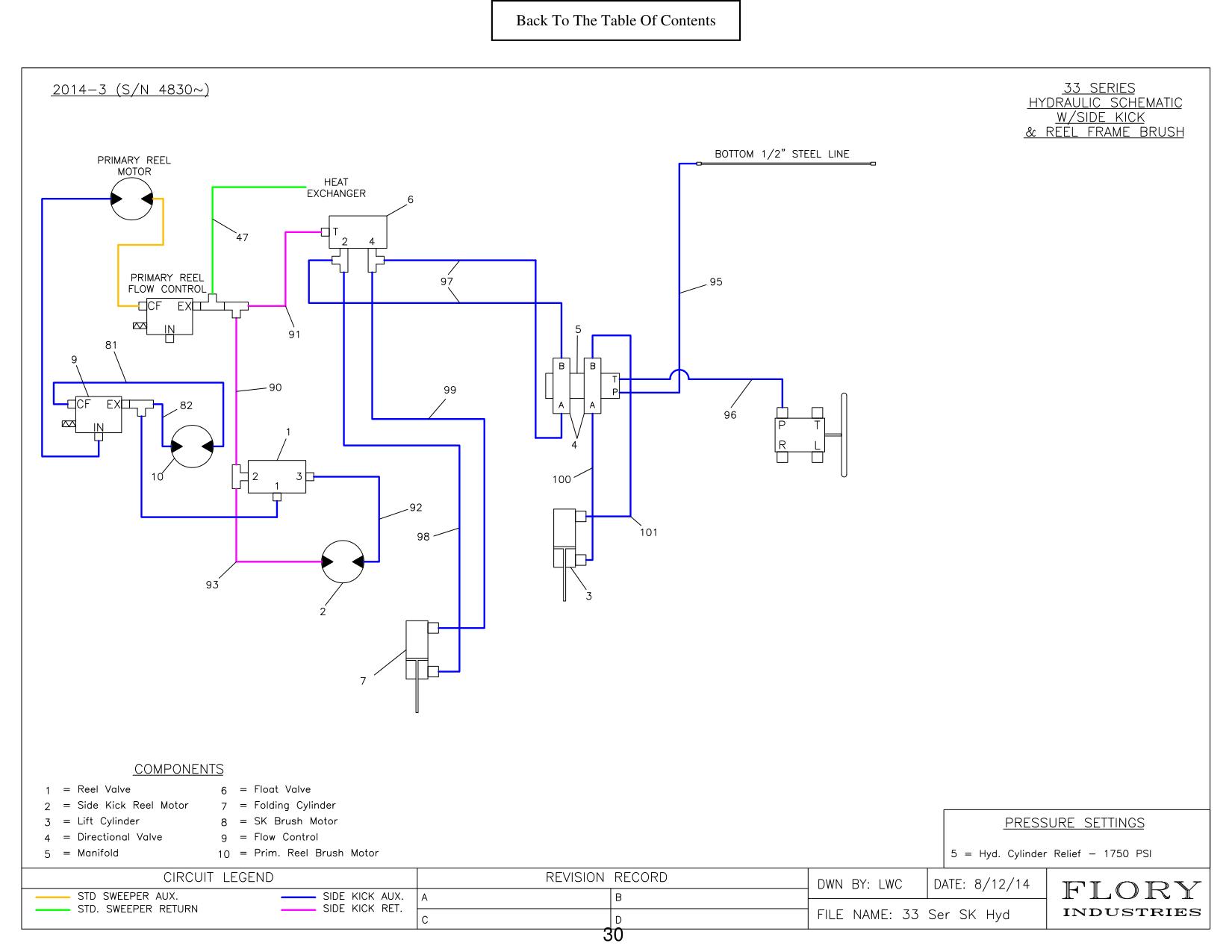

Figure 16 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | VL5077 | VALVE, reel | 1 |
| 1B | MF7077 | BODY, valve | 1 |
| 1C | ME1777 | COIL, 12v | 1 |
| 2A | HM1152 | MOTOR, reel | 1 |
| 2B | HM1152-K | SEAL KIT, motor | 1 |
| 2C | SF3152 | SHAFT, motor | 1 |
| 3A | 310DB | CYLINDER, lift | 1 |
| 3B | 1C4433 | SEAL KIT, cylinder | 1 |
| 4A | VL5090 | VALVE, directional control | 2 |
| 4B | ME1260 | COIL, valve | 2 |
| 5A | MF7090 | MANIFOLD | 1 |
| 5B | VL7090 | VALVE, relief | 1 |
| 6A | VL5177 | VALVE, float | 1 |
| 6B | MF7177 | BODY, line | 1 |
| 6C | ME1877 | COIL, 12v | 1 |
| 7A | HC2514 | CYLINDER, folding | 1 |
| 7B | 1C4433 | SEAL KIT, cylinder | 1 |
| 8A | HM1191 | MOTOR, hydraulic | 1 |
| 8B | HM2149-K | KIT, seal | 1 |
| 9A | RDRS195016P | VALVE, flow control | 1 |
| 9B | MK2190 | KIT, seal | 1 |
| 90 | HOSE, main F/C valve 'EX' tee to reel valve port '2' tee | 1 | |
| 91 | HOSE, main F/C valve 'EX' tee to 'T' port float valve | 1 | |
| 92 | HOSE, port '3' reel valve to 'R' port SK reel motor | 1 | |
| 94 | HOSE, port '1' reel valve to 'L' port main reel motor | 1 | |
| 95 | Use hose from 'P' port SCU to 'P' on manifold(Use 0303-6-6 union) | 1 | |
| 96 | HOSE, 'P' port SCU to 'T' on manifold | 1 | |
| 97 | HOSE, 'A' port fold valve to '4' float valve tee HOSE, 'B' port fold valve to '2' float valve tee | 1 | |
| 98 | HOSE, float valve '2' tee to rod end fold cylinder | 1 | |
| 99 | HOSE, float valve '4' tee to base end fold cylinder | 1 | |
| 100 | HOSE, lift valve 'A' to rod end lift cylinder | 1 | |
| 101 | HOSE, lift valve 'B' to base end lift cylinder | 1 | |
| 110 | HOSE, reel motor Lt. Port to flow control IN port | 1 | |
| 111 | HOSE, flow control CF port to brush motor Rt. port | 1 | |
| 112 | HOSE, brush motor Lt. Port to flow control EX port tee | 1 | |
| 113 | HOSE, '2' port tee on reel valve to S/K brush F/C 'EX' tee | 1 | |
| 113 | MODEL | 33 SERIES SIDE KICK |
