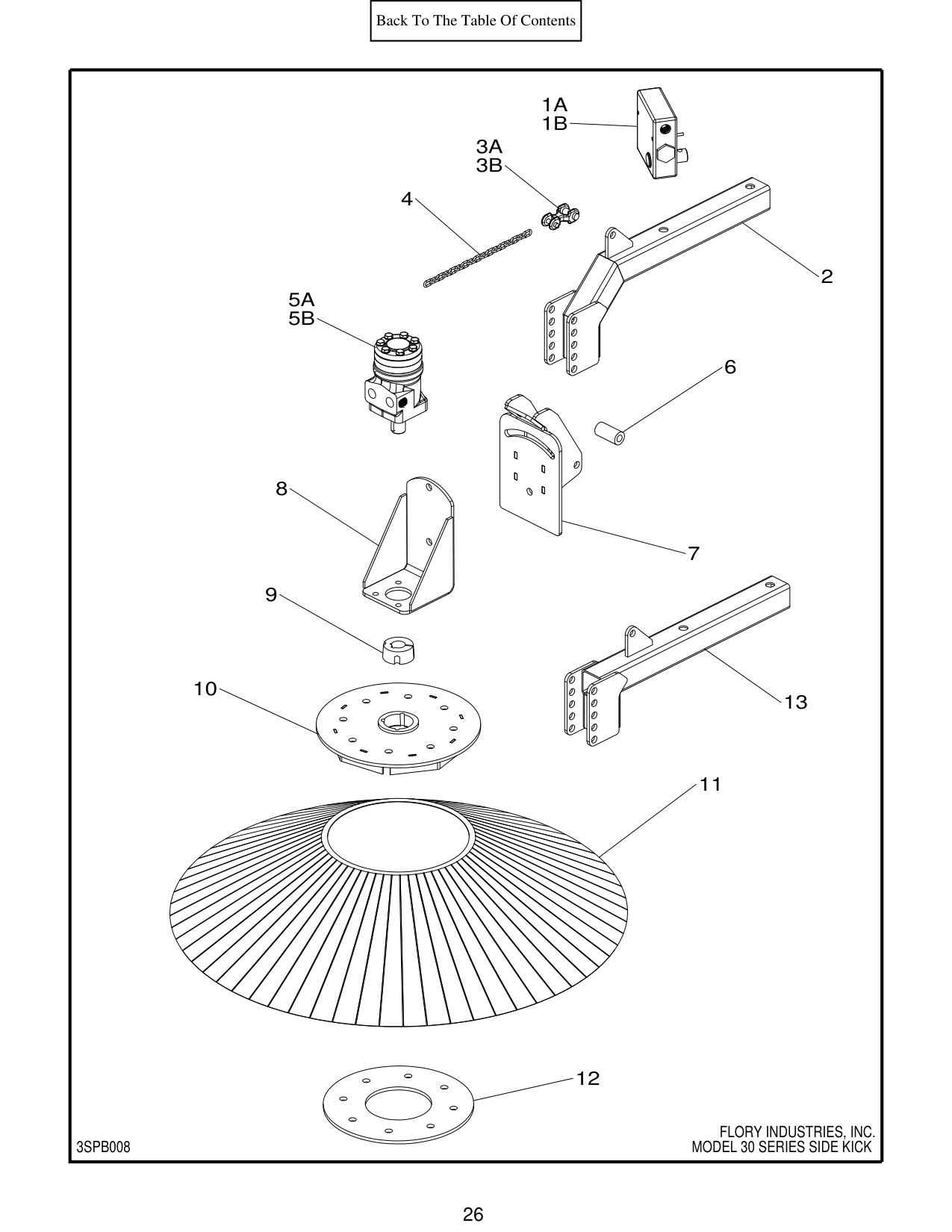

Figure 13 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | RDRS195016P | VALVE, flow control | 1 |
| 1B | MK2190 | KIT, seal | 1 |
| 2 | T69817 | ARM, brush (s/n ~4409) | 1 |
| 3A | PN4055 | CLEVIS, double | 1 |
| 3B | 87462 | PIN, clevis | 2 |
| 4 | CH2012 | CHAIN, 2/0 | 1 |
| 5A | HM1191 | MOTOR, hydraulic | 1 |
| 5B | HM2149-K | KIT, seal | 1 |
| 6 | C1906 | SPACER | 1 |
| 7 | T69737 | BRACKET, pitch | 1 |
| 8 | T69747 | MOUNT, motor | 1 |
| 9 | 1610100 | BUSHING | 1 |
| 10 | T69827 | PLATE, brush mount (top) | 1 |
| 11 | BH1036 | BRUSH | 2 |
| 12 | T69767 | PLATE, brush mount (bottom) | 1 |
| 13 | T69813 | ARM, brush (s/n 4410~) | 1 |
| 13 | 2103-8-8 | ADAPTER, hyd | 4 |
| 13 | 393T-8-8 | ADAPTER, hyd | 1 |
| 13 | PD38BTX | ADAPTER, test | 1 |
| 13 | 013T-8-8 | ADAPTER, hyd | 1 |
| 13 | 5/8 X 4-C | USS BOLT | 2 |
| 13 | 1/2 X 3-C | USS BOLT | 8 |
| 13 | 1/2 X 1-C | USS BOLT | 2 |
| 13 | 1/4 X 2-1/2-C | USS BOLT | 2 |
| 13 | 1/2LN-C | USS LOCKNUT | 13 |
| 13 | 1/4 X 5-C | USS BOLT | 2 |
| 13 | 3/8 X 1-C | USS BOLT | 4 |
| 13 | 1/4LN-C | USS LOCKNUT | 1 |
| 13 | 3/8LW-C | USS LOCKWASHER | 4 |
| 13 | 1/2 X 4-C | USS BOLT | 1 |
| 13 | 1/4FW-C | USS FLATWASHER | 2 |
| 13 | 1/4 X 1-C | USS BOLT | 1 |
| 13 | 1/2FW-C | USS FLATWASHER | 6 |
| 13 | 1/4LW-C | USS LOCKWASHER | 2 |
| 13 | 1/4N-C | USS NUT | 2 |
| 13 | MODEL | 33 SERIES SIDE KICK |
