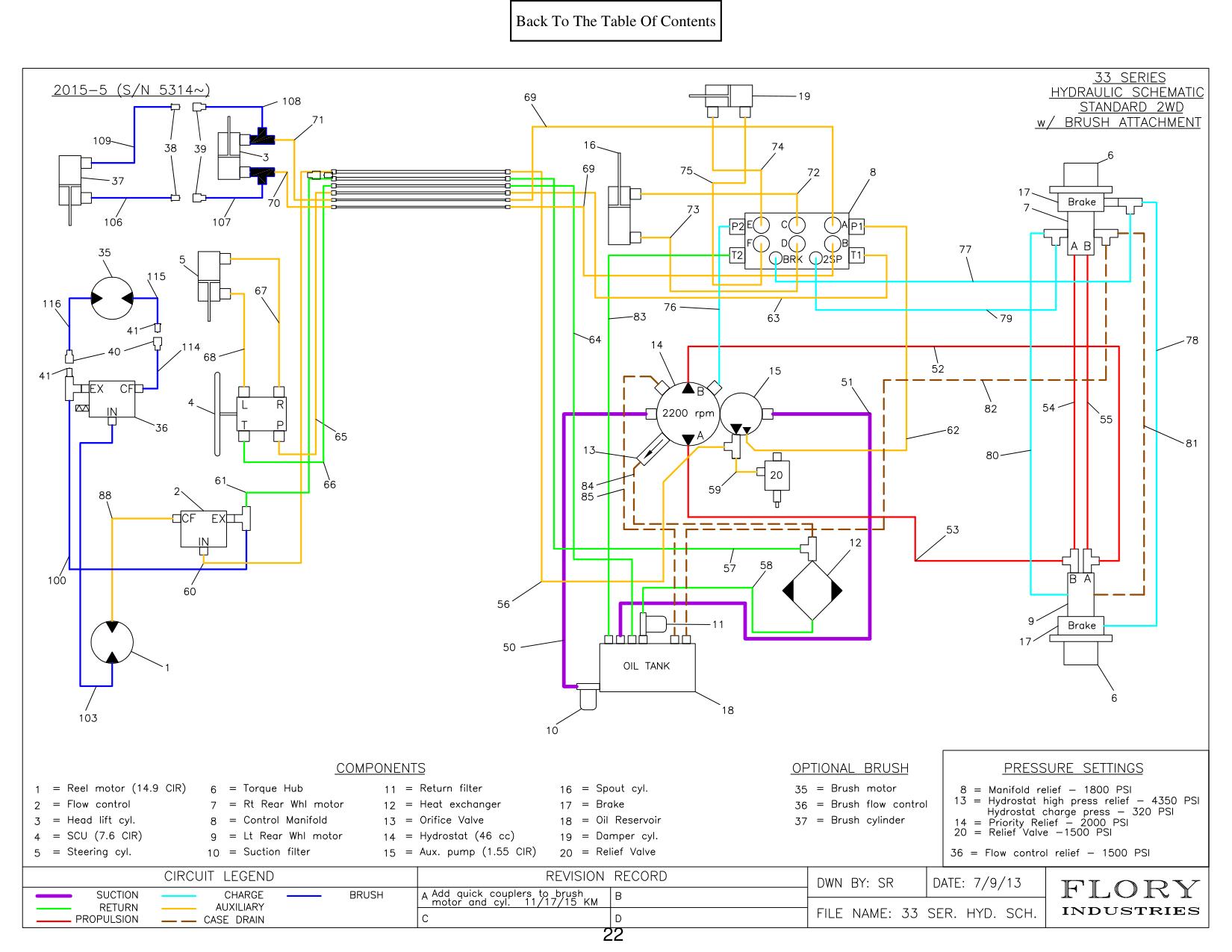

Figure 11 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 35 | HM1191 | MOTOR, hydraulic | 1 |
| 35 | HM2149-K | KIT, seal | 1 |
| 36 | RDRS195016P | VALVE, flow control | 1 |
| 36 | MK2190 | KIT, seal | 1 |
| 37 | WFC1504 | CYLINDER, hydraulic | 1 |
| 37 | LD108RK | SEAL KIT, cylinder | 1 |
| 38 | H3-63 | QUICK COUPLER, 3/8 male | 2 |
| 39 | H3-62 | QUICK COUPLER, 3/8 female | 2 |
| 40 | H4-62 | QUICK COUPLER, 1/2 female | 2 |
| 41 | H4-63 | QUICK COUPLER, 1/2 male | 2 |
| 100 | HOSE, brush flow ctrl 'EX' tee to reel flow ctrl 'EX' tee | 1 | |
| 101 | HOSE, brush flow ctrl 'CF' to brush motor Rt. Port | 1 | |
| 102 | HOSE, brush motor Lt. port to brush flow ctrl 'EX' | 1 | |
| 104 | HOSE, head lift cyl. Base tee to brush lift cyl. Rod end | 1 | |
| 105 | HOSE, brush lift cyl. Base end to hd lift cyl. Rod end tee | 1 | |
| 106 | HOSE, Brush lift cyl. Rod end to female quick connect | 1 | |
| 107 | HOSE, head lift cyl. Base end to male quick connect | 1 | |
| 108 | HOSE, head lift cyl. Rod end to male quick connect | 1 | |
| 109 | HOSE, brush lift cyl. Base end to female quick connect | 1 | |
| 114 | HOSE, brush F/C "CF" tee to male quick connect | 1 | |
| 115 | HOSE, brush motor left port to female quick connect | 1 | |
| 116 | HOSE, brush motor right port to F/C "EX" male quick connect | 1 | |
| 116 | MODEL | 33 SERIES SIDE KICK |
