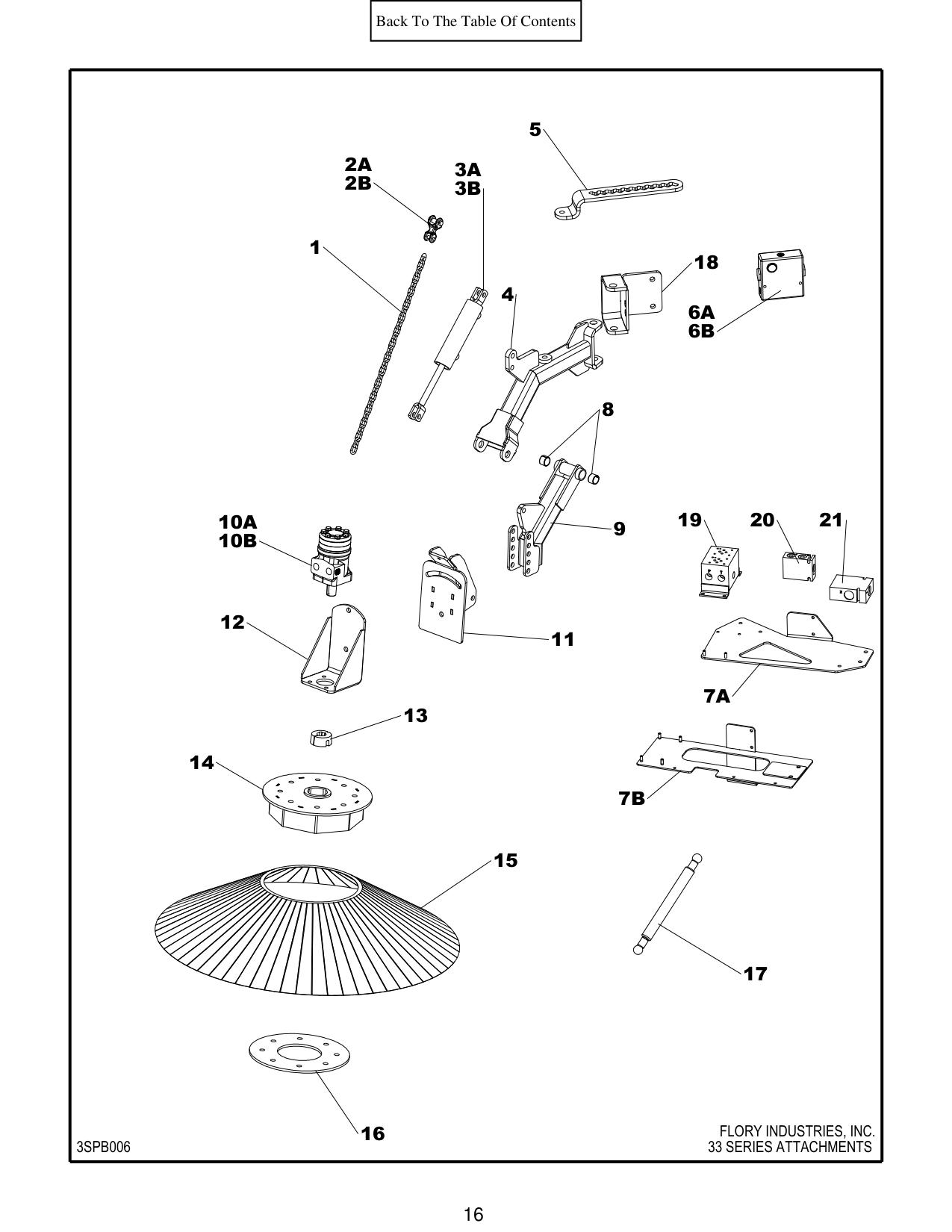

Figure 7 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CH2024 | CHAIN, 2/0 | 1 |
| 2A | PN4055 | CLEVIS, double | 1 |
| 2B | 87462 | PIN, clevis | 2 |
| 3A | WFC1504 | CYLINDER, hydraulic | 1 |
| 3B | LD108RK | SEAL KIT, cylinder | 1 |
| 4 | T69717 | ARM, swing (36" brush) | 1 |
| 4 | T69787 | ARM, swing (46" brush) | 1 |
| 5 | T69837 | BRACKET, adjustment | 1 |
| 6A | RDRS195016P | VALVE, flow control | 1 |
| 6B | MK2190 | KIT, seal | 1 |
| 7A | T67133 | MOUNT, valve (REPLACED BY T69303) | 1 |
| 7B | T69303 | MOUNT, valve | 1 |
| 8 | BU3091 | BUSHING, tension | 2 |
| 9 | T69727-R1 | ARM, lift | 1 |
| 10A | HM1191 | MOTOR, hydraulic | 1 |
| 10B | HM2149-K | KIT, seal | 1 |
| 11 | T69737 | BRACKET, pitch | 1 |
| 12 | T69747 | MOUNT, motor | 1 |
| 13 | 1610100 | BUSHING | 1 |
| 14 | T69757 | PLATE, brush mount (top) | 1 |
| 15 | BH1036 | BRUSH, 36" | 4 |
| 15 | BH1046 | BRUSH, 46" | |
| 16 | T69767 | PLATE, brush mount (bottom) | 1 |
| 17 | SG4018 | SPRING, gas | 1 |
| 18 | T69843 | BRACKET, brush mount (s/n 4535~) | 1 |
| 19 | MF7090 | MANIFOLD, hydraulic (cylinder valve) | 1 |
| 20 | MF7177 | MANIFOLD, line (float valve) | 1 |
| 21 | VL5077 | VALVE, solenoid (reel valve) | 1 |
| 21 | 2103-8-8 | ADAPTER, hyd | 3 |
| 21 | 0103-8-8 | ADAPTER, hyd | 1 |
| 21 | 393T-8-8 | ADAPTER, hyd | 1 |
| 21 | PD38BTX | ADAPTER, test | 1 |
| 21 | 013T-8-8 | ADAPTER, hyd | 1 |
| 21 | 063T-6-6 | ADAPTER, hyd | 2 |
| 21 | 2103-4-4 | ADAPTER, hyd | 2 |
| 21 | 3/4 X 5-C | USS BOLT | 1 |
| 21 | 3/4 X 2-C | USS BOLT | 2 |
| 21 | 1/2 X 3-1/2-C | USS BOLT | 9 |
| 21 | 1/2 X 1-1/2-C | USS BOLT | 5 |
| 21 | 5/16 X 1-C | USS BOLT | 1 |
| 21 | MODEL | 33 SERIES SIDE KICK |
