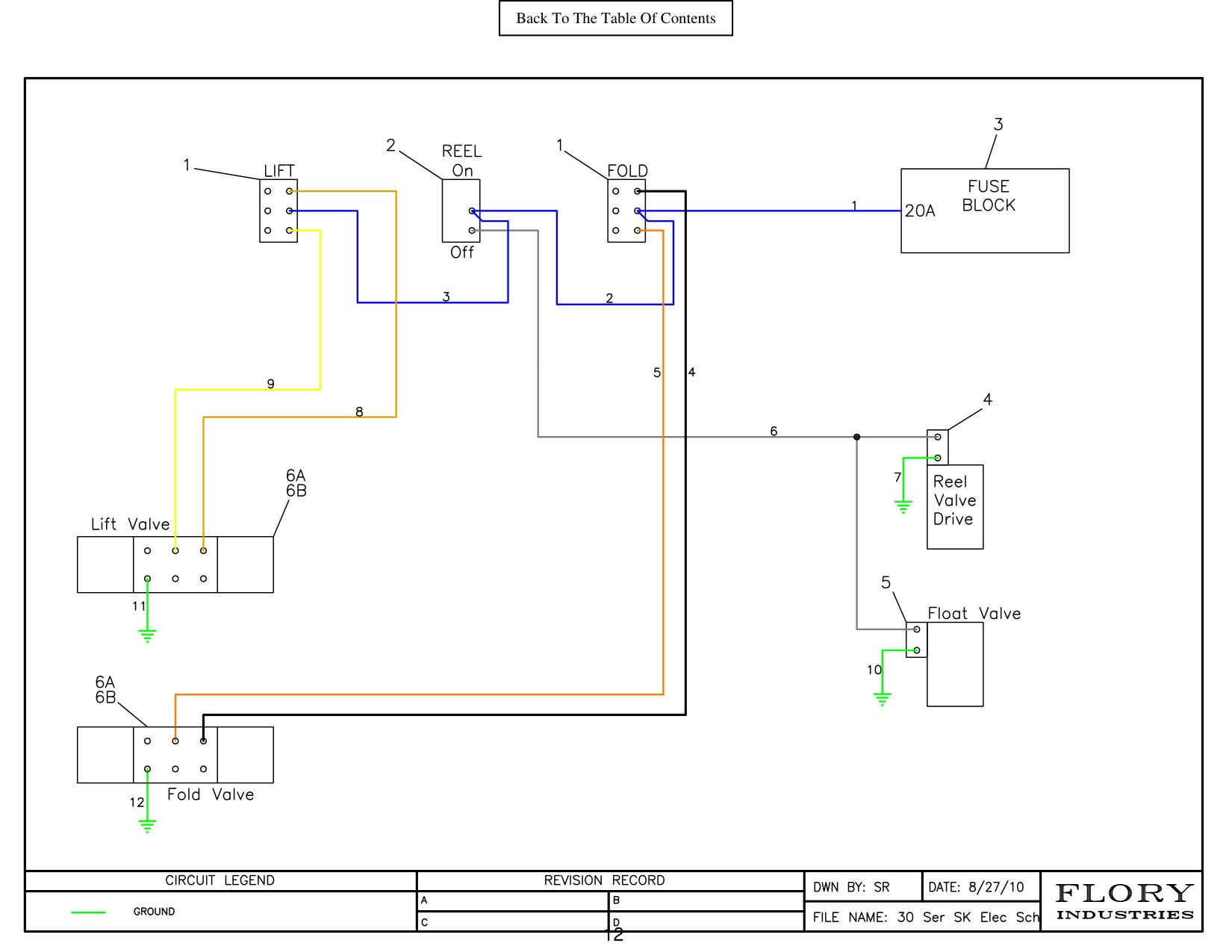

Figure 5 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | S208C | SWITCH, toggle | 2 |
| 2 | S2098 | SWITCH, toggle | 1 |
| 3 | ME3012 | BLOCK, fuse | 1 |
| 4 | ME1777 | COIL, reel valve | 1 |
| 5 | ME1877 | COIL, float valve | 1 |
| 6A | VL5090 | VALVE, directional control | 2 |
| 6B | ME1260 | COIL, valve | 2 |
| 6B | 3SPB004 | MODEL 33 SERIES SIDE KICK |
