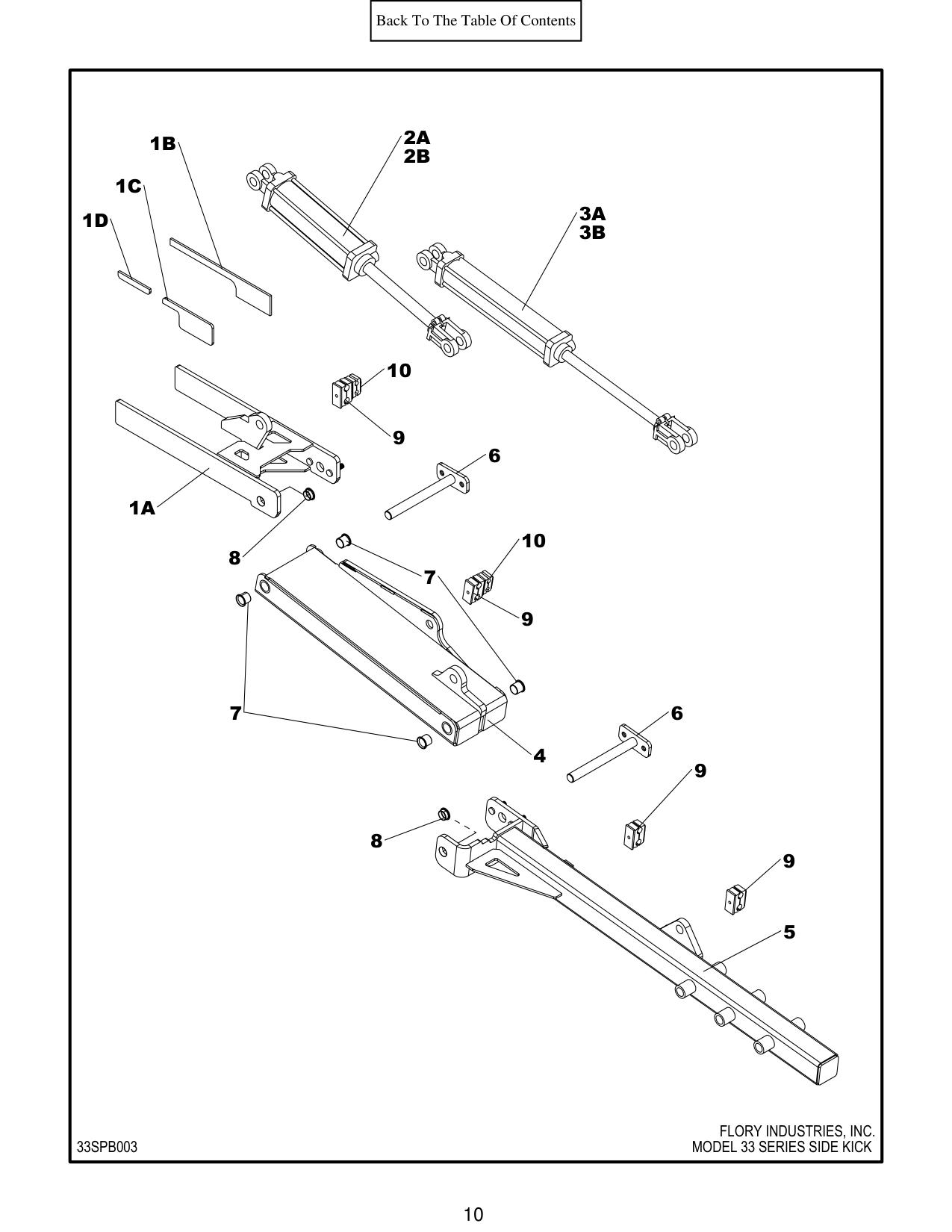

Figure 4 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | T69083 | FRAME, weld-on | 1 |
| 1B | T69083-006 | SPACER, Main Frame Mount-Back | 1 |
| 1C | T69083-007 | SPACER, Main Frame Mount-Front-L | 1 |
| 1D | T69083-008 | SPACER, Main Frame Mount-Front-R | 1 |
| 2A | 310DB | CYLINDER, lift | 1 |
| 2B | 1C4433 | SEAL KIT, cylinder | 1 |
| 3A | HC2514 | CYLINDER, folding | 1 |
| 3B | 1C4433 | SEAL KIT, cylinder | 1 |
| 4 | T69283 | H-FRAME | 1 |
| 5 | T69383 | T-FRAME | 1 |
| 6 | T19203 | PIN | 2 |
| 7 | BU0316 | BUSHING, 1" I.D. x 1 1/8" O.D. x 1" DU | 4 |
| 8 | BU0308 | BUSHING, 1" I.D. x 1 1/8" O.D. x 1/2" DU | 2 |
| 9 | CA6012-3 | CLAMP, hydraulic hose (3/4") | 4 |
| 10 | CA6008-3 | CLAMP, hydraulic hose (1/2") | 3 |
| 10 | 33SPB003 | MODEL 33 SERIES SIDE KICK |
