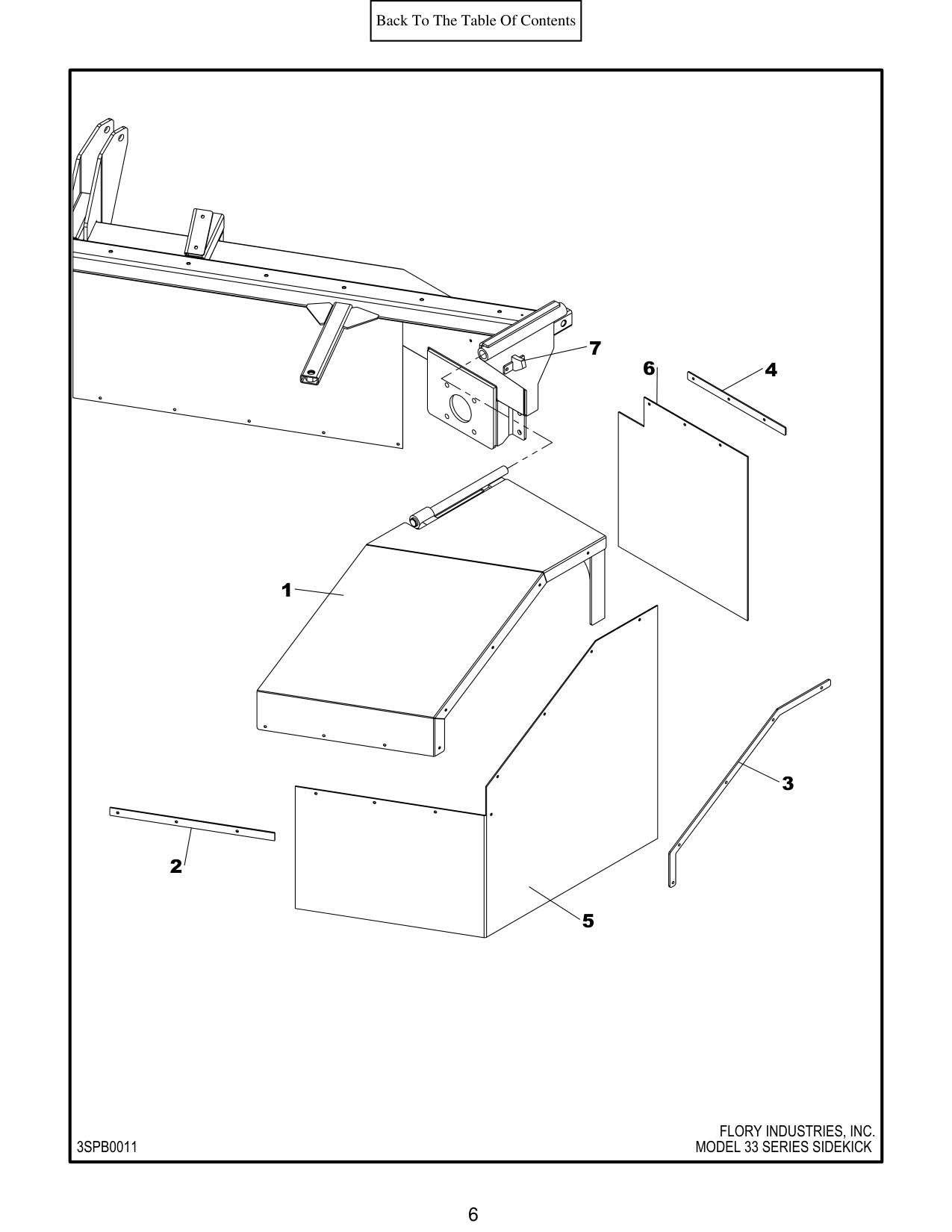

Figure 2 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T61133 | CHUTE, | 1 |
| 2 | T60543 | CLAMPSTRIP, front | 1 |
| 3 | T60553 | CLAMPSTRIP, side | 1 |
| 4 | T60563 | CLAMPSTRIP, back | 1 |
| 5 | T30543 | CURTAIN, front and side | 1 |
| 6 | T30553 | CURTAIN, back | 1 |
| 7 | T61033 | CHUTE, catch | 1 |
| 7 | 3SPB011 | MODEL 33 SERIES SIDE KICK |
