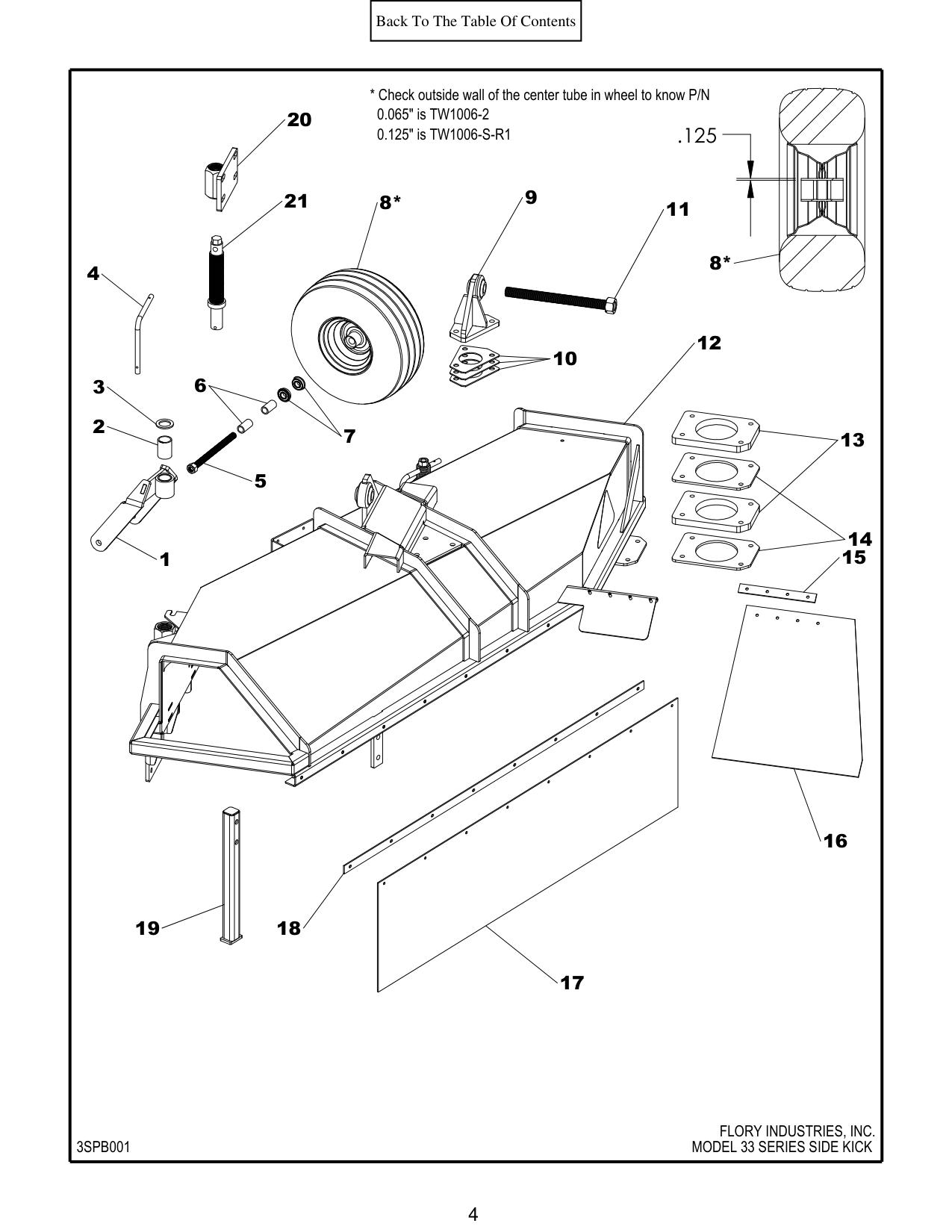

Figure 1 · Flory Flory 33 Series Sweeper

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 T69887 YOKE, depth wheel 2
2 BU3108 BUSHING, yoke 2
3 BU1210 BUSHING, machine 2
4 T69127 HANDLE, adjustment 2
5 T19277 BOLT, axle 2
6 T19777 SPACER, wheel 4
7A BR1977 BEARING, wheel 4
7B BR1978 BEARING, wheel 4
8A TW1006-2 TIRE & WHEEL ASSEMBLY (15 X 6.00-6) 2
8B TW1006-2-R1 TIRE & WHEEL ASSEMBLY (15 X 6.00-6) 2
9 T69353 MOUNT, lift 1
10 T69553 SPACER, lift mount
11 T19093 BOLT, lift 1
12 T69783 FRAME, reel (s/n 4410~) 1
13 T39177 SPACER, rubber 2
14 T69707 SPACER 2
15 T61055 CLAMPSTRIP, nut deflector 1
16 T30555 DEFLECTOR, nut 1
17 T39777 CURTAIN, bottom 1
18 T69287 CLAMPSTRIP, bottom curtain 1
19 T69677 STAND, support 1
20 T64423 MOUNT, depth wheel adjustment (s/n 4410~) 2
21 T59293-R1 SHAFT, yoke pivot (s/n 4410~) 2
21 3SPB001 MODEL 33 SERIES SIDE KICK
