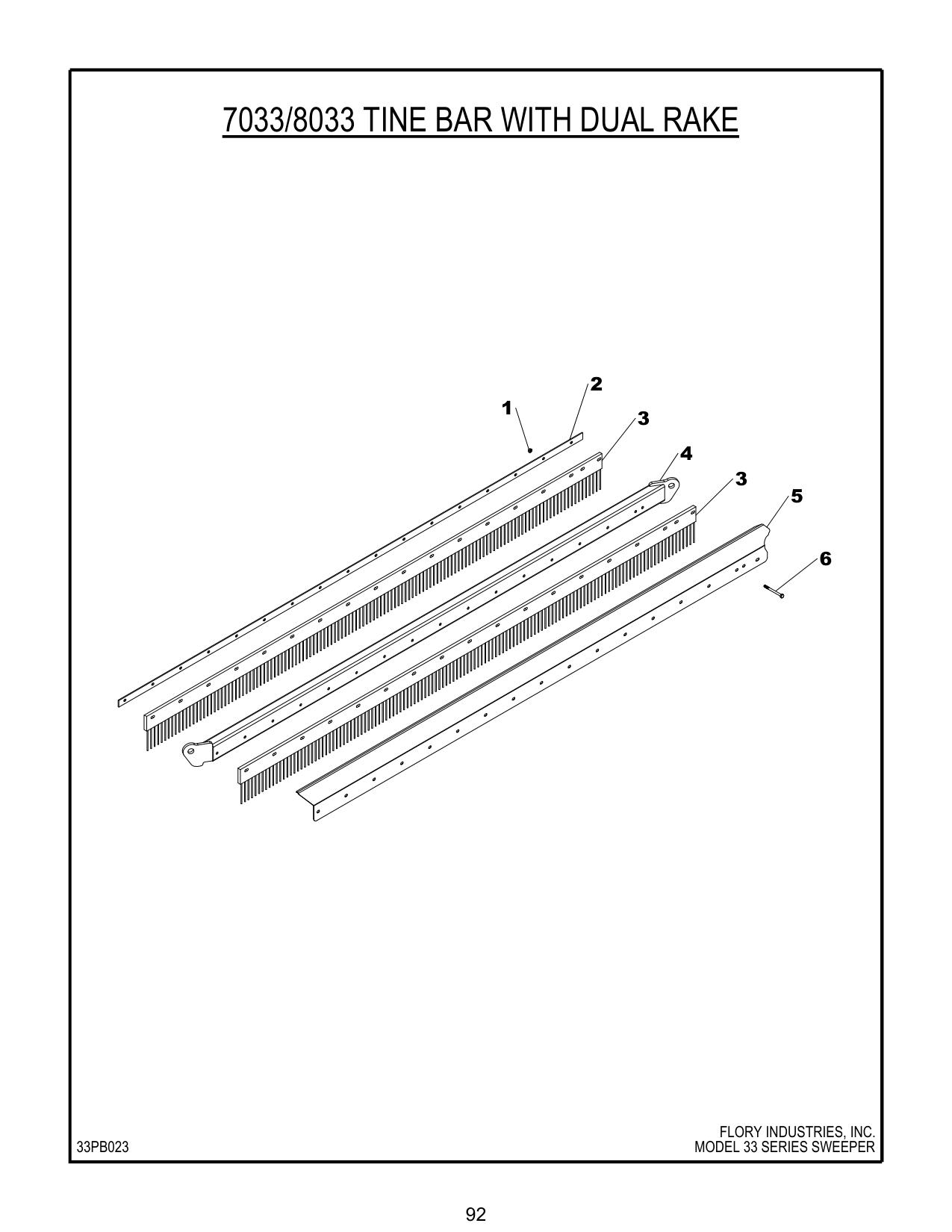

Figure 77 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 7033/8033 | TINE BAR WITH DUAL RAKE | ||
| 1 | 1/4LN-C | LOCK NUT (7033) | 16 |
| 1 | LOCK | NUT (8033) | 19 |
| 2 | T61073 | CLAMP, 7' tine bar (7033) | 5 |
| 2 | T61083 | CLAMP, 8' tine bar (8033) | 5 |
| 3 | T3019-33MOD | TINE, 7' (7033) | 10 |
| 3 | T3020-33MOD | TINE, 8' (8033) | 10 |
| 4 | T62973 | TINE, 7' bar (7033) | 5 |
| 4 | T62983 | TINE, 8' bar (8033) | 5 |
| 5 | T63973 | RISER, 7' tine bar (7033) | 5 |
| 5 | T63983 | RISER, 8' tine bar (8033) | 5 |
| 6 | 1/4 X 3-C | BOLT (7033) | 16 |
| 6 | BOLT | (8033) | 19 |
| 6 | 33PB023 | MODEL 33 SERIES SWEEPER |
