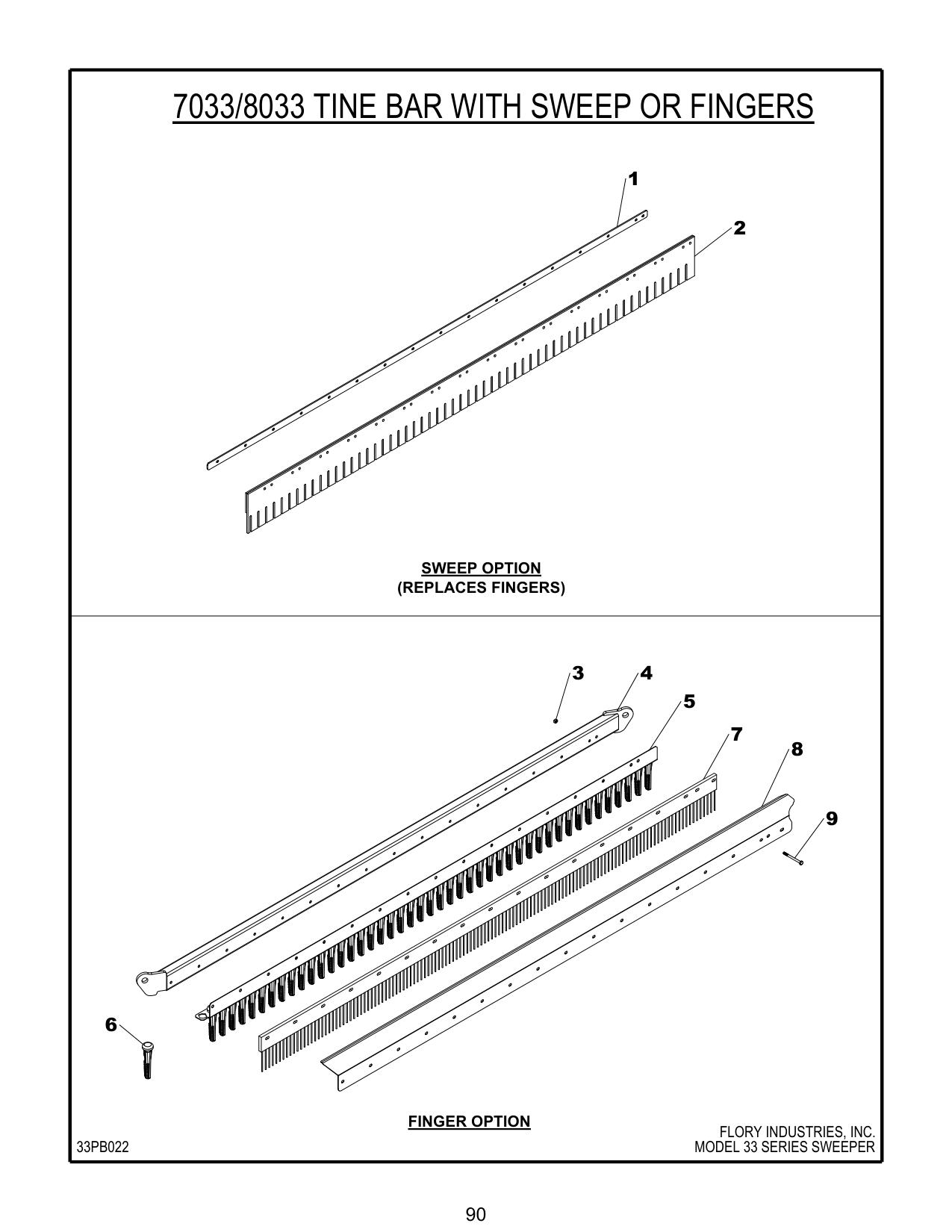

Figure 76 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 7033/8033 | TINE BAR WITH SWEEP OR FINGERS | ||
| 1 | T61073 | CLAMP, 7' tine bar (7033)(optional) | 5 |
| 1 | T61083 | CLAMP, 8' tine bar (8033)(optional) | 5 |
| 2 | T3032-33MOD | SWEEP, 7' tine bar (7033)(optional) | 5 |
| 2 | T3032-33MOD | SWEEP, 8' tine bar (8033)(optional) | 5 |
| 3 | 1/4LN-C | NUT (7033) | 16 |
| 3 | NUT | (8033) | 19 |
| 4 | T62973 | TINE, 7' bar (7033) | 5 |
| 4 | T62983 | TINE, 8' bar (8033) | 5 |
| 5 | T64973 | HOLDER, finger 7' (7033) | 5 |
| 5 | T64983 | HOLDER, finger 8' (8033) | 5 |
| 6 | T3033 | FINGER, rubber (7033) | |
| 6 | T3033 | FINGER, rubber (8033) | |
| 7 | T3019-33MOD | TINE, 7' (7033) | 5 |
| 7 | T3020-33MOD | TINE, 8' (7033) | 5 |
| 8 | T63973 | RISER, 7' tine bar (7033) | 5 |
| 8 | T63983 | RISER, 8' tine bar (8033) | 5 |
| 9 | 1/4 X 2-1/2-C | BOLT (7033) (2.5"Long for FINGER OPTION) | 16 |
| 9 | BOLT | (8033)(2.5" Long for FINGER OPTION) | 19 |
| 9 | 1/4 X 3-C | BOLT (7033)(3" Long for SWEEP OPTION) | 16 |
| 9 | BOLT | (8033)(3" Long for SWEEP OPTION) | 19 |
| 9 | 33PB022 | MODEL 33 SERIES SWEEPER |
