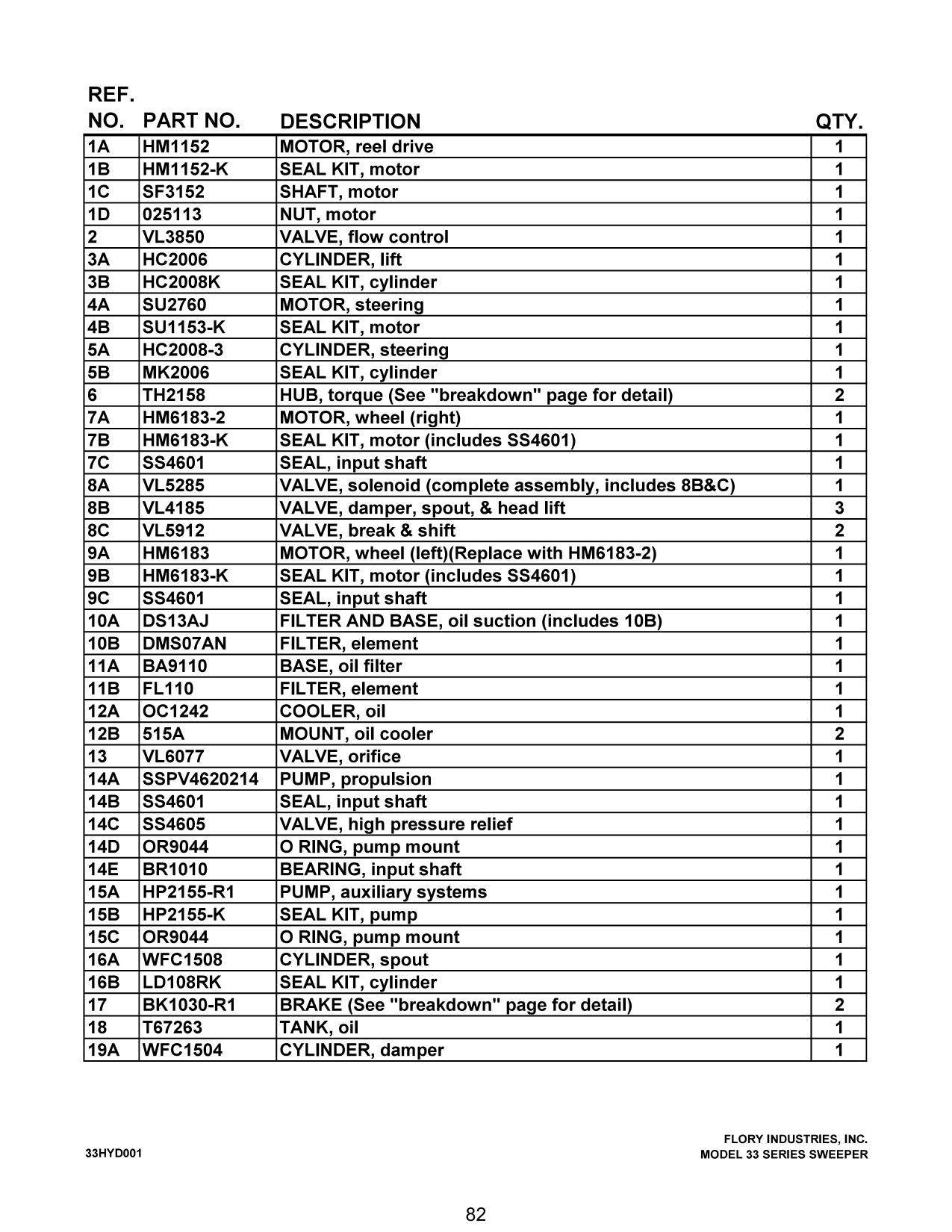

Figure 70 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 19B | LD108RK | SEAL KIT, cylinder | 1 |
| 20 | VL7200 | VALVE, relief | 1 |
| 20 | HOSE | LIST | |
| 50 | HOSE, suction filter to hydrostat inlet | 1 | |
| 51 | HOSE, tank to gear pump inlet | 1 | |
| 52 | HOSE, hydrostat port 'B' to Lt motor port 'A' | 1 | |
| 53 | HOSE, hydrostat port 'A' to Lt motor port 'B' | 1 | |
| 54 | HOSE, Lt motor port 'B' to Rt motor port 'A' | 1 | |
| 55 | HOSE, Lt motor port 'A' to Rt motor port 'B' | 1 | |
| 56 | HOSE, gear pump main port to top 1/2" steel line | 1 | |
| 57 | HOSE, bottom 1/2" steel line to oil cooler rt. side tee | 1 | |
| 58 | HOSE, oil cooler left side to return filter | 1 | |
| 59 | HOSE, gear pump main port tee to relief valve port 1 | 1 | |
| 60 | HOSE, top 1/2" steel line to flow control 'IN' | 1 | |
| 61 | HOSE, flow control 'EX' to bottom 1/2" steel ine | 1 | |
| 62 | HOSE, gear pump priority port to control man. port 'P1' | 1 | |
| 63 | HOSE, control man.port 'T1' to bottom 3/8" steel line | 1 | |
| 64 | HOSE, top 3/8" steel line to tank bottom rear port | 1 | |
| 65 | HOSE, bottom 3/8" steel line to SCU port 'P' | 1 | |
| 66 | HOSE, SCU port 'T' to top 3/8" steel line | 1 | |
| 67 | HOSE, SCU port 'R' to steering cylinder base end | 1 | |
| 68 | HOSE, SCU port 'L' to cylinder rod end | 1 | |
| 69 | HOSE, control manifold ports 'A' & 'B' to 1/4" steel lines | 2 | |
| 70 | HOSE, bott. 1/4" steel line to head lift cylinder base end | 1 | |
| 71 | HOSE, head lift cylinder rod end to top 1/4" steel line | 1 | |
| 72 | HOSE, control man. port 'C' to spout cylinder rod end | 1 | |
| 73 | HOSE, control man. port 'D' to spout cylinder base end | 1 | |
| 74 | HOSE, control man. port 'E' to damper cylinder rod end | 1 | |
| 75 | HOSE, control man. port 'F' to damper cyl. base end | 1 | |
| 76 | HOSE, hydrostat charge port to control man. port 'P2' | 1 | |
| 77 | HOSE, control manifold port 'BRK' to right brake tee | 1 | |
| 78 | HOSE, right brake tee to left brake | 1 | |
| 79 | HOSE, control manifold port '2SP' to right shift port tee | 1 | |
| 80 | HOSE, right shift port tee to left shift port | 1 | |
| 81 | HOSE, left motor case port to right motor case port tee | 1 | |
| 82 | HOSE, right motor case port to tank bottom front port tee | 1 | |
| 83 | HOSE, control man. port 'T2' to tank bottom front port | 1 | |
| 84 | HOSE, hydro.orifice valve to heat exchanger right side | 1 | |
| 85 | HOSE, hydrostat case drain port to tank rear port | 1 | |
| 86 | HOSE, Control manifold port 'T2' to tank bottom front tee | 1 | |
| 87 | HOSE, Reel motor left port to flow control 'EX' tee | 1 | |
| 88 | HOSE, Flow control 'CF' to reel motor right port | 1 | |
| 88 | 33HYD001 | MODEL 33 SERIES SWEEPER |
