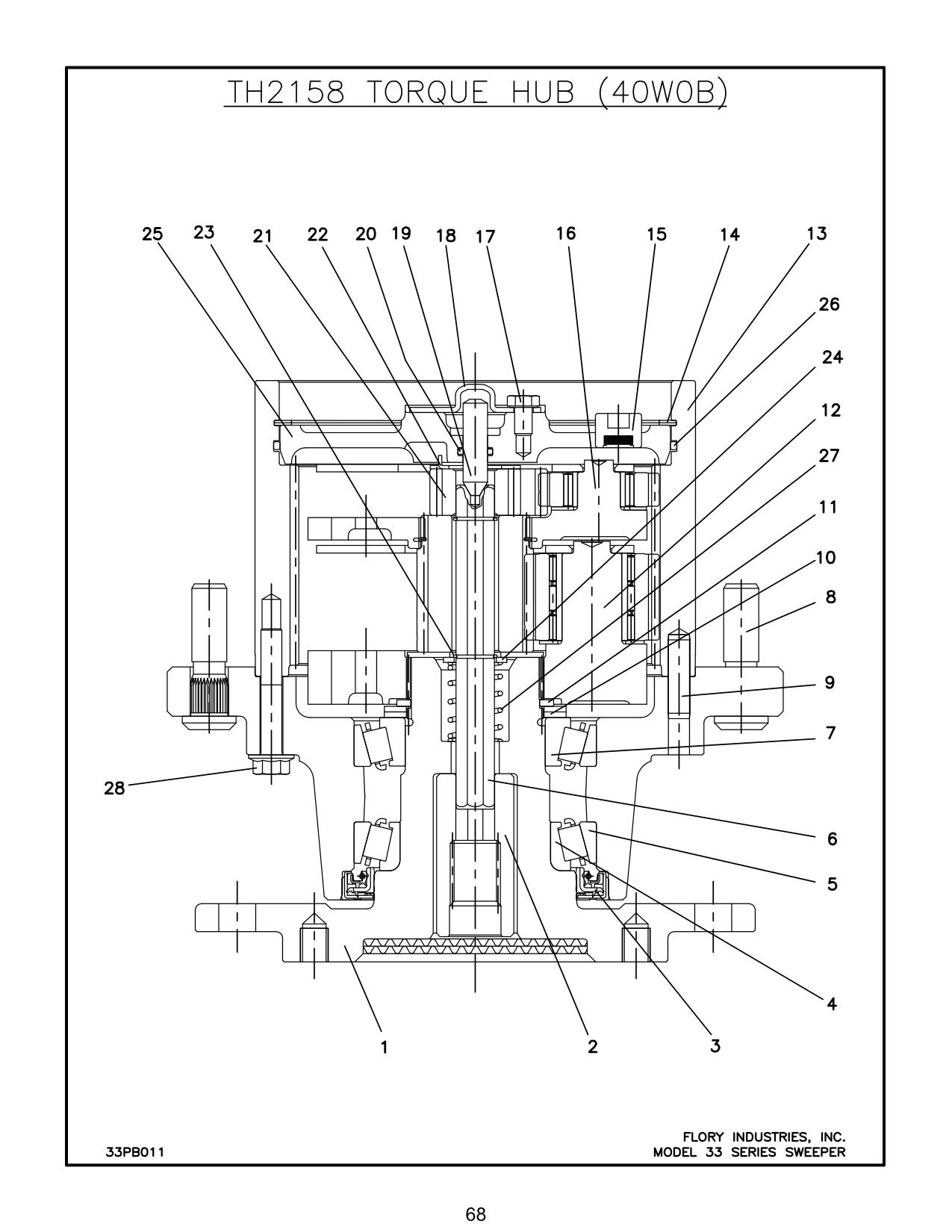

Figure 57 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | SN4078 | SPINDLE | 1 |
| 2 | CP4009 | COUPLER | 1 |
| 3 | SL4078 | SEAL-oil | 1 |
| 4 | BR4310 | CONE-bearing | 1 |
| 5 | BR3310 | CUP-bearing | 2 |
| 6 | SF4030 | SHAFT-input | 1 |
| 7 | BR4410 | CONE-bearing | 1 |
| 8 | BT4078 | BOLT-wheel | 9 |
| 9 | PN1110 | PIN-coiled spring | 4 |
| 10 | BU7310 | WASHER-thrust | 1 |
| 11 | RN1209 | RING-retaining | 1 |
| 12 | HG4230 | CARRIER-secondary | 1 |
| 13 | GR4030 | GEAR-ring | 1 |
| 14 | RN1110 | RING-retainer | 1 |
| 15 | PG4010 | PLUG-magnetic | 1 |
| 16 | HG4130 | CARRIER-primary | 1 |
| 17 | BT4110 | BOLT | 2 |
| 18 | CV4110 | COVER-disengage | 1 |
| 19 | CT7010 | PLUNGER-disengage | 1 |
| 20 | OR4139 | O RING | 1 |
| 21 | GR4110 | GEAR-sun | 1 |
| 22 | WS5310 | WASHER-thrust | 1 |
| 23 | RN1210 | RING-retainer | 2 |
| 24 | WS5210 | WASHER-thrust | 1 |
| 25 | CV4010 | COVER | 1 |
| 26 | OR4078 | O RING | 1 |
| 27 | SG1110 | SPRING-disengage | 1 |
| 28 | BT4210 | BOLT | 6 |
| 28 | 33PB011 | MODEL 33 SERIES SWEEPER |
