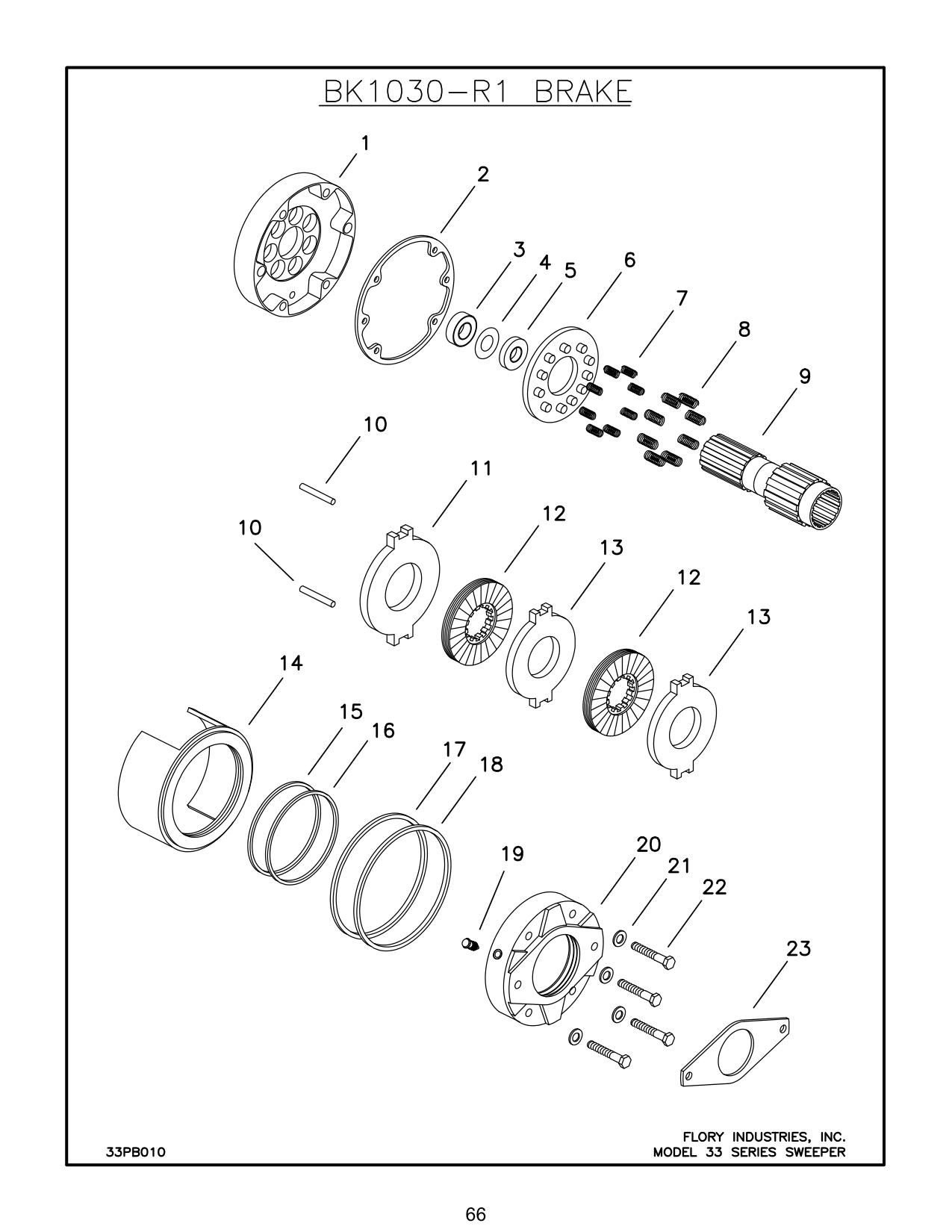

Figure 56 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HG1075 | HOUSING | 1 |
| 2 | GS1075 | GASKET, housing | 1 |
| 3 | 34574 | BEARING, ball | 1 |
| 4 | RN1075 | RING, retaining | 1 |
| 5 | 37144 | SEAL | 1 |
| 6 | RN8075 | RETAINER, spring | 1 |
| 7 | 28962 | SPRING, compression (small) | 9 |
| 8 | 28963 | SPRING, compression (large) | 8 |
| 9 | SF1110 | SHAFT, splined | 1 |
| 10 | PN8075 | PIN, torque | 2 |
| 11 | DC1075 | DISC, primary | 1 |
| 12 | DC1175 | DISC, rotating | 4 |
| 13 | DC1275 | DISC, stationary | 4 |
| 14 | PS1075 | PISTON | 1 |
| 15 | 27967 | RING, backup | 1 |
| 16 | 27808 | O RING | 1 |
| 17 | 27966 | RING, backup | 1 |
| 18 | 27777 | O RING | 1 |
| 19 | 29035 | SCREW, bleeder | 1 |
| 20 | DC1330 | PLATE, power | 1 |
| 21 | WS8075 | WASHER | 4 |
| 22 | BT1075 | BOLT | 4 |
| 23 | 28426 | GASKET | 1 |
| 23 | 33PB010 | MODEL 33 SERIES SWEEPER |
