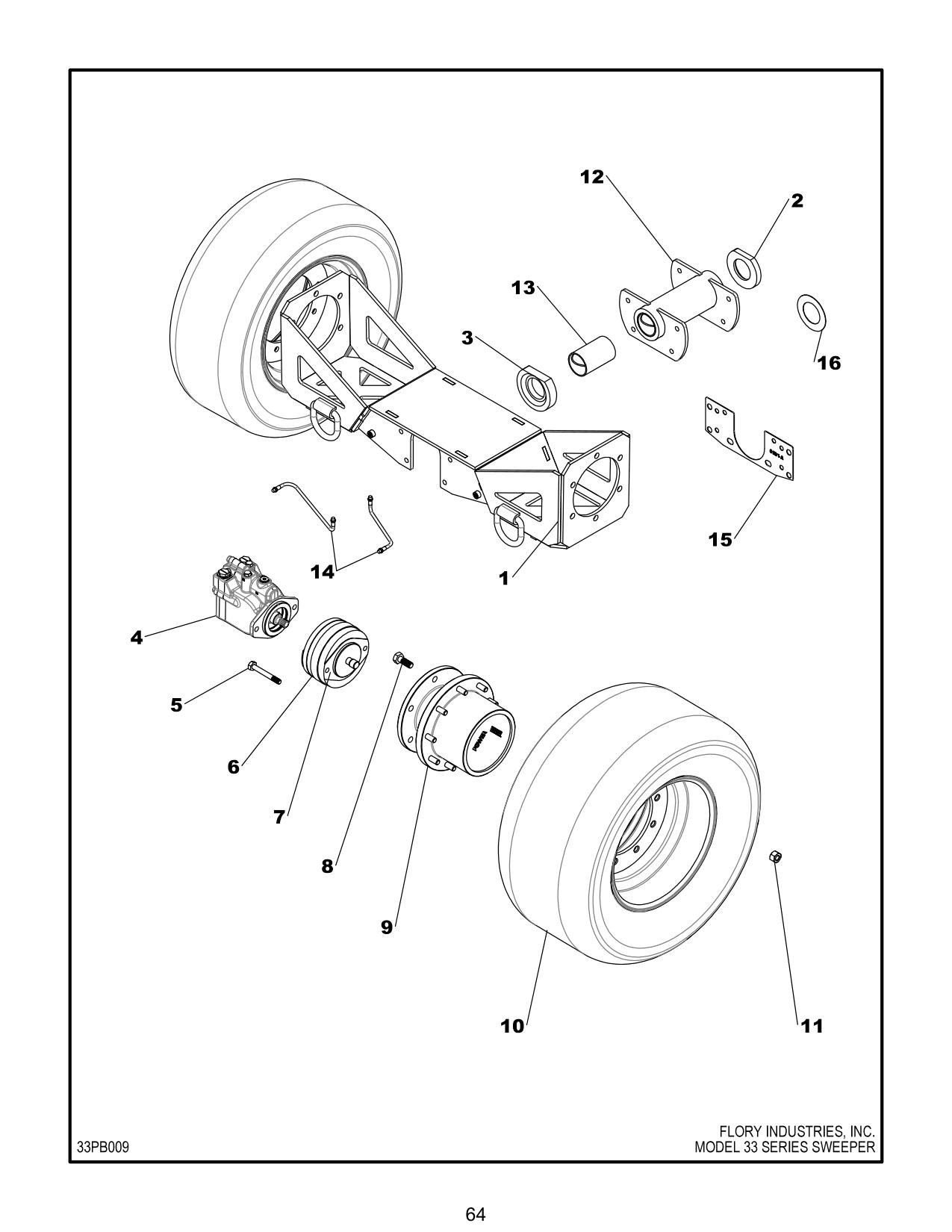

Figure 55 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T66193 | FRAME, rear axle | 1 |
| 2 | T14053 | WASHER, thrust (front) | 1 |
| 3 | T14063 | WASHER, thrust (rear) | 1 |
| 4A | HM6183 | MOTOR, wheel (left)(Replace with HM6183-2) | 1 |
| 4A | HM6183-2 | MOTOR, wheel (right) | 1 |
| 4B | HM6183-K | SEAL KIT, wheel motor (includes SS4601) | 1 |
| 4C | SS4601 | SEAL, input shaft | 1 |
| 5 | 1/2X4-1/2-C | USS BOLT, wheel motor through brake to torque hub | 4 |
| 6 | BK1030-R1 | BRAKE | 2 |
| 7 | 28426 | GASKET | 1 |
| 8 | 5/8X1-1/2-C | USS BOLT, torque hub to frame | 12 |
| 9 | TH2158 | TORQUE HUB | 2 |
| 10A | TW2150 | ASSEMBLY, tire and wheel (includes 10B & 10C) | 2 |
| 10B | 29X140015 | TIRE, rear | 2 |
| 10C | WH1578 | WHEEL, rear | 2 |
| 10D | TW2150-3-L | ASSEMBLY, left traction tire/wheel (inc. 10E & 10F) | 1 |
| 10D | TW2150-3-R | ASSEMBLY, right traction tire/wheel (inc. 10E & 10F) | 1 |
| 10E | 29X125015T | TIRE, traction, rear | 2 |
| 10F | WH1578 | WHEEL, rear | 2 |
| 11 | NT1009 | NUT, lug | 18 |
| 12 | T10213 | TUBE, oscillation | 1 |
| 13 | T13029 | BUSHING, oscillation tube (sn ~5165) | 4 |
| 13 | BU3133 | BUSHING, oscillation tube (sn 5208~) | 2 |
| 14 | HS0018 | LINE, lube | 2 |
| 15 | V1430 | SHIM, rear axle | |
| 16 | T10103 | SHIM, rear axle | |
| 16 | 33PB009 | MODEL 33 SERIES SWEEPER |
