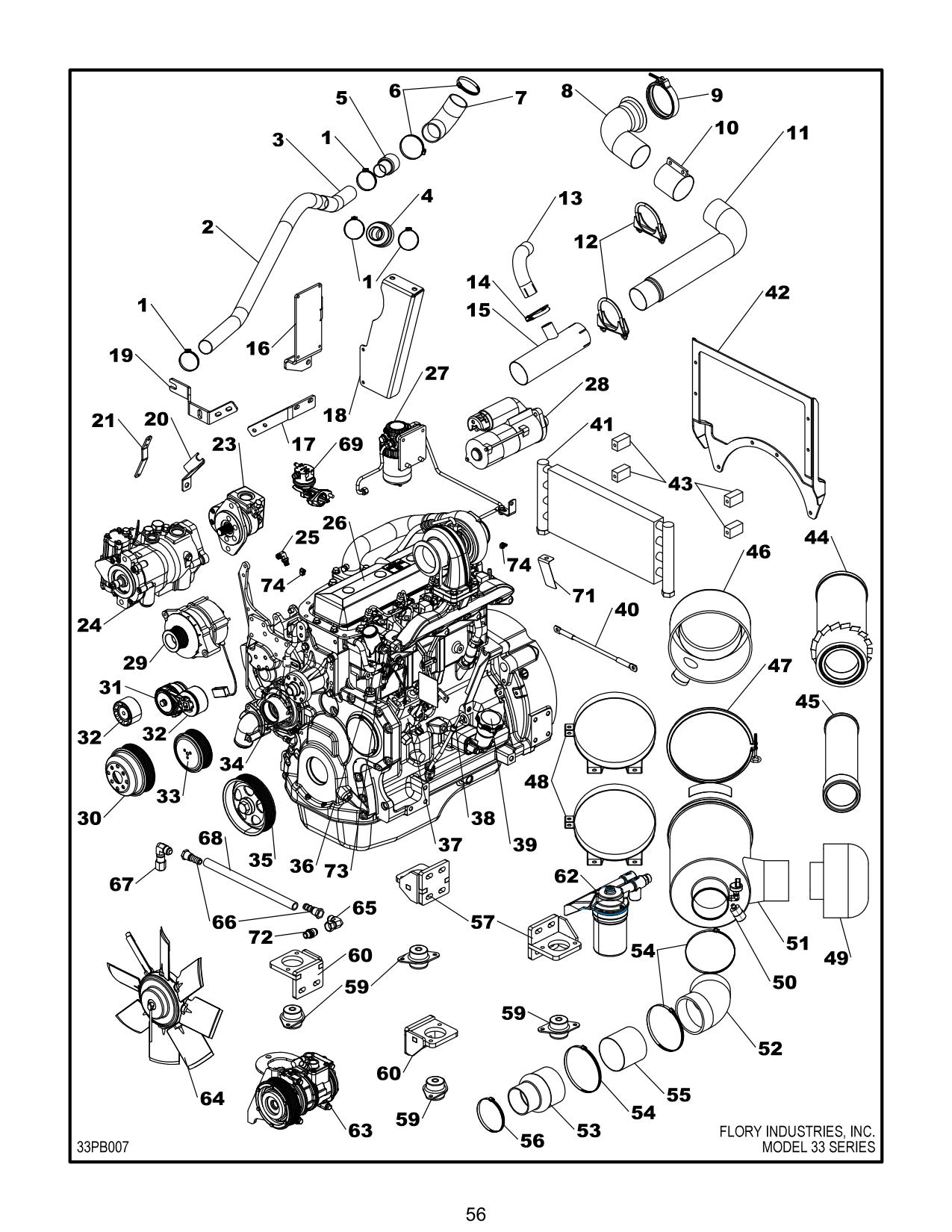

Figure 48 · Flory Flory 33 Series Sweeper

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
34D R123226 SEAL, water pump 2
35 R505567 PULLEY, crankshaft 1
36A RE522076 THERMOSTAT (NOT SHOWN) 1
36B R502814 SEAL, thermostat 1
37 EP4033 PUMP, fuel injection 1
38 RE69243 DIPSTICK, oil 1
39 RE535560 CAP, oil filler 1
40 CB2012 CABLE, ground 1
41 OC1242 COOLER, oil 1
42 T67053 MOUNT, oil cooler 1
43 515A MOUNT, oil cooler 2
44 FL7078 FILTER, air (primary) 1
45 FL8078 FILTER, air (secondary) 1
46 CV1078 CUP, air cleaner 1
47 CA4085 CLAMP, cap 1
48 CA4185 BAND, air cleaner mount 2
49 AC3078 PRE CLEANER 1
50A GA7056 INDICATOR, air cleaner 1
50B 3400X2 FITTING, 90 deg. indicator 1
51 AC2078 AIR CLEANER, complete 1
52 NP1033 ELBOW, intake 1
53 T10253 TUBE, intake 1
54 CA7400 CLAMP, hose 3
55 NP3078 HUMP, hose 1
56 CA2304 CLAMP, hose 1
57 T67023 MOUNT, engine (front ) 2
59 BA3060 MOUNT, engine (rubber) 4
60 T67063 MOUNT, engine (rear) 2
62 FL4003 FILTER, oil (remote mount) 1
63 AR3175 COMPRESSOR, a/c 1
64 FN4033 FAN, clean fix (see break down for detail) 1
65 3903-10-10 FITTING, engine oil drain hose 1
66 10010B610 FITTING, engine oil drain hose 2
67 06CP-10 CAP, engine oil drain hose 1
68 F831-10 HOSE, engine oil drain 14in
69 RE68345 PUMP, fuel transfer 1
70 BL4098 BELT, fan (NOT SHOWN) 1
71 T22117 SHIELD, heat 1
72 FT3188 FITTING, engine oil drain hose (s/n ~5713) 1
72 10M22F87OMXS FITTING, engine oil drain hose (s/n 3035714~) 1
73 SW1178 SWITCH, temp shut down 1
74 CA2004 CLAMP, hose (use for coolant vent hose) 2
74 33PB007 MODEL 33 SERIES SWEEPER
