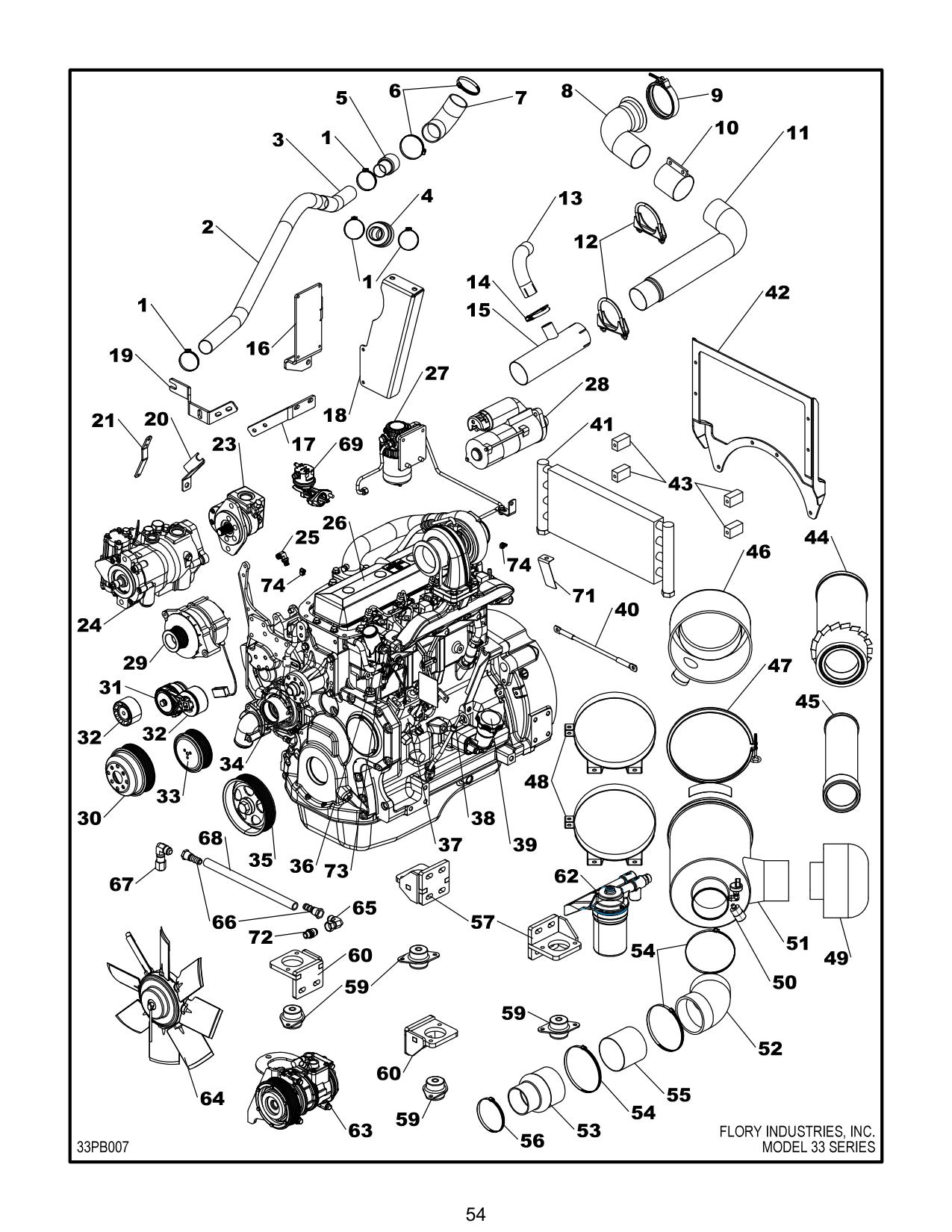

Figure 47 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CA2108 | CLAMP, hose | 4 |
| 2 | HS0110-1 | HOSE, exhaust ejector 38in | |
| 3 | HS0110-1 | HOSE, exhaust ejector 11in | |
| 4 | VL6131 | VALVE, exhaust check | 1 |
| 5 | XP1078 | ADAPTER, ejector hose | 1 |
| 6 | CA2200 | CLAMP, hose | 2 |
| 7 | P105529 | ELBOW, a/c | 1 |
| 8 | XP3775 | TUBE, turbo exhaust | 1 |
| 9 | RE40048 | CLAMP, turbo | 1 |
| 10 | 4114 | CLAMP, band | 1 |
| 11 | XP3733 | ELBOW, exhaust | 1 |
| 12 | CA3300 | CLAMP, muffler | 2 |
| 13 | T10503 | ELBOW, exhaust ejector | 1 |
| 14 | CA3108 | CLAMP, muffler | 1 |
| 15 | AC7030 | EJECTOR, exhaust | 1 |
| 16 | T67073 | MOUNT, HIC manifold | 1 |
| 17 | T17403 | BRACE, pump | 1 |
| 18 | T67033 | MOUNT, exhaust | 1 |
| 19 | T64273 | MOUNT, hydrostat cable | 1 |
| 20 | T64183 | MOUNT, throttle cable | 1 |
| 21 | T64773 | ARM, throttle control | 1 |
| 22 | T64777 | ARM, transmission control | 1 |
| 23A | HP2155-R1 | PUMP, aux | 1 |
| 23B | OR9044 | O RING- aux to hydrostat | 2 |
| 24A | SSPV4620214 | PUMP, hydrostat | 1 |
| 24B | HP6280-K | KIT, seal | 1 |
| 25 | T18075 | FITTING, lube line | 1 |
| 26 | 4045T-5-S | ENGINE, John Deere | 1 |
| 27A | FL2078 | ELEMENT, fuel filter (final) | 1 |
| 27B | R113565 | O-RING, fuel filter | 1 |
| 28 | SA3078 | STARTER | 1 |
| 29 | RE533653 | ALTERNATOR (95 amp) | 1 |
| 30 | R128658 | PULLEY, fan | 1 |
| 31A | RE518097 | ARM, belt tensioner (s/n ~5528) | 1 |
| 31B | BA0001 | ARM, belt tensioner (s/n 5699~) | 1 |
| 32A | PL4075-R1 | PULLEY, engine idler (Tensioner & Stationary) | 1 |
| 32B | CV9075 | COVER, engine idler pulley | 1 |
| 33 | R121038 | PULLEY, water pump | 1 |
| 34A | RE505981 | PUMP, water (NOT SHOWN) | 1 |
| 34B | RE515314 | REPAIR KIT, water pump Note: RE515314 does not include R123226 seal (Qty 2 required) | 1 |
| 34C | R123417 | GASKET, water pump | 1 |
| 34C | 33PB007 | MODEL 33 SERIES SWEEPER | |
| 34D | R123226 | SEAL, water pump | 2 |
| 35 | R505567 | PULLEY, crankshaft | 1 |
| 36A | RE522076 | THERMOSTAT (NOT SHOWN) | 1 |
| 36B | R502814 | SEAL, thermostat | 1 |
| 37 | EP4033 | PUMP, fuel injection | 1 |
| 38 | RE69243 | DIPSTICK, oil | 1 |
| 39 | RE535560 | CAP, oil filler | 1 |
| 40 | CB2012 | CABLE, ground | 1 |
| 41 | OC1242 | COOLER, oil | 1 |
| 42 | T67053 | MOUNT, oil cooler | 1 |
| 43 | 515A | MOUNT, oil cooler | 2 |
| 44 | FL7078 | FILTER, air (primary) | 1 |
| 45 | FL8078 | FILTER, air (secondary) | 1 |
| 46 | CV1078 | CUP, air cleaner | 1 |
| 47 | CA4085 | CLAMP, cap | 1 |
| 48 | CA4185 | BAND, air cleaner mount | 2 |
| 49 | AC3078 | PRE CLEANER | 1 |
| 50A | GA7056 | INDICATOR, air cleaner | 1 |
| 50B | 3400X2 | FITTING, 90 deg. indicator | 1 |
| 51 | AC2078 | AIR CLEANER, complete | 1 |
| 52 | NP1033 | ELBOW, intake | 1 |
| 53 | T10253 | TUBE, intake | 1 |
| 54 | CA7400 | CLAMP, hose | 3 |
| 55 | NP3078 | HUMP, hose | 1 |
| 56 | CA2304 | CLAMP, hose | 1 |
| 57 | T67023 | MOUNT, engine (front ) | 2 |
| 59 | BA3060 | MOUNT, engine (rubber) | 4 |
| 60 | T67063 | MOUNT, engine (rear) | 2 |
| 62 | FL4003 | FILTER, oil (remote mount) | 1 |
| 63 | AR3175 | COMPRESSOR, a/c | 1 |
| 64 | FN4033 | FAN, clean fix (see break down for detail) | 1 |
| 65 | 3903-10-10 | FITTING, engine oil drain hose | 1 |
| 66 | 10010B610 | FITTING, engine oil drain hose | 2 |
| 67 | 06CP-10 | CAP, engine oil drain hose | 1 |
| 68 | F831-10 | HOSE, engine oil drain 14in | |
| 69 | RE68345 | PUMP, fuel transfer | 1 |
| 70 | BL4098 | BELT, fan (NOT SHOWN) | 1 |
| 71 | T22117 | SHIELD, heat | 1 |
| 72 | FT3188 | FITTING, engine oil drain hose (s/n ~5713) | 1 |
| 72 | 10M22F87OMXS | FITTING, engine oil drain hose (s/n 3035714~) | 1 |
| 73 | SW1178 | SWITCH, temp shut down | 1 |
| 74 | CA2004 | CLAMP, hose (use for coolant vent hose) | 2 |
| 74 | 33PB007 | MODEL 33 SERIES SWEEPER |
