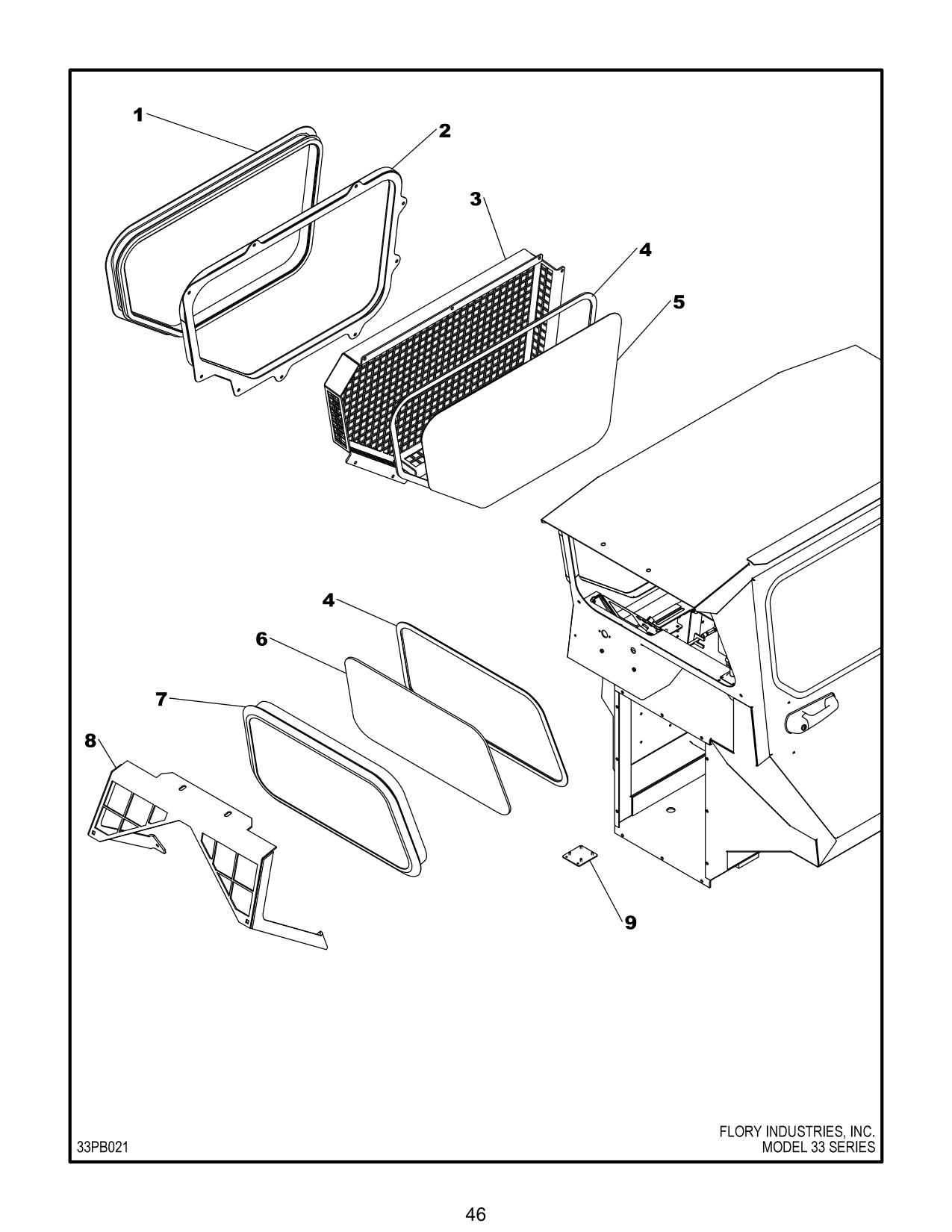

Figure 40 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T29903 | HEHR WINDOW, right (s/n 5208~) | 1 |
| 1 | RB1133-1 | GASKET, Hehr window (104 in.) | |
| 2 | T69903 | SPACER, bolt on right Hehr window (s/n ~5165) | 1 |
| 3 | T29443 | GUARD, right window (optional) | 1 |
| 4 | AS987-1 | TRIM, window (used only with T29103ST and T29717) | |
| 5 | T29103ST | GLASS, right window (s/n ~5165) | 1 |
| 6 | T29717 | GLASS, front window (s/n ~5165) | 1 |
| 7 | T29913 | HEHR WINDOW, front (s/n 5208~) | 1 |
| 7 | RB1133-1 | GASKET, Hehr window (82 in.) | |
| 8 | T60377 | GUARD, branch | 1 |
| 9 | T69133 | MOUNT, camera screen (s/n ~5165) | 1 |
| 9 | 33PB021 | MODEL 33 SERIES SWEEPER |
