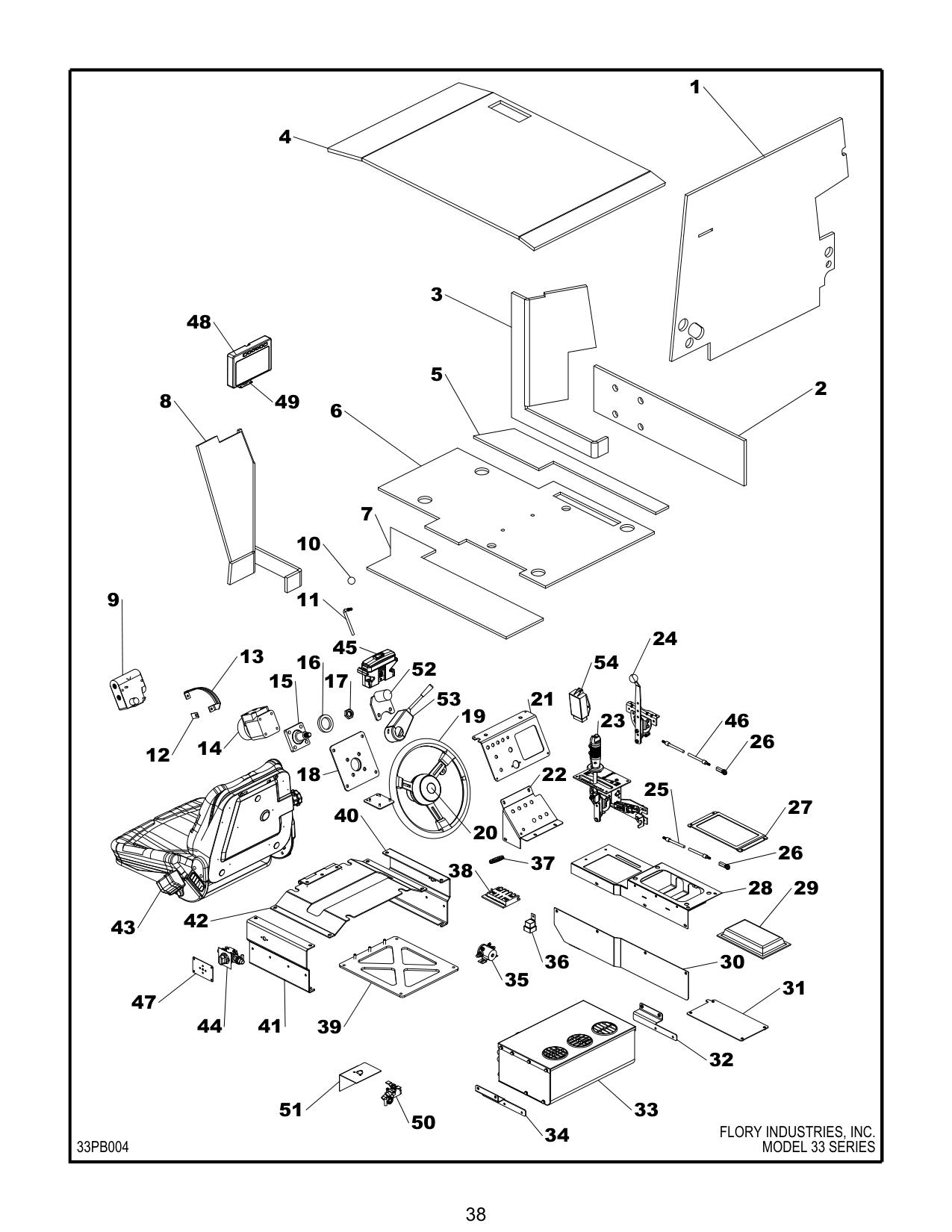

Figure 33 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T38323 | INSULATION, rear | 1 |
| 2 | T38333 | INSULATION, right rear | 1 |
| 3 | T38243 | INSULATION, right side | 1 |
| 4 | T38313 | INSULATION, roof | 1 |
| 5 | T38053 | MAT, floor (upper right) | 1 |
| 6 | T38093 | MAT, floor (lower) | 1 |
| 7 | T38063 | MAT, floor (upper left) | 1 |
| 8 | T38253 | INSULATION, left side | 1 |
| 9A | VL3850 | VALVE, flow control | 1 |
| 9B | MK2190 | SEAL KIT, flow control | 1 |
| 10 | B-4 | KNOB, control | 1 |
| 11 | T64975 | LEVER, flow control | 1 |
| 12 | T62025 | TAB, flow control lever stop | 1 |
| 13 | T62015 | GUIDE, flow control lever | 1 |
| 14A | SU2760 | MOTOR, steering | 1 |
| 14B | SU1153-K | SEAL KIT, motor | 1 |
| 15 | CT3003 | COLUMN, steering | 1 |
| 16 | 209-112 | SEAL, steering column | 1 |
| 17 | NT3013 | NUT, steering column | 1 |
| 18 | T67203 | MOUNT, hyd. steering | 1 |
| 19 | CT3116 | STEERING WHEEL | 1 |
| 20 | MC0902 | CAP, steering wheel | 1 |
| 21 | T20383 | PANEL, instrument (sn ~5105) | 1 |
| 21 | T20393 | PANEL, instrument (sn 5136~) | 1 |
| 22 | T20693 | CONSOLE, control (top front) | 1 |
| 23A | CT6077 | CONTROL, hydrostat | 1 |
| 23B | CT6177 | HANDLE, control (pre-wired) | 1 |
| 23C | SW4077 | SWITCH, neutral start | 1 |
| 23D | SW2577 | SWITCH, push-button | 2 |
| 23E | SW2377 | SWITCH, rocker | 1 |
| 23F | RB4077 | CAP, switch | 1 |
| 23G | ME5177 | HARNESS, wire (hydrostat) | 1 |
| 24 | CT5033 | CONTROL, throttle | 1 |
| 25 | C1733L108 | CABLE, hydrostat | 1 |
| 26 | SPF4 | ROD END | 2 |
| 27 | T20553 | MOUNT, arm rest | 1 |
| 28 | T20683 | CONSOLE, control (top rear) | 1 |
| 29 | T38003 | PAD, arm rest | 1 |
| 30 | T20873 | CONSOLE, control (side) | 1 |
| 31 | T20563 | COVER, arm rest | 1 |
| 32 | T64023 | BRACKET, a/c (right) | 1 |
| 32 | 33PB004 | MODEL 33 SERIES SWEEPER | |
| 33A | AR1033 | ASSEMBLY, evaporator fan (see a/c break down) | 1 |
| 34 | T64043 | BRACKET, alc (left) | 1 |
| 35 | SW3-R1 | SWITCH, solenoid | 1 |
| 36 | FS-SW3012 | SWITCH, relay | 1 |
| 37 | RB7104 | GROMMET, 1-1/4" rubber | 1 |
| 38 | ME3012 | BLOCK, fuse | 1 |
| 39 | 721033 | MOUNT, seat | 1 |
| 40 | T67283 | MOUNT, seat/ac (right side) | 1 |
| 41 | 767283 | MOUNT, seat/ac (left side) (sn ~4970, 5208~) | 1 |
| 41 | 767383 | MOUNT, seat/ac (left side) (sn 5016-5165) | 1 |
| 42 | T67293 | MOUNT, seat/ac (top) | 1 |
| 42 | 43A | $ST1033-R1 SEAT, complete | 1 |
| 43B | MKO0033 | KIT, seat belt | 1 |
| 43C | ST6033 | CUSHION, Seat | 1 |
| 44 | VL0911-R1 | VALVE, heater (s/n ~5165) | 1 |
| 45 | CM5033 | MODULE, input expansion | 1 |
| 46 | C1732L81 | CABLE, throttle | 1 |
| 47 | T67253 | PLATE, water valve (sn 5016-5165) | 1 |
| 48 | MM1027 | MONITOR | 1 |
| 49 | BA1027 | PEDESTAL | 1 |
| 50 | VL0133 | VALVE, heater (s/n 5208~) | 1 |
| 51 | T64203 | DECAL PLATE, water valve (s/n 5208~) | 1 |
| 52 | T67227 | MOUNT, turn signal switch | 1 |
| 53 | SW0010 | SWITCH, turn indicator | 1 |
| 54 | ME0010 | MODULE, flasher | 1 |
