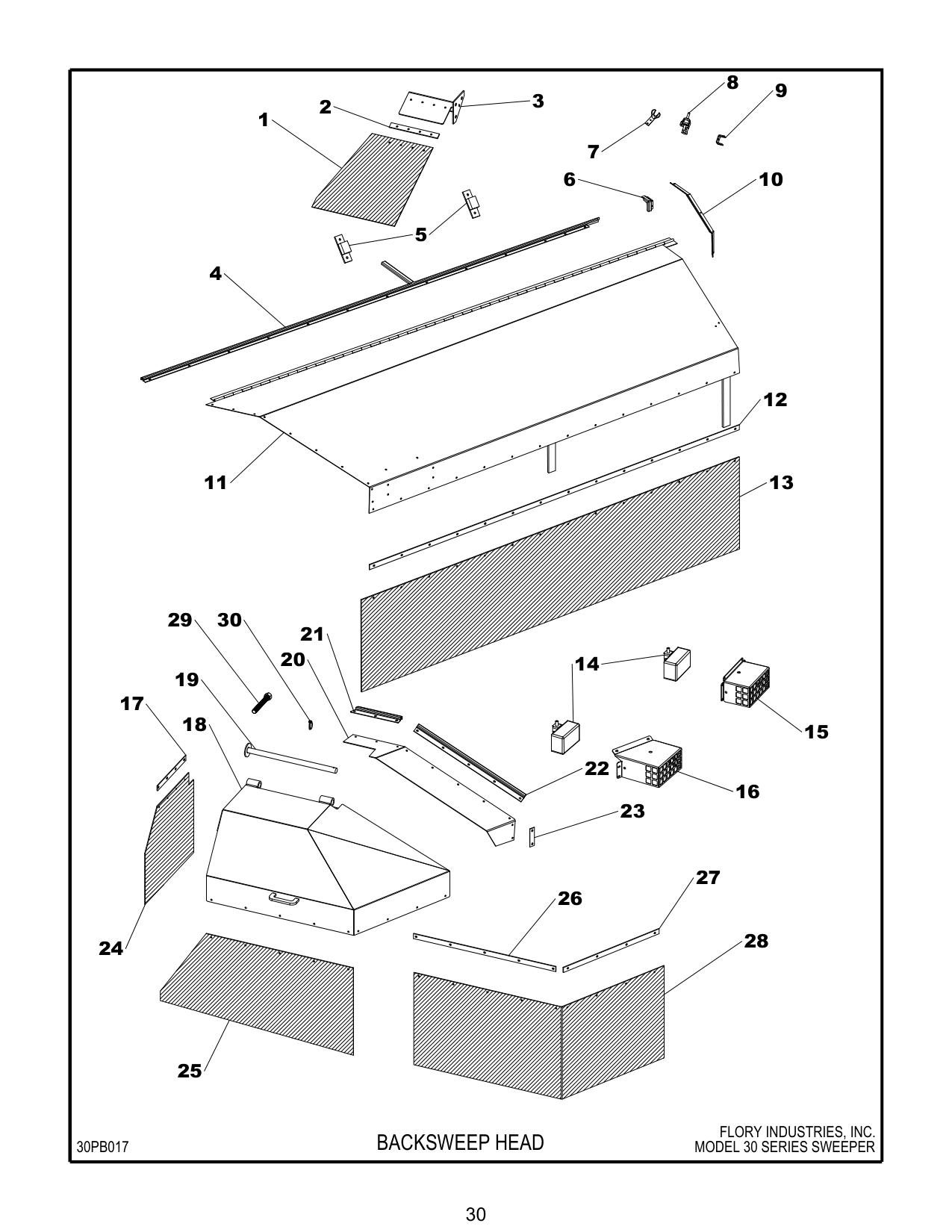

Figure 26 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T30555 | FLAP, deflector | 1 |
| 2 | T61505 | CLAMPSTRIP, deflector flap | 1 |
| 3 | T60355 | DEFLECTOR, nut | 1 |
| 4 | T19383 | RACE WAY, wire (8.5') | 1 |
| 5 | T35005 | BUMPER, rubber | 2 |
| 6 | T19253 | RACE WAY, wire | 1 |
| 7 | 28562 | LATCH, rubber hook | 1 |
| 8 | 66D638 | HOOK, 8" rubber | 1 |
| 9 | 277A80 | ANCHOR, rubber hook | 1 |
| 10 | T19153 | RACE WAY, wire | 1 |
| 11 | T20087 | COVER, reel (8') | 1 |
| 12 | T67105 | CLAMPSTRIP, curtain | 1 |
| 13 | T30695 | CURTAIN, dust | 1 |
| 14 | 64181 | LIGHT, front | 2 |
| 15 | T67403 | MOUNT, light | 1 |
| 16 | T69423 | MOUNT, light | 1 |
| 17 | T60195 | CLAMPSTRIP, delivery chute | 1 |
| 18 | T61135 | CHUTE, delivery | 1 |
| 19 | T12975 | PIN, delivery chute | 1 |
| 20 | T31205R | SEAL, reel cover | 1 |
| 21 | T69263 | LOOM, wire | 1 |
| 22 | T60163 | CLAMPSTRIP, reel cover | 1 |
| 23 | T60155 | CLAMPSTRIP, cover seal | 1 |
| 24 | T30535 | CURTAIN, dust | 1 |
| 25 | T30485 | CURTAIN, side | 1 |
| 26 | T60185 | CLAMPSTRIP, delivery chute | 1 |
| 27 | T60175 | CLAMPSTRIP, delivery chute | 1 |
| 28 | T30505 | CURTAIN, chute | 1 |
| 29 | T11015 | REDI BOLT, stop | 1 |
| 30 | PN2003 | PIN, linch (3/16") | 1 |
| 30 | 30PB017 | MODEL 30 SERIES SWEEPER |
