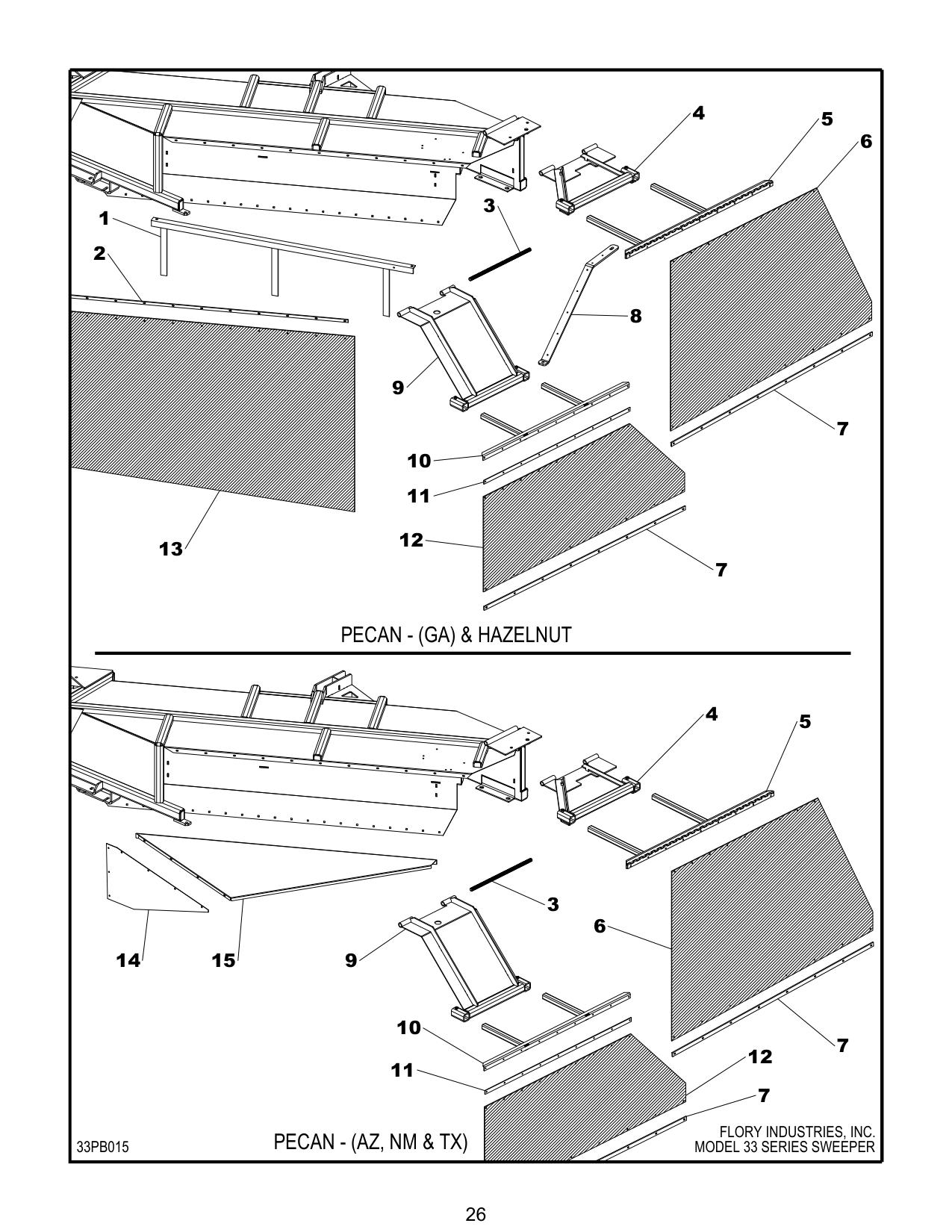

Figure 23 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T60603 | FRAME, front curtain | 1 |
| 1 | T60613 | FRAME, front curtain | 1 |
| 2 | T67195 | CLAMPSTRIP, front curtain | 1 |
| 2 | T67197 | CLAMPSTRIP, front curtain | 1 |
| 3 | T1105 | REDI-BOLT, hinge | 1 |
| 4 | T60433 | FRAME, side curtain | 1 |
| 5 | T60633 | FRAME, side curtain | 1 |
| 6 | T30477 | CURTAIN, side | 1 |
| 7 | T60285 | CLAMPSTRIP, side curtain (bottom) | 1 |
| 8 | T60465 | BRACE, curtain frame | 1 |
| 9 | T60533 | FRAME, side curtain | 1 |
| 10 | T60735 | FRAME, side curtain | 1 |
| 11 | F64810 | CLAMPSTRIP, side curtain (top) | 1 |
| 12 | T30577 | CURTAIN, windrow | 1 |
| 13 | T30657 | CURTAIN, front (7') | 1 |
| 13 | T30667 | CURTAIN, front (8') | 1 |
| 14 | T29325 | DEFLECTOR, right leaf | 1 |
| 15 | T29313 | DEFLECTOR, left leaf (7') | 1 |
| 15 | T29323 | DEFLECTOR, left leaf (8') | 1 |
| 15 | 33PB015 | MODEL 33 SERIES SWEEPER |
