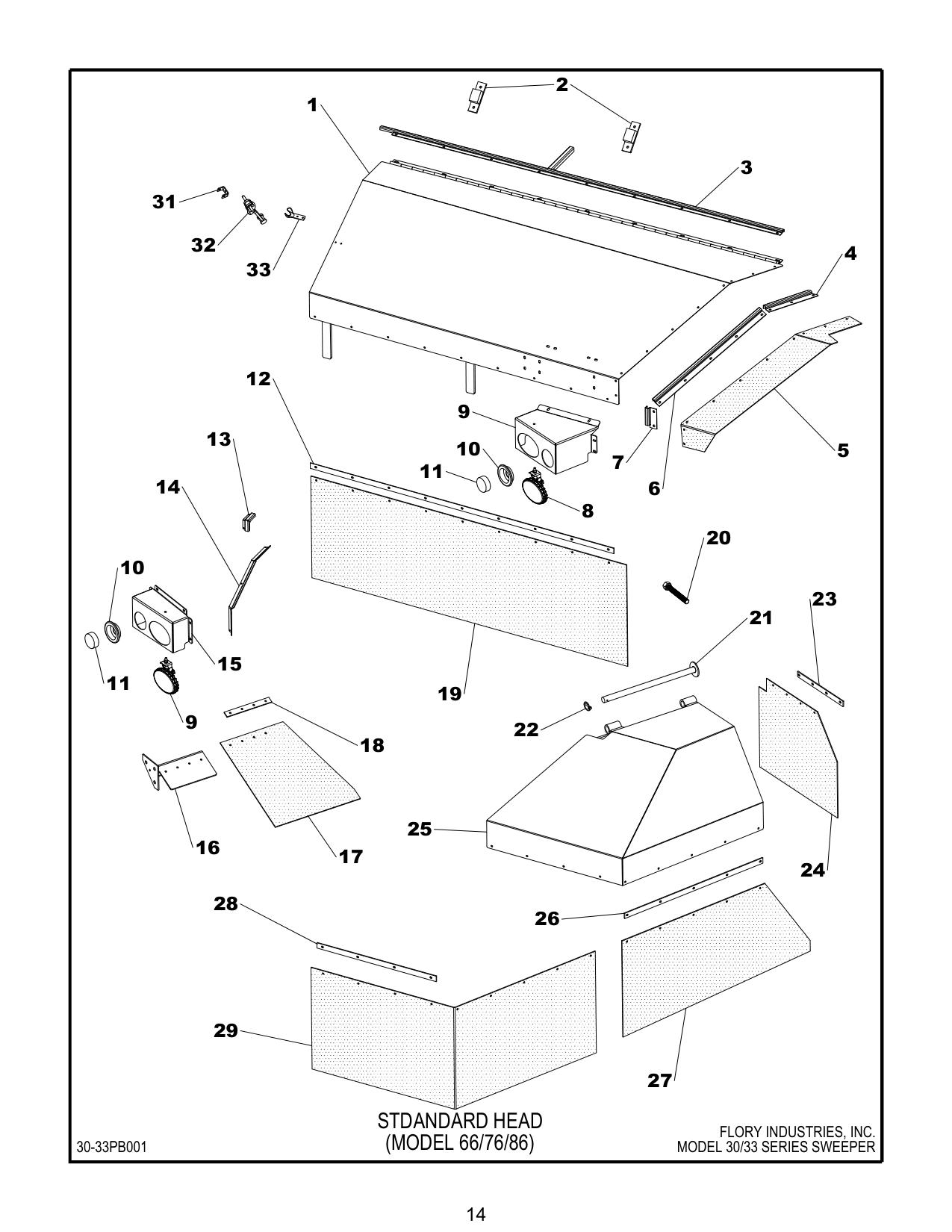

Figure 12 · Flory Flory 33 Series Sweeper
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | T20063 | COVER, reel (6633) | 1 |
| 1 | T20073 | COVER, reel (7633) | 1 |
| 1 | T20083 | COVER, reel (8633) | 1 |
| 2 | T35005 | BUMPER, rubber | 2 |
| 3 | T19063 | RACEWAY, wire (6633) | 1 |
| 3 | T19073 | RACEWAY, wire (7633) | 1 |
| 3 | T19083 | RACEWAY, wire (8633) | 1 |
| 4 | T60263 | CLAMPSTRIP, cover seal | 1 |
| 5 | T31205R | SEAL, reel cover (left) | 1 |
| 6 | T60163 | CLAMPSTRIP, cover seal | 1 |
| 7 | T67183 | CLAMP, front curtain | 1 |
| 8 | LT6035 | LIGHT | 2 |
| 9 | T67523 | MOUNT, light (left) | 1 |
| 10 | LT3025 | LIGHT, 2.5" amber | 2 |
| 11 | RB7208 | GROMMET, light | 2 |
| 12 | T67085 | CLAMPSTRIP, dust curtain (6633) | 1 |
| 12 | T67095 | CLAMPSTRIP, dust curtain (7633) | 1 |
| 12 | T67105 | CLAMPSTRIP, dust curtain (8633) | 1 |
| 13 | T19053 | RACEWAY, wire (corner) | 1 |
| 14 | T19043 | RACEWAY, wire (right) | 1 |
| 15 | T67503 | MOUNT, light (right) | 1 |
| 16 | T60353 | DEFLECTOR, nut | 1 |
| 17 | T30555 | FLAP, deflector | 1 |
| 18 | T61055 | CLAMPSTRIP, deflector flap | 1 |
| 19 | T30665 | CURTAIN, dust (6633) | 1 |
| 19 | T30685 | CURTAIN, dust (7633) | 1 |
| 19 | T30695 | CURTAIN, dust (8633) | 1 |
| 20 | T11015 | REDI BOLT, chute stop | 1 |
| 21 | T12975 | PIN, delivery chute | 1 |
| 22 | PN2003 | HAIR PIN, chute pin (3/16”) | 1 |
| 23 | T60195 | CLAMPSTRIP, chute curtain | 1 |
| 24 | T30535 | CURTAIN, chute (rear) | 1 |
| 25 | T61113 | CHUTE, windrow delivery | 1 |
| 26 | T60185 | CLAMPSTRIP, chute and side curtain | 1 |
| 27 | T30485 | CURTAIN, chute (side) | 1 |
| 28 | T60175 | CLAMPSTRIP, chute curtain | 1 |
| 29 | T30503 | CURTAIN, windrow chute | 1 |
| 30 | T830 | KIT, decal (NOT SHOWN) | 1 |
| 31 | 277A80 | ANCHOR, rubber hook | 1 |
| 32 | 66D638 | HOOK, rubber | 1 |
| 33 | 028562 | LATCH, rubber hook | 1 |
| 33 | 30-33PB001 | MODEL 30 SERIES SWEEPER |
