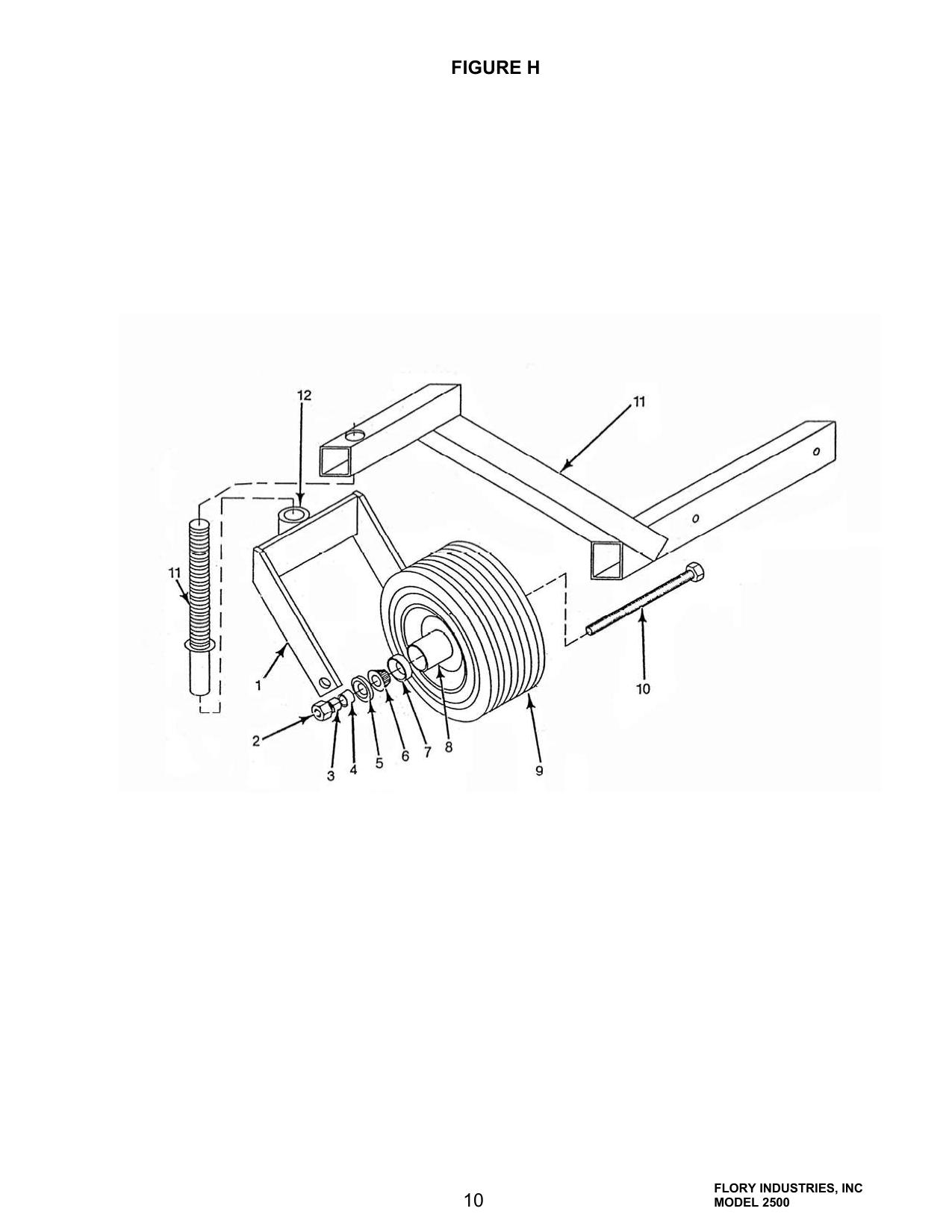

Figure 6 · Flory Flory Blower 2500
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | TB6222 | YOKE-wheel | 2 |
| 2 | 87142 | NUT-axle | 2 |
| 3 | TB1019 | SPACER-outside (used with 12985 wheel) | 4 |
| 3 | TB1020 | SPACER-outside (used with 46333 wheel) | 4 |
| 4 | 4315 | SPACER-inside (used with 12985 wheel) | 4 |
| 5 | 4247 | SEAL | 4 |
| 6 | LM11949 | CONE-bearing | 4 |
| 7 | LM11910 | CUP-bearing | 4 |
| 8 | 12985 | WHEEL (old style - 5 1/2” hub length) | 2 |
| 8 | 46333 | WHEEL (new style - 4” hub length) | 2 |
| 9 | 13X6506 | TIRE | 2 |
| 10 | TK1234 | AXLE | 2 |
| 11 | TB6271 | FRAME caster wheel | 2 |
| 12 | H694 | BUSHING | 2 |
| 13 | 12985-02PF | TIRE & WHEEL ASSEMBLY (poly filled)(old style 5 1/2” hub) | 2 |
| 13 | 46333-02PF | TIRE & WHEEL ASSEMBLY (poly filled)(new style 4” hub) | 2 |
