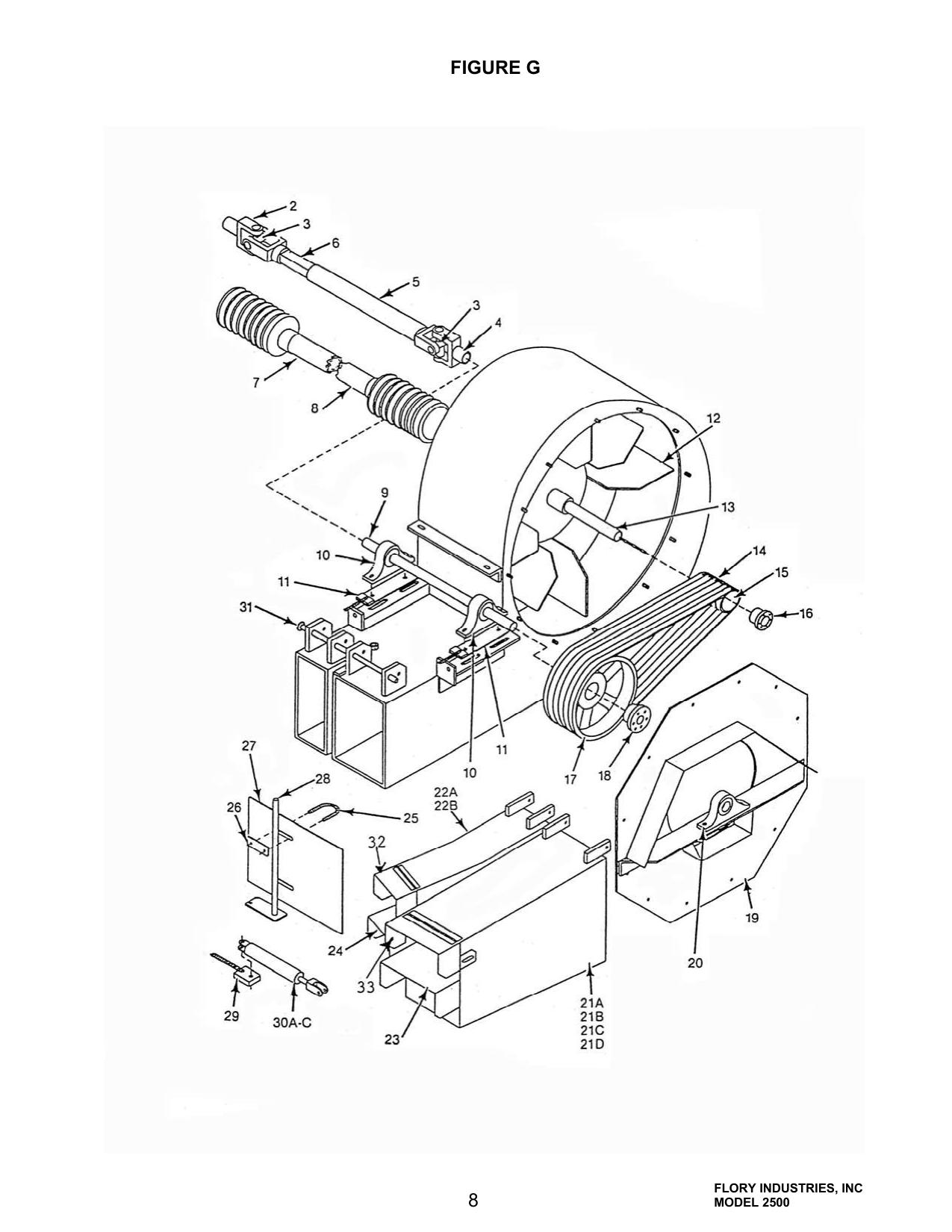

Figure 5 · Flory Flory Blower 2500
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 23 | TB6602 | DEFLECTOR-center (secondary) | 1 |
| 24 | TB6590 | DEFLECTOR-center (secondary) | 1 |
| 25 | TB1186 | U BOLT | 2 |
| 26 | TB6486 | CLAMP | 2 |
| 27 | TB6570 | DAMPER | 1 |
| 28 | TB5050 | SHAFT-damper | 1 |
| 29 | TB6705 | BOLT-anchor | 1 |
| 30A | WFC1504 | CYLINDER-damper | 1 |
| 30B | 87462 | PIN-cylinder | 2 |
| 30C | KWM15062 | KIT-cylinder seal | 1 |
| 31 | TB1290 | PIN-spout hinge | 1 |
| 32 | TB6589 | DEFLECTOR-upper and lower (primary) | 2 |
| 33 | TB6601 | DEFLECTOR-upper and lower (secondary) | 2 |
| 34 | TB6114 | SHIELD-belt drive filler plate (not shown) | 1 |
| 35 | TB1498 | SPACER-bearing (rear)(not shown) | 1 |
