Optional Herbst Cart Kit · Flory Flory 8600 SP Harvester

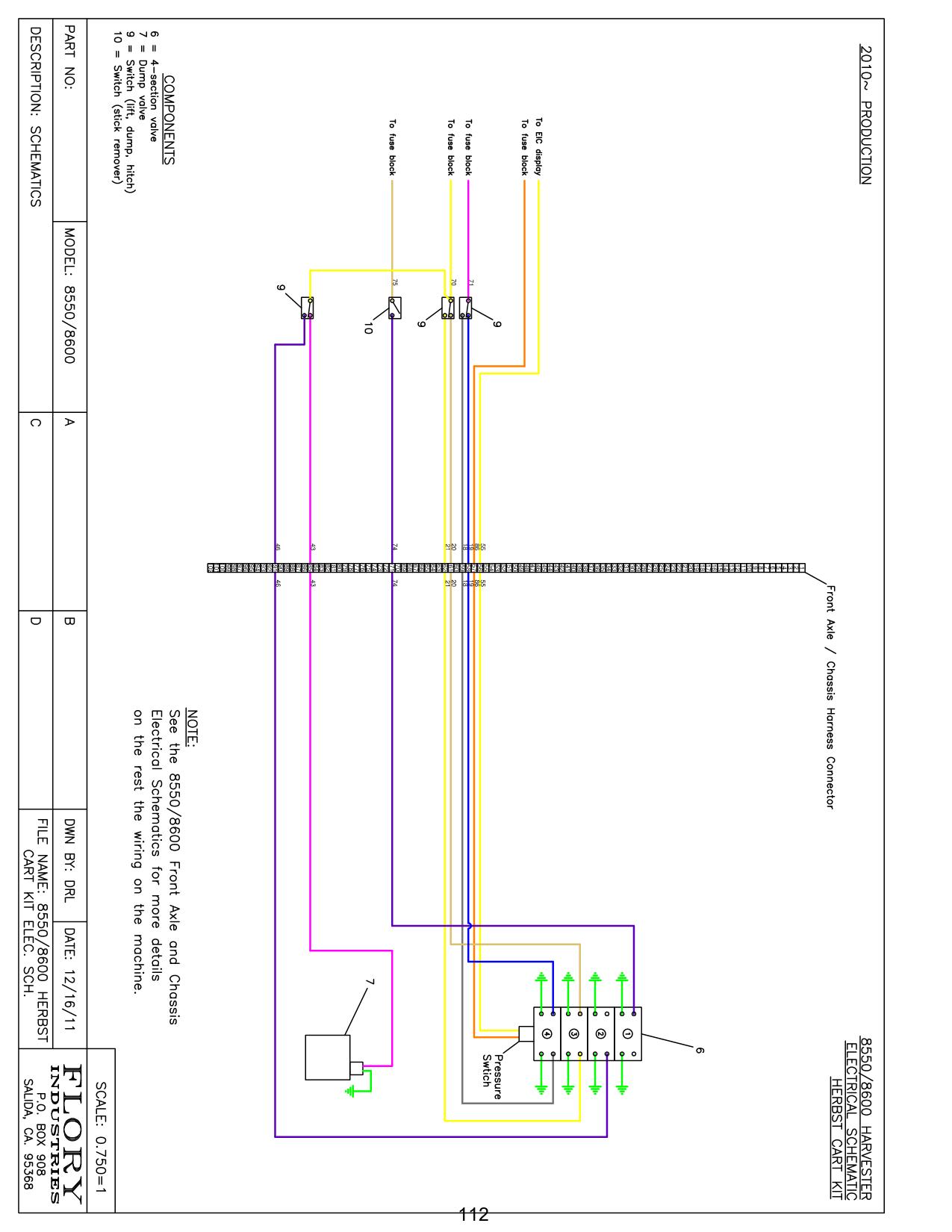

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | HERBST CART KIT | ||
| 6602-12-12 | FITTING, adapter (quick coupler) | 2 | |
| 6601-12-12 | FITTING, adapter (quick coupler) | 2 | |
| 6601-8-10 | FITTING, adapter (quick coupler) | 4 | |
| 1/4X3-C | USS BOLT | 2 | |
| 1/4LW-C | USS LOCK WASHER | 2 | |
| 1/4N-C | USS NUT | 2 | |
| 1/4X2-C | USS BOLT | 1 | |
| 1/4FW-C | USS FLAT WASHER | 3 | |
| 1/4LN-C | USS LOCK NUT | 2 | |
| 5/16X6-C | USS BOLT | 4 | |
| 5/16LW-C | USS LOCK WASHER | 4 | |
| 5/16FW-F | USS FLAT WASHER | 4 | |
| 5/16N-C | USS NUT | 4 | |
| 3/8X1-1/4-C | USS BOLT | 3 | |
| 3/8LW-C | USS LOCK WASHER | 3 | |
| 3/8FW-F | USS FLAT WASHER | 3 | |
| 3/8N-C | USS NUT | 3 | |
| 8550PB019 | MODEL 8550/8600 HARVESTER | ||
| 1 | L29306 | SHIELD, valve | 1 |
| 2 | L69146 | MOUNT, dump valve | 1 |
| 3 | L39606 | STRAP, rubber hose | 1 |
| 4 | L69126 | MOUNT, flow control | 1 |
| 5 | L69136 | MOUNT, flow control | 1 |
| 6 | VL5986 | VALVE, 4 section | 1 |
| 7A | VL5077 | CARTRIDGE, dump valve | 1 |
| 7B | MF7077 | MANIFOLD, dump valve | 1 |
| 7C | ME1777 | COIL, dump valve | 1 |
| 8 | VL3850 | VALVE, flow control | 1 |
| 9 | S208C | SWITCH, cart lift and dump | 2 |
| 10 | S2098 | SWITCH, stick remover | 1 |
| 11 | SAN105 | COVER, switch | 3 |
| 12 | FT4015 | ELBOW, 3/4" 90° street | 1 |
| 13 | FT4011 | NIPPLE, 3/4" close | 2 |
| 14 | 1350132 | ELBOW, 3/4" 45° street | 1 |
| 15 | 10351-01761 | TEE, 3/4" street run | 1 |
| 15 | FOR | REFERENCE: VL5986 valve, section 1-4 viewed left to right | |
| 21 | HOSE, l | ||
| 22 | HOSE, hyd. hitch tees to cart | 2 | |
| 23 | HOSE, valve sect. #1 front & rear ports to cart | 2 | |
| 24 | HOSE, dump valve port "1" to cart | 1 | |
| 25 | HOSE, valve sect. #3 front & rear ports to cart | 2 | |
| 26 | HOSE, dump valve port "3" to return manifold | 1 | |
| 27 | HOSE, flow control "CF" on cart to cart | 1 | |
| 28 | HOSE, flow control "EX" on cart to cart | 1 | |
| 28 | 253T-12-12 | FITTING, adapter (4 section valve) | 1 |
| 28 | 2503-12-12 | FITTING, adapter (4 section valve & dump valve) | 3 |
| 28 | 0503-10-8 | FITTING, adapter (4 section valve) | 5 |
| 28 | 05CP-10 | FITTING, adapter (4 section valve) | 1 |
| 28 | 3703-12-12 | FITTING, adapter (4 section valve) | 1 |
| 28 | 0503-10-12 | FITTING, adapter (4 section valve) | 2 |
| 28 | 2503-12-8 | FITTING, adapter (dump valve) | 1 |
| 28 | 063T-8-8 | FITTING, adapter (hitch cylinder) | 2 |
| 28 | 2103-12-8 | FITTING, adapter (flow control) | 1 |
| 28 | 0103-12-8 | FITTING, adapter (flow control) | 1 |
| 28 | 2103-8-8 | FITTING, adapter (flow control) | 2 |
| 28 | 2103-12-12 | FITTING, adapter (return manifold) | 1 |
| 28 | 8550PB019 | MODEL 8550/8600 HARVESTER |
