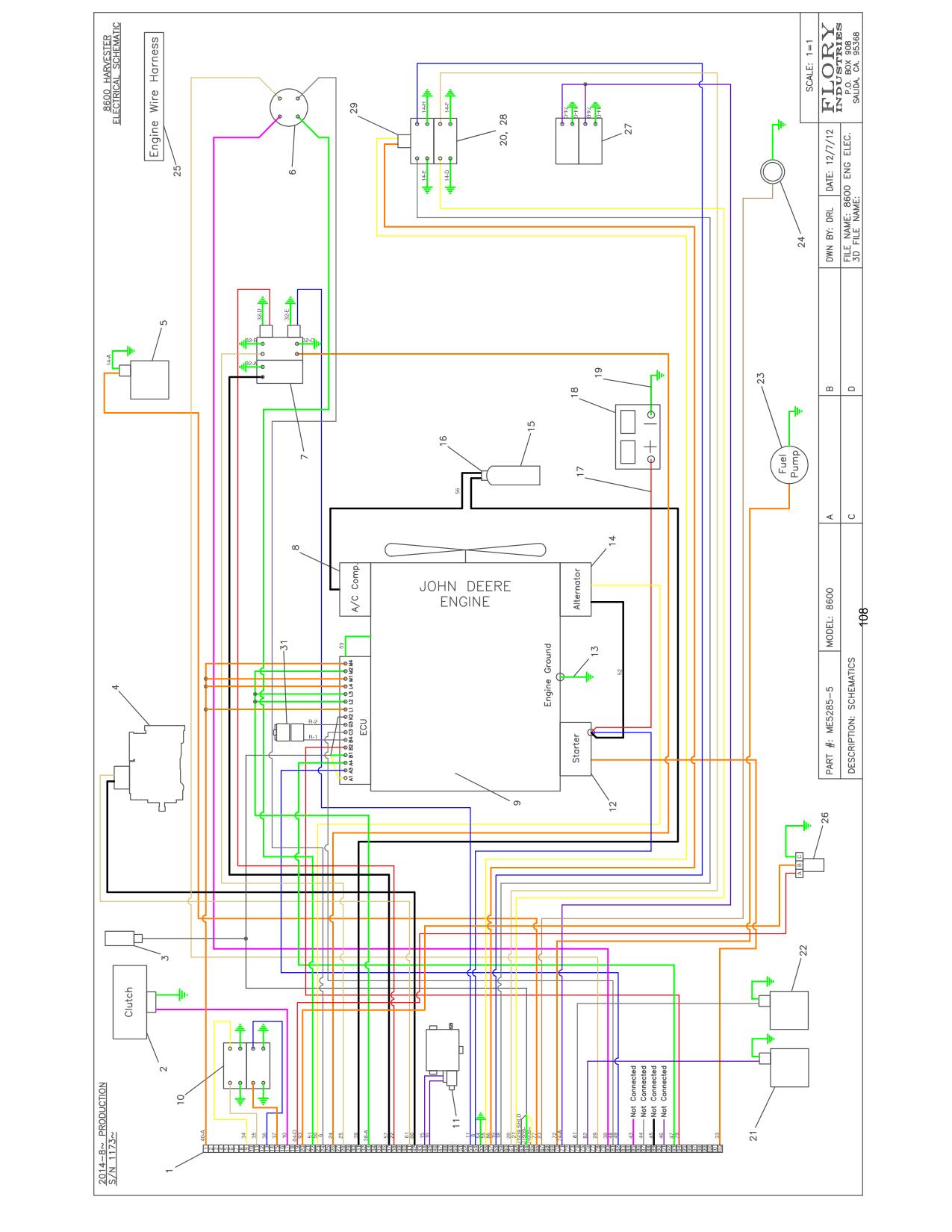

Main Chassis (Engine) Electrical Schematic · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | NSS | CONNECTOR PLUG, cab wall | 1 |
| 2 | CLUTCH, electric (see "Main Drives & Suction Fan") | 1 | |
| 3A | NSS | CONNECTOR PLUG, to resistor | 1 |
| 3B | ME4910 | RESISTOR | 1 |
| 4 | NSS | CONNECTOR PLUG, to hydrostat EDC | 1 |
| 5A | VL7012 | VALVE, shaft drives on/off relief | 1 |
| 5B | ME1712-2 | COIL, solenoid | 1 |
| 6 | PG6070 | CONNECTOR PLUG, to cart (optional) | 1 |
| 7A | MF7185 | MANIFOLD, head lift (see "Hydraulic Schematic") | 1 |
| 7B | VL5911 | COIL, solenoid (brake & shift) | 2 |
| 8 | AR3175 | COMPRESSOR, a/c (air cab only) | 1 |
| 9 | 4045H-1 | ENGINE | 1 |
| 10 | MF7090 | MANIFOLD, DV sweeps (optional)(see "Hyd. Schematic") | 1 |
| 11 | ME1512 | COIL, flow control valve (elevator) | 1 |
| 12 | RE68470 | STARTER | 1 |
| 13 | CB4060 | CABLE, engine ground | 1 |
| 14 | RE533653 | ALTERNATOR (95 amp) | 1 |
| 15 | 33-0012A | RECEIVER / DRIER (air cab only) (obsolete) | 1 |
| 15 | AR4020 | RECEIVER / DRIER (air cab only) | 1 |
| 16 | SW1070 | SWITCH, binary pressure (air cab only) | 1 |
| 17 | CB3096 | CABLE, positive battery | 1 |
| 18 | C27-XHD | BATTERY | 1 |
| 19 | CB4015 | CABLE, negative battery | 1 |
| 20A | VL5510 | VALVE, assembly (s/n ~1064) (see "Hyd. Schematic") | 1 |
| 20B | VL5911 | COIL, valve (s/n ~1064) | 6 |
| 21 | VL4085 | VALVE, traction (optional) | 1 |
| 22 | VL5013 | VALVE, power assist (optional) | 1 |
| 23 | FP1085 | PUMP, fuel | 1 |
| 24 | 88176 | LIGHT, rear | 1 |
| 25 | ME5285-1 | HARNESS, wire (chassis) (s/n ~1028) | 1 |
| 25 | ME5285-2 | HARNESS, wire (chassis) (s/n 1029-1064) | 1 |
| 25 | ME5285-3 | HARNESS, wire (chassis) (s/n 1065-1101) | 1 |
| 25 | ME5285-4 | HARNESS, wire (chassis) (s/n 1102~) | 1 |
| 26 | ME7130 | SENSOR, speed (s/n 1029~) | 1 |
| 27 | MF7286 | MANIFOLD, cart control (s/n 1065~) | 1 |
| 28 | VL5286 | VALVE, assembly (s/n 1065~) (see "Hyd. Schematic") | 1 |
| 29 | SW6085 | SWITCH, pressure | 1 |
| 30 | FS-ME2086 | RESISTOR, assembly | 1 |
| 31 | ME2186 | RESISTOR, cap | 1 |
| 31 | 8550PB027 | MODEL 8600 HARVESTER |
