Front Axle (Cab) Electrical Schematic · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕

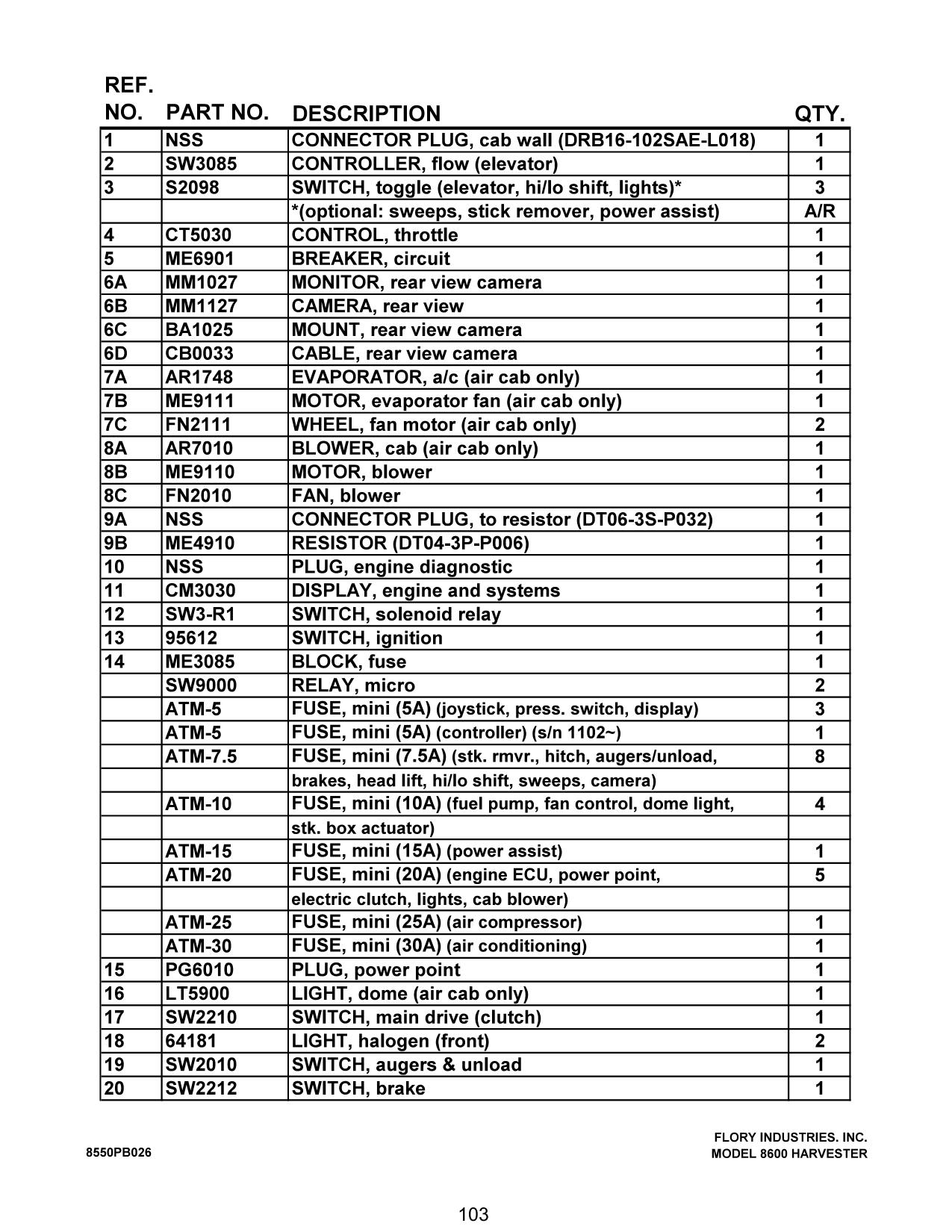

| # | Part number | Description | Qty |
|---|---|---|---|
| 21 | S208C | SWITCH, telescoping hitch | 1 |
| 22 | SW2056 | SWITCH, stick box actuator (optional) | 1 |
| 23 | SW2426 | SWITCH, traction valve (optional) | 1 |
| 24 | FS-SW2410 | SWITCH, foot (head lift) | 2 |
| 25 | SW6210 | SWITCH, air pressure (s/n ~1088) (obsolete) | 1 |
| 25 | SW6210-R1 | SWITCH, air pressure (s/n 1089-1172) (obsolete) | 1 |
| 25 | SW6210-R2 | SWITCH, air pressure (s/n 1173~) | 1 |
| 26 | ME0904 | COMPRESSOR (obsolete - replace with ME0905) | 1 |
| 26 | ME0905 | COMPRESSOR | 1 |
| 27 | CT6085 | CONTROLLER, hydrostat (joystick) | 1 |
| 28 | ME5385 | HARNESS, wire (joystick) | 1 |
| 29 | SW2500 | SWITCH, reversible fan purge (used with ME0900) | 1 |
| 29 | SW2533 | SWITCH, reversible fan purge (used with ME0986) | 1 |
| 30 | ME0900 | BOX, fan control (obsolete - replace with ME0986) | 1 |
| 30 | ME0986 | BOX, fan control | 1 |
| 31 | ME5185-1 | HARNESS, wire (front axle/cab) (s/n 999-1028) | 1 |
| 31 | ME5185-2 | HARNESS, wire (front axle/cab) (s/n 1029-1101) | 1 |
| 31 | ME5185-3 | HARNESS, wire (front axle/cab) (s/n 1102-1128) | 1 |
| 31 | ME5185-4 | HARNESS, wire (front axle/cab) (s/n 1129~) | 1 |
| 32 | FS-SW3012 | RELAY, compressor (s/n 1097-1172) (obsolete) | 1 |
| 33 | CM1086 | CONTROLLER (s/n 1102-1205) (obsolete) | 1 |
| 33 | CM1186 | CONTROLLER (s/n 1206~) | 1 |
| 34 | SW7910 | SWITCH, door (s/n 1102~) | 1 |
| 35 | FS-SW3012 | RELAY, door switch (s/n 1102~) | 1 |
| 35 | 8550PB026 | MODEL 8600 HARVESTER |
