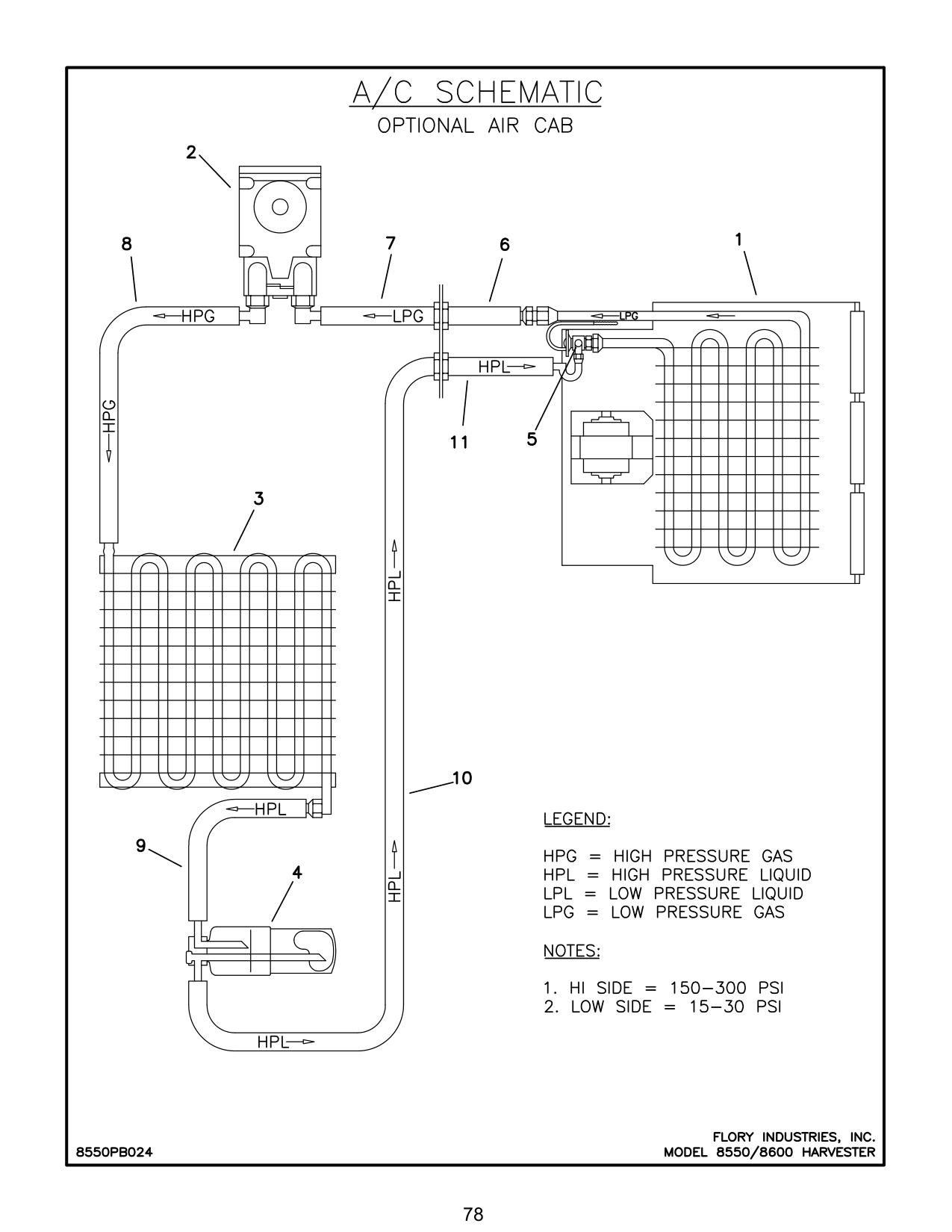

A/C Schematic · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | AR1748 | EVAPORATOR | 1 |
| 1B | FL0048 | FILTER, evaporator | 1 |
| 1C | SW1900 | SWITCH, thermostat | 1 |
| 2 | AR3175 | COMPRESSOR | 1 |
| 3 | AR2110 | CONDENSER | 1 |
| 4A | 33-0012A | RECEIVER / DRIER (obsolete) | 1 |
| 4A | AR4020 | RECEIVER / DRIER | 1 |
| 4B | SW1070 | SWITCH, pressure | 1 |
| 5 | AR6010 | VALVE, expansion | 1 |
| 6 | HS9064 | HOSE, evaporator to bulkhead | 1 |
| 7 | HS9098 | HOSE, bulkhead to compressor | 1 |
| 8 | HS98143 | HOSE, compressor to condenser | 1 |
| 9 | HS96106 | HOSE, condenser to receiver / drier | 1 |
| 10 | HS9674 | HOSE, receiver / drier to bulkhead | 1 |
| 11 | HS9664 | HOSE, bulkhead to evaporator | 1 |
| 11 | 8550PB024 | MODEL 8550/8600 HARVESTER |
