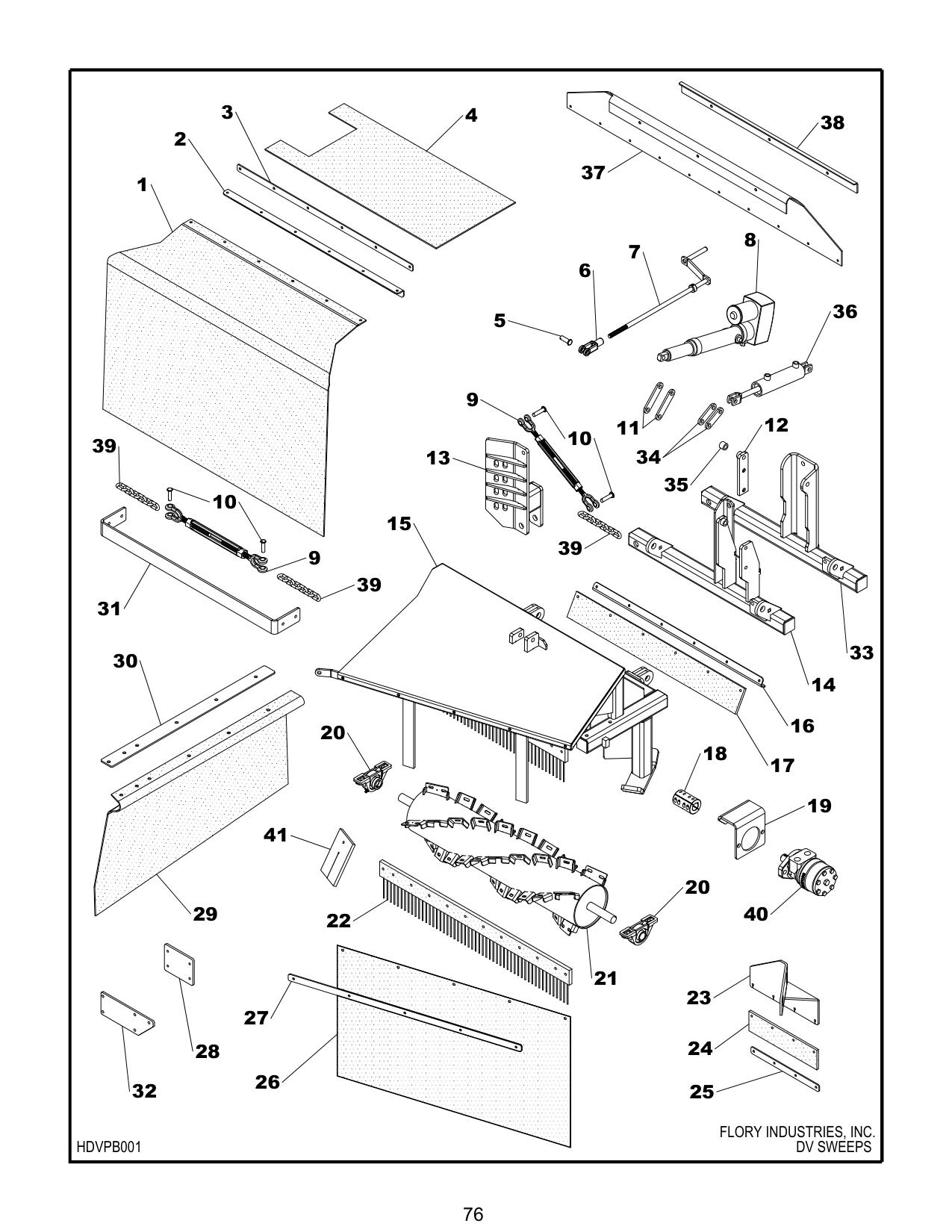

Figure 54 · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 33 | L69415 | MOUNT, pivot (right) (for hydraulic actuator) | 1 |
| 33 | L69435 | MOUNT, pivot (left) (for hydraulic actuator) | 1 |
| 34 | L69845 | BRACKET, hydraulic actuator | 4 |
| 35 | L19115 | SPACER, hydraulic actuator | 2 |
| 36 | WFC1504 | CYLINDER, lift | 2 |
| 37 | L39055 | CURTAIN, rear center | 1 |
| 38 | L69705 | CLAMP, rear curtain | 1 |
| 39 | 516C-1 | CHAIN (6 links) | 4 |
| 40A | HM1760 | MOTOR | 2 |
| 40B | HM2149-K | SEAL KIT, motor | 2 |
| 41 | T39317 | FLAP, drum (optional) | 40 |
| 41 | HDVPB001 | MODEL 8550/8600 HARVESTER |
