← Flory 8600 SP Harvester

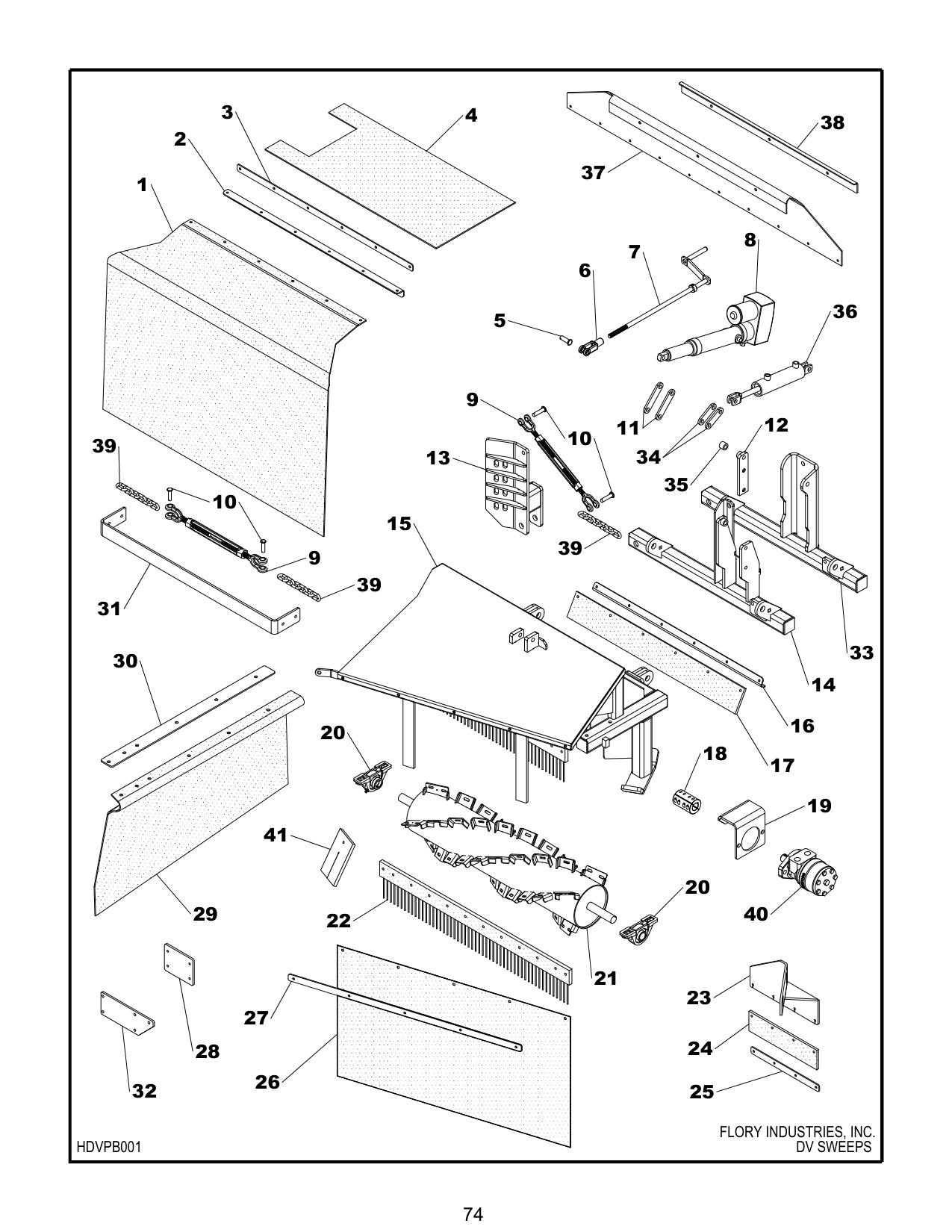

Figure 53 · Flory Flory 8600 SP Harvester

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
OPTIONAL DV SWEEPS
LEFT SIDE SHOWN
1 L39015 CURTAIN, front center 1
2 L69725 MOUNT, curtain 1
3 L69755 CLAMP, front curtain 1
4 L39125 MAT, floor (s/n ~1064) 1
4 L39166 MAT, floor (s/n 1065~) 1
5 87462 PIN, clevis 2
6 87460 CLEVIS 2
7 L19315 CRANK, depth 2
8A ME0085 ACTUATOR (Optional) 2
8B SW2056 SWITCH, actuator (Optional) 1
9 CT2085 TURNBUCKLE 3
10 PN4085 PIN, clevis 6
11 L69855 BRACKET, electric actuator 4
12 L69655 MOUNT, actuator 2
13 L69525 MOUNT, sweep (left) 1
13 L69505 MOUNT, sweep (right) 1
14 L69425 MOUNT, pivot (left) (for electric actuator) 1
14 L69405 MOUNT, pivot (right) (for electric actuator) 1
15 L69225 FRAME, main (left) 1
15 L69205 FRAME, main (right) 1
16 L69695 CLAMP, ground seal 2
17 L39115 SEAL, ground 2
18 CP9100 COUPLER, split 2
19 C6946 BRACKET, torque 2
20 PBC2100 BEARING 4
21 L59125 DRUM, (left) 1
21 L59105 DRUM, (right) 1
22 L39195 TINE, sweeper 8
23 L69575 BRACKET, wing (left) 1
23 L69555 BRACKET, wing (right) 1
24 L39725 SEAL, wing 2
25 L69745 CLAMP, wing seal 2
26 L39495 CURTAIN, front sides 2
27 L69735 CLAMP, front side curtain 2
28 L67415 MOUNT, flow control 1
29 L39145 CURTAIN, side 2
30 L69765 CLAMP, side curtain 2
31 L69775 BRACKET, front curtain support 1
32 L69605 MOUNT, lift cylinder valve 1
32 HDVPB001 MODEL 8550/8600 HARVESTER
