Optional Paddle Sweeps, Auger Drive, & Mud Brush · Flory Flory 8600 SP Harvester

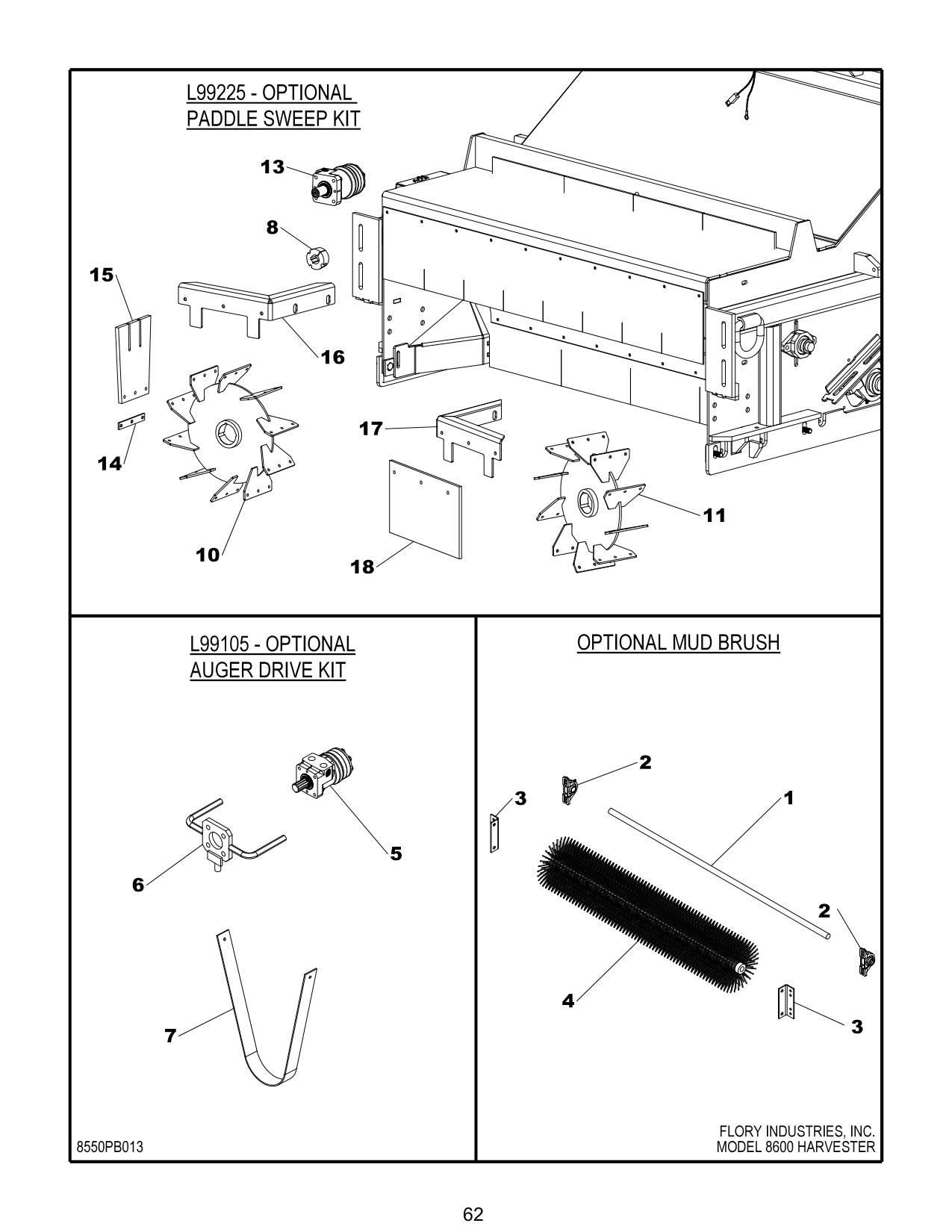

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 0503-8-6 | FITTING, adapter | 2 | |
| 2503-10-6 | FITTING, adapter | 4 | |
| 1/4X1-C | USS BOLT | 60 | |
| 1/4LN-C | USS LOCK NUT | 60 | |
| 5/16X1-C | USS BOLT | 3 | |
| 5/16LW-C | USS LOCK WASHER | 3 | |
| 5/16FW-F | USS FLAT WASHER | 3 | |
| 3/8X1-C | USS BOLT | 4 | |
| 3/8LW-C | USS LOCK WASHER | 4 | |
| 3/8FW-F | USS FLAT WASHER | 4 | |
| 3/8N-C | USS NUT | 4 | |
| 1/2X1-1/2FHA-C | USS FLATHEAD BOLT | 4 | |
| 1/2X1-3/4-C | USS BOLT | 4 | |
| 1/2N-C | USS NUT | 8 | |
| 1/2LW-C | USS LOCK WASHER | 8 | |
| 1/2FW-F | USS FLAT WASHER | 4 | |
| LARGE | TIE STRAPS | 6 | |
| 8550PB013 | MODEL 8600 HARVESTER |
