Optional Paddle Sweeps, Auger Drive, & Mud Brush · Flory Flory 8600 SP Harvester

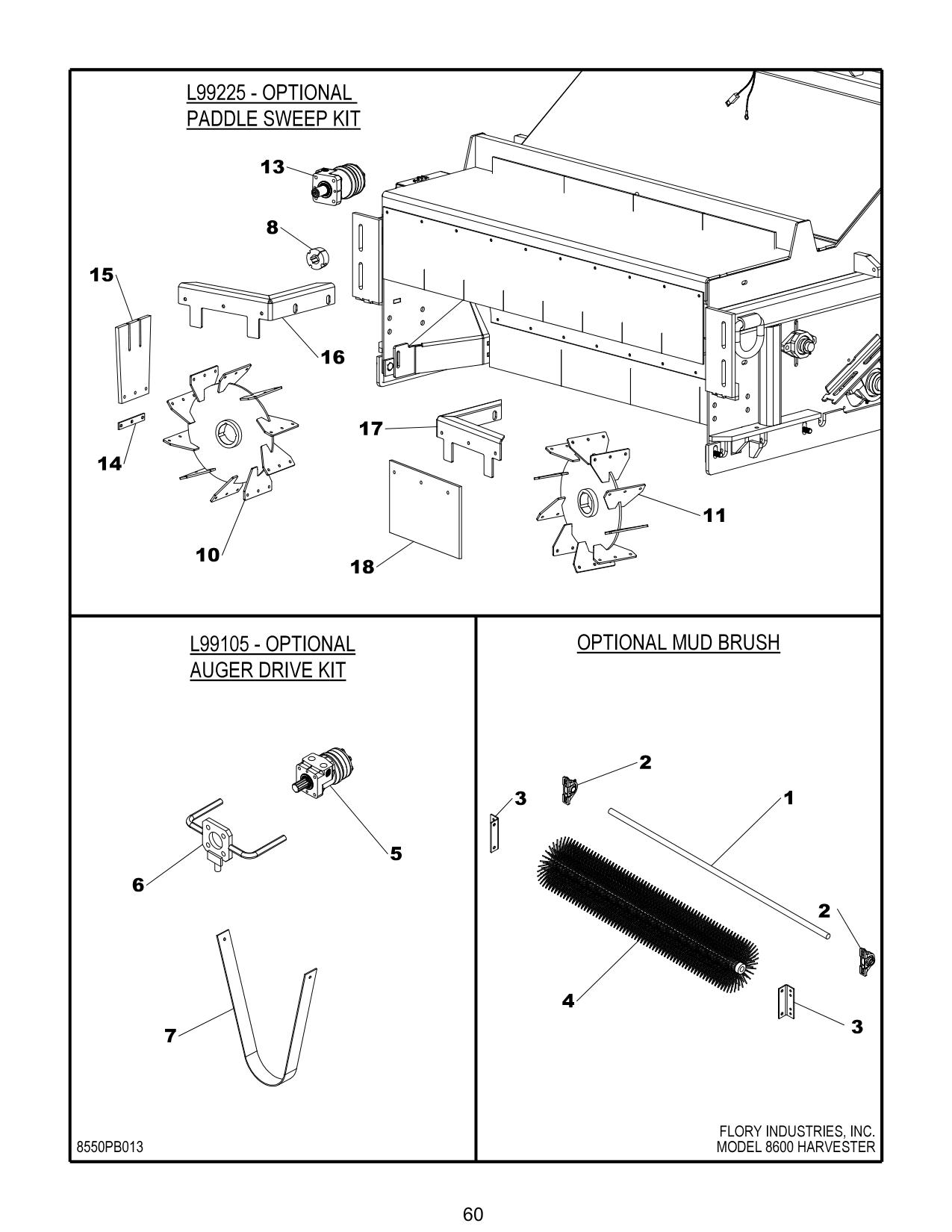

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | MUD BRUSH FOR HAZELNUTS | ||
| 1 | F50708 | SHAFT, brush | 1 |
| 2 | PBC2100 | BEARING | 2 |
| 3 | L69165 | BRACKET, bearing | 2 |
| 4 | RL2010 | BRUSH, mud | 1 |
| 4 | L99105 | OPTIONAL AUGER DRIVE KIT | |
| 5A | CM226S | MOTOR, hyd | 1 |
| 5B | CM226SK | SEAL KIT, motor (not included in L99105 kit) | 1 |
| 6 | F64240 | BRACKET, motor | 1 |
| 7 | F39010 | SLING, hose HOSE, quick coupler to motor (122”) | 1 |
| 7 | 6601-12-12 | COUPLER, quick (3/4” female) | 1 |
| 7 | 6602-12-12 | COUPLER, quick (3/4” male) | 1 |
| 7 | 0103-8-12 | ADAPTER, hyd. | 2 |
| 7 | 3/8X1-C | USS BOLT | 4 |
| 7 | 3/8LW-C | USS LOCK WASHER | 4 |
| 7 | L99225 | (non-cab) & L99235 (air cab) OPTIONAL PADDLE SWEEP KIT CONSISTS OF: | |
| 8 | 1610100 | BUSHING, paddle plate | 2 |
| 10 | F61768 | PLATE, paddle (right) | 1 |
| 11 | F61788 | PLATE, paddle (left) | 1 |
| 12 | L67155 | MOUNT, motor | 2 |
| 13A | HM1760 | MOTOR | 2 |
| 13B | HM2149-K | SEAL KIT, motor (not included in L99225 or L99235 kit) | 2 |
| 14 | T6114 | CLAMP STRIP, paddle | 20 |
| 15 | TM3042 | PADDLE | 20 |
| 16 | F61718 | BRACKET, wing (right) | 1 |
| 17 | F61728 | BRACKET, wing (left) | 1 |
| 18 | K3173 | SEAL, wing | 2 |
| 19 | S2098 | SWITCH, toggle (not shown) | 1 |
| 20 | L29915 | SLIDE, leaf (not shown) (non-cab only) | 1 |
| 96 | HOSE, manifold "D" port to right motor (94") | 1 | |
| 97 | HOSE, right motor top to left motor bottom (96”) | 1 | |
| 98 | HOSE, left motor top to manifold "C" port (136”) | 1 | |
| 98 | 8550PB013 | MODEL 8600 HARVESTER |
