Optional Air Cab Console · Flory Flory 8600 SP Harvester

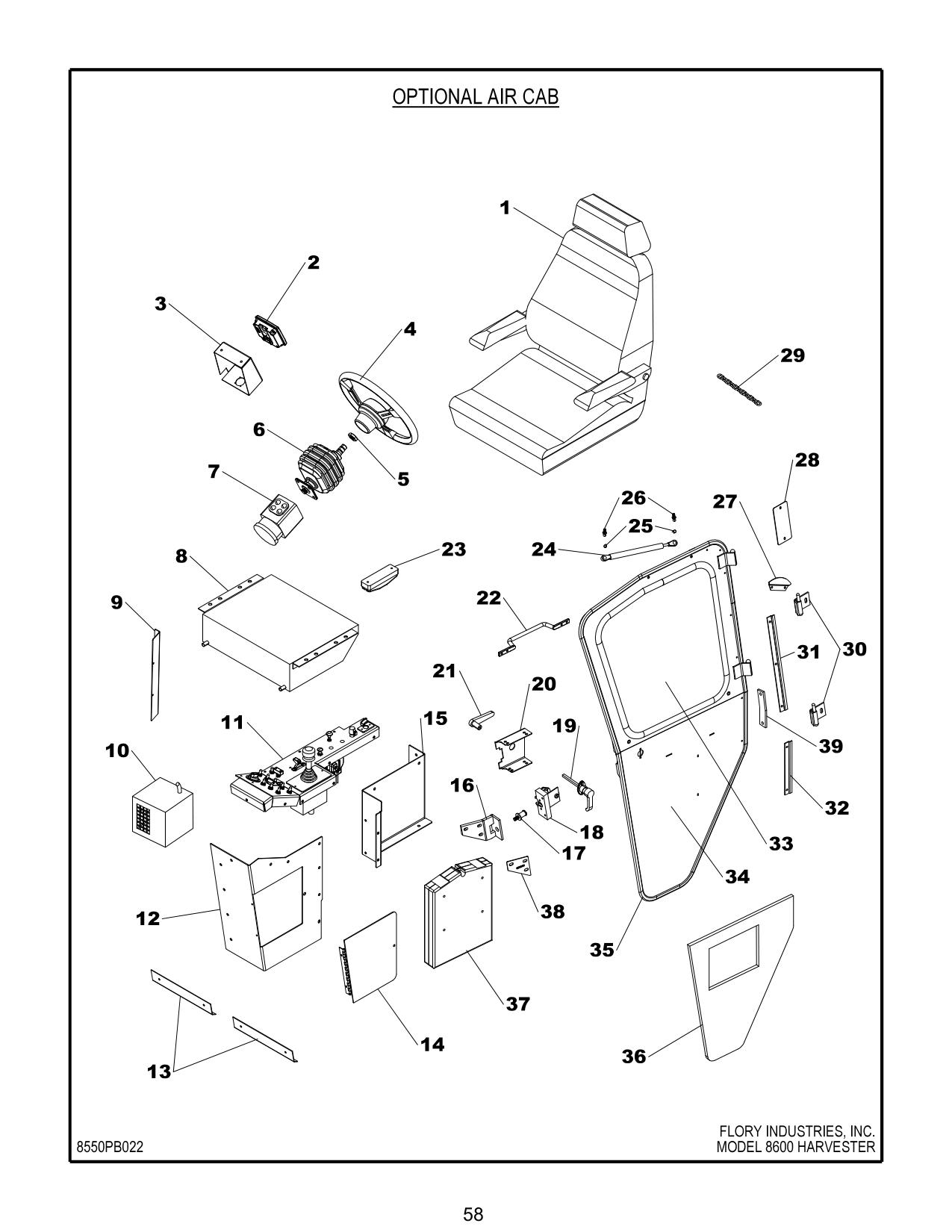

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 28 | F29418 | COVER, hinge | 2 |
| 29 | CH2009 | CHAIN, door stop | 1 |
| 30 | F29158 | HINGE, door | 2 |
| 30 | F29168 | SHIM, hinge (not shown) | |
| 31 | F69378 | BRACKET, door trim | 1 |
| 32 | L69375 | BRACKET, door trim | 1 |
| 33A | F29268ST | WINDOW, tempered glass (door) | 1 |
| 33B | AS987-1 | TRIM, window | |
| 34 | F29028 | DOOR, cab | 1 |
| 35 | RB1115-1 | TRIM, door seal | |
| 36 | L38045 | INSULATION, cab lower door panel (s/n ~1018) | 1 |
| 36 | L38206 | INSULATION, cab lower door panel (s/n 1019~) | 1 |
| 37 | MM3077 | CASE, manual (s/n 1019~) | 1 |
| 38 | L10706 | SHIM, striker mount | |
| 39 | L66105 | BRACKET, door | 1 |
| 39 | 8550PB022 | MODEL 8600 HARVESTER |
