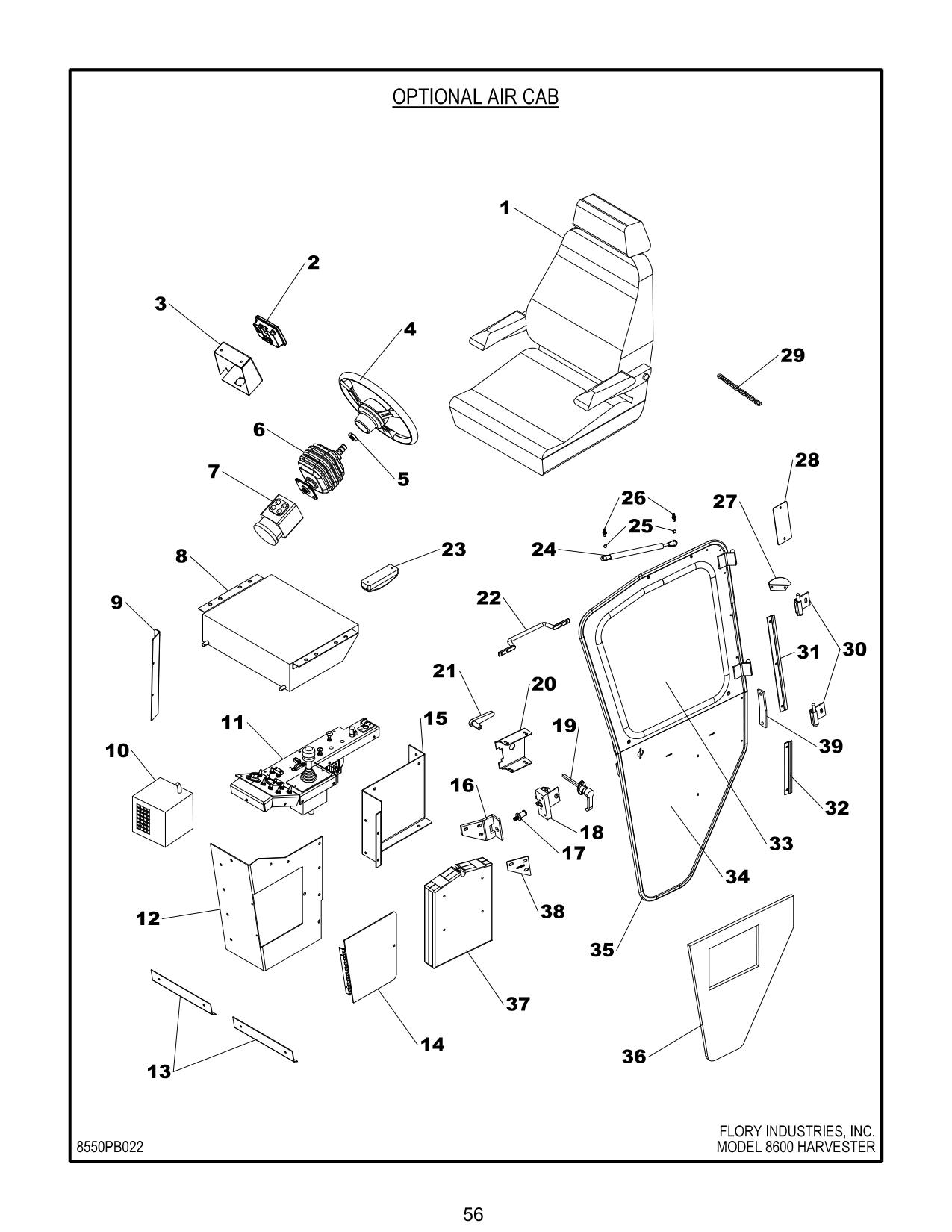

Optional Air Cab Console · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | ST2110 | SEAT (without seat belts) (s/n ~1124) | 1 |
| 1 | ST3012 | SEAT (with seat belts) (s/n 1125~) | 1 |
| 2 | CM3030 | DISPLAY, engine & systems | 1 |
| 3 | L29025 | MOUNT, display | 1 |
| 4A | CT3116 | STEERING WHEEL | 1 |
| 4B | MC0902 | CAP, steering wheel | 1 |
| 5 | NT0902 | NUT, steering wheel | 1 |
| 6 | CT3748 | COLUMN, steering wheel | 1 |
| 7A | SU1480 | MOTOR, steering | 1 |
| 7B | SU1153-K | SEAL KIT, motor | 1 |
| 8A | AR1748 | EVAPORATOR | 1 |
| 8B | ME9111 | MOTOR, evaporator fan | 1 |
| 8C | FN2111 | WHEEL, fan motor | 2 |
| 8D | FL0048 | FILTER, evaporator | 1 |
| 8E | SW1900 | SWITCH, thermostat | 1 |
| 8F | SW8900 | SWITCH, fan speed | 1 |
| 9 | F69358 | BRACKET, wire loom | 1 |
| 10A | AR7010 | BLOWER, cab | 1 |
| 10B | ME9110 | MOTOR, blower | 1 |
| 10C | FN2010 | FAN, blower | 1 |
| 11 | L69565 | CONSOLE, control | 1 |
| 12 | L69465 | PANEL, console access | 1 |
| 13 | F69318 | BRACKET, floor mat | 2 |
| 14A | L29165 | DOOR, console access | 1 |
| 14B | 101-15 | LATCH, receptacle (not shown) | 1 |
| 14C | 101-20 | LATCH, retainer (not shown) | 1 |
| 14D | 260 | LATCH, fastener (not shown) | 1 |
| 15 | L69475 | PANEL, console access | 1 |
| 16 | F69648 | MOUNT, striker | 1 |
| 17 | T15207 | PIN, door latch | 1 |
| 18 | LC1075 | LATCH, door | 1 |
| 19A | LC5075 | HANDLE, outside | 1 |
| 19B | FT9112 | KEYS, handle | 1 |
| 20 | F29428 | COVER, latch | 1 |
| 21 | LC5175 | HANDLE, inside | 1 |
| 22 | CT5901 | HANDLE, door | 1 |
| 23 | LT5900 | LIGHT, dome | 1 |
| 24 | SG4017 | SPRING, gas | 1 |
| 25 | RN2012 | CLIP, ball joint | 2 |
| 26 | CT4006 | STUD, ball | 2 |
| 27 | F69388 | BRACKET, door trim | 1 |
| 27 | 8550PB022 | MODEL 8600 HARVESTER |
