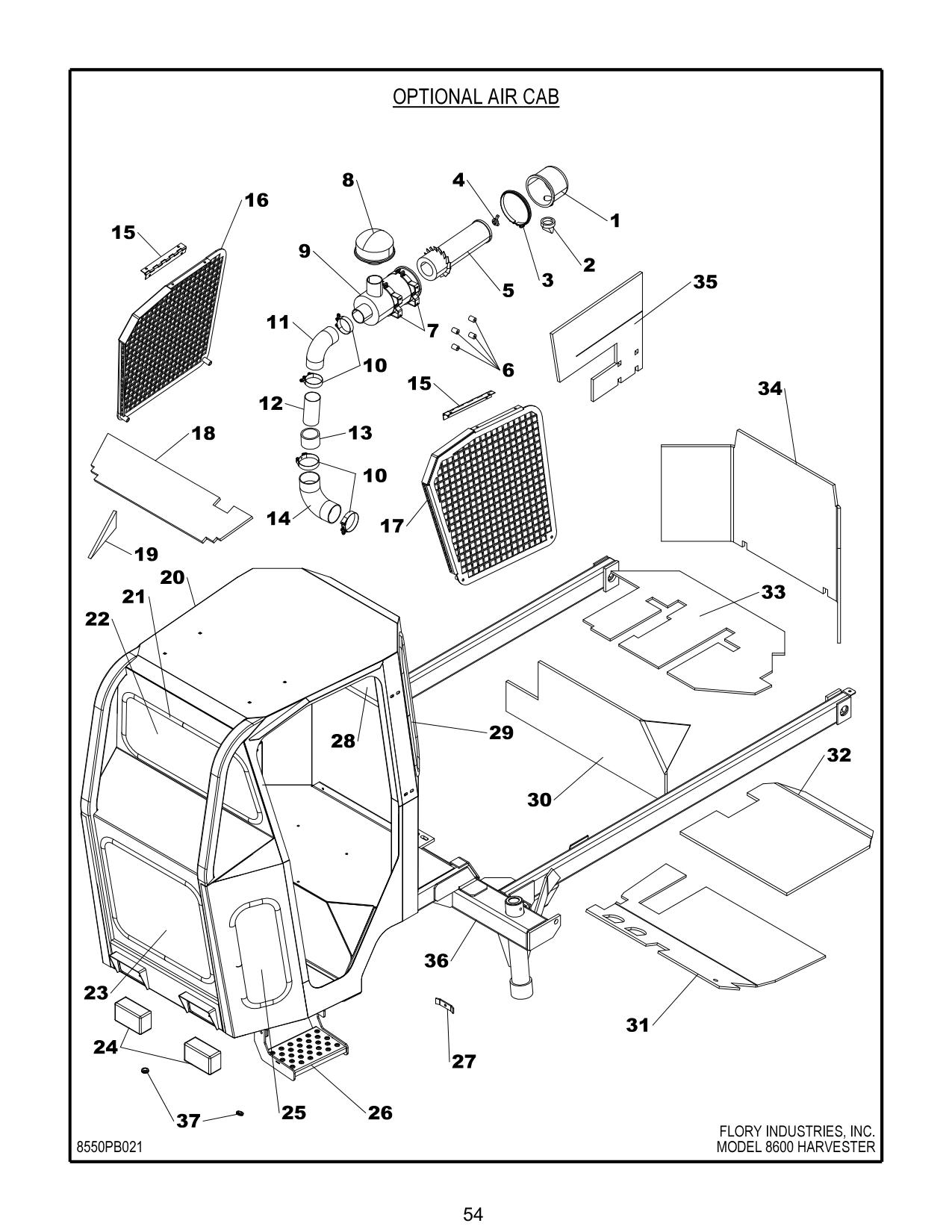

Optional Air Cab Front Axle · Flory Flory 8600 SP Harvester

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 CV1010 COVER, air cleaner 1
2 NP4055 DUMPER, air cleaner 1
3 P002904 CLAMP, cover 1
4 P101870 WING NUT, element 1
5 FL7011 ELEMENT, filter 1
6 F19128 SPACER, filter mount 4
7 P002348 MOUNT, filter 2
8 GAX001966 CAP, intake 1
9 AC1010 ASSEMBLY, air cleaner 1
10 CA4301 CLAMP, hose 4
11 P105531 ELBOW, air cleaner 1
12 F19118 TUBE, air cleaner 1
13 NP3010 REDUCER, air cleaner 1
14 P105532 ELBOW, air cleaner 1
15 L29135 HINGE, window guard (optional) 2
16 L29405 GUARD, window (right side) (optional) 1
17 L29415 GUARD, window (left side) (optional) 1
18 L38135 INSULATION, cab front nose 1
19 L38145 INSULATION, cab front corners 2
20 F29238ST WINDOW, tempered glass (right) 1
21 AS987-1 TRIM, window
22 F29318 WINDOW, glass (upper front) 1
23 F29228 WINDOW, glass (lower front) 1
24 64181 LIGHT, halogen (front) 2
25 L29255 WINDOW, glass (lower front right & left) 2
26 F69658 STEP 1
27 F69628 CLAMP, hose guide 1
28 F29308 WINDOW, glass (rear) 1
29 L29285 WINDOW, glass (upper rear right & left) 2
30 L38155 INSULATION, lower rear panel 1
31 L38115 MAT, floor 1
32 L38195 INSULATION, cab roof 1
33 L38165 MAT, seat 1
34 L38125 INSULATION, cab rear panel (s/n ~1101) 1
34 L38126 INSULATION, cab rear panel (s/n 1102~) 1
35 L38175 INSULATION, cab right side (s/n ~1101) 1
35 L38176 INSULATION, cab right side (s/n 1102~) 1
36 L29335 FRAME, air cab axle (s/n ~1101) 1
36 L29336 FRAME, air cab axle (s/n 1102~) 1
37 RB7010 GROMMET, AC hose 2
37 8550PB021 MODEL 8600 HARVESTER
