Torque Hub Parts Breakdown · Flory Flory 8600 SP Harvester

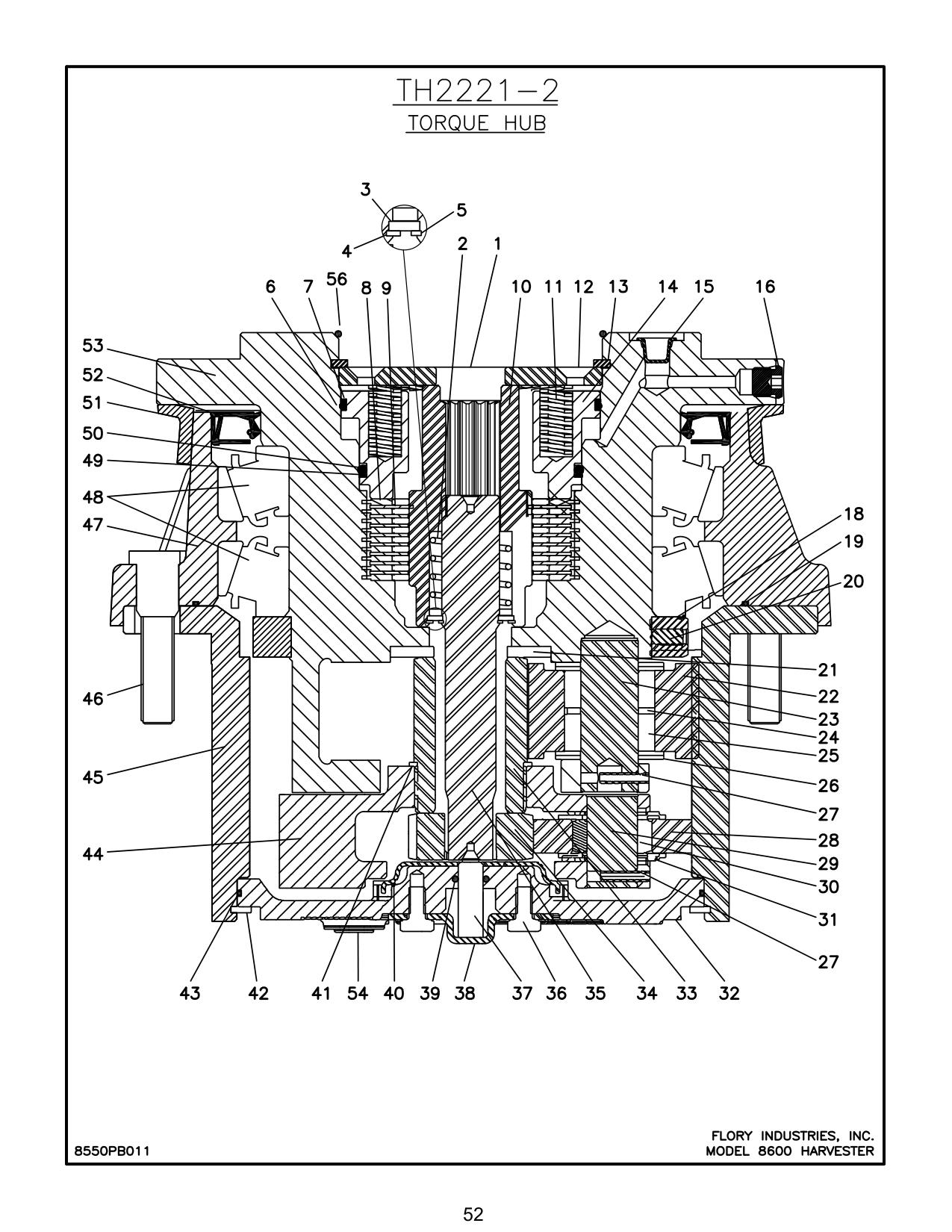

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 42 | RN1385 | RING, retaining | 1 |
| 43 | OR4085 | O RING | 1 |
| 44 | HG4085 | CARRIER | 1 |
| 45 | GR4385 | GEAR, ring | 1 |
| 46 | BT4085 | STUD | 9 |
| 47 | HG4185 | HOUSING | 1 |
| 48 | BR9085 | BEARING | 2 |
| 49 | OR4485 | RING, back up | 1 |
| 50 | OR4585 | O RING | 1 |
| 51 | SL4185 | SEAL, boot | 1 |
| 52 | SL4085 | SEAL, lip | 1 |
| 53 | SN4085 | SPINDLE | 1 |
| 54 | PG4085 | PLUG, pipe | 2 |
| 55 | BT0285 | BOLT, housing (not shown) | 3 |
| 56 | OR9044 | O RING | 1 |
| 56 | 8550PB011 | MODEL 8600 HARVESTER |
