Torque Hub Parts Breakdown · Flory Flory 8600 SP Harvester

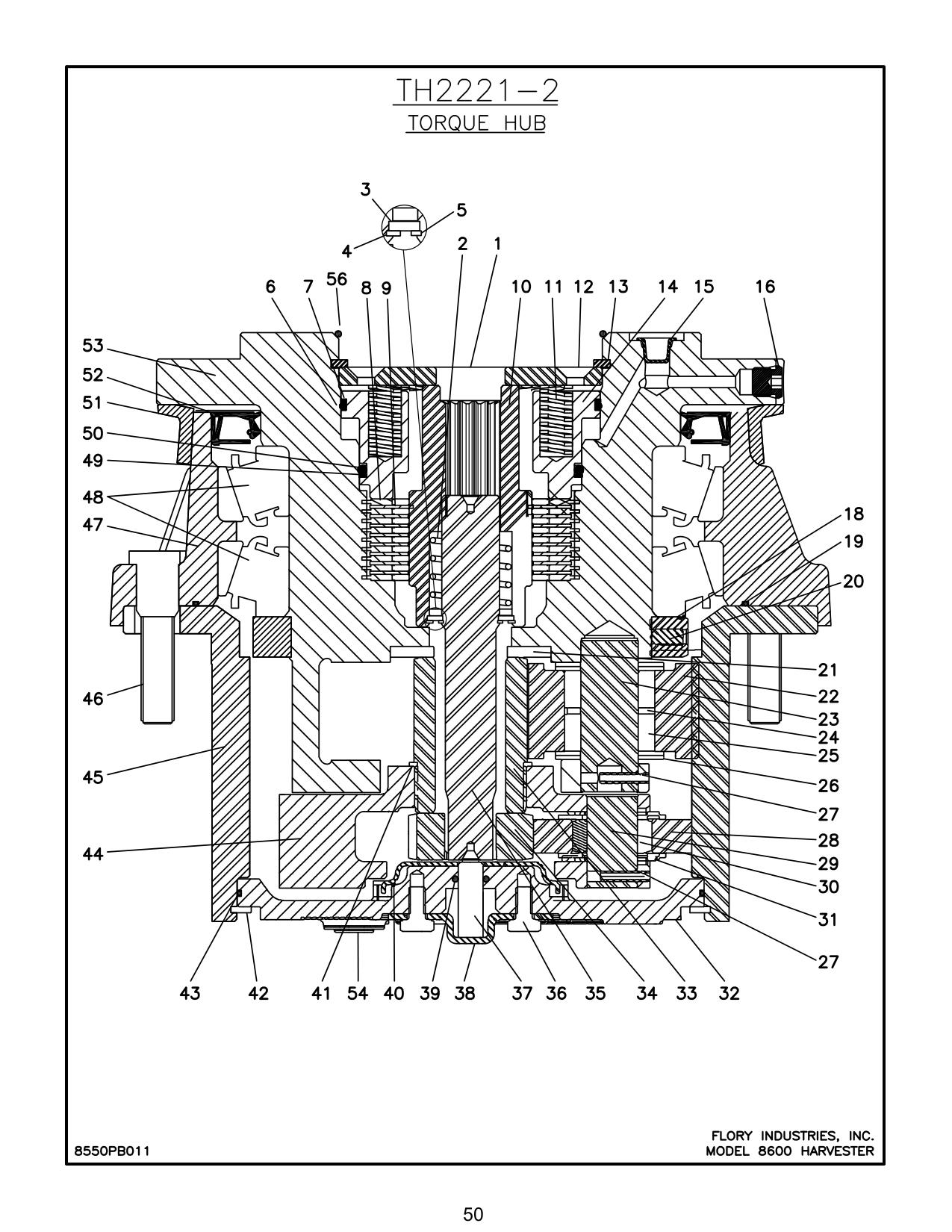

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | TH2221-2 | TORQUE HUB | 2 |
| 2 | SG1085 | SPRING | 1 |
| 3 | WS5085 | WASHER, thrust | 1 |
| 4 | RN1085 | RING, retaining | 1 |
| 5 | RN1185 | RING, retaining | 1 |
| 6 | OR4285 | O RING | 1 |
| 7 | OR4385 | RING, back up | 1 |
| 8 | NSS | STATOR, brake (Qty - 2, included in kit TH2221-BK) | 9 |
| 9 | NSS | ROTOR, brake (Qty - 2, included in kit TH2221-BK) | 8 |
| 10 | CP4185 | COUPLING | 1 |
| 11 | SG1185 | SPRING | 14 |
| 12 | DC1085 | PLATE, pressure | 1 |
| 13 | RN1485 | RING, retaining | 1 |
| 14 | PS1085 | BRAKE, piston | 1 |
| 15 | PG4285 | PLUG, plastic | 1 |
| 16 | PG4185 | PLUG, magnetic | 1 |
| 17 | BT4011 | SCREW, drive (not shown) | 4 |
| 18 | NT7085 | NUT, bearing | 1 |
| 19 | OR4685 | O RING | 1 |
| 20 | BT0185 | SCREW | 2 |
| 21 | WS5485 | WASHER, thrust | 1 |
| 22 | GR4485 | GEAR, planetary | 3 |
| 23 | SF4285 | SHAFT, planetary | 3 |
| 24 | WS5285 | SPACER, thrust | 3 |
| 25 | BR2185 | BEARING, needle | 84 |
| 26 | WS5385 | WASHER, thrust | 12 |
| 27 | TH131 | PIN, roll | 3 |
| 28 | GR4085 | GEAR, planetary | 3 |
| 29 | SF4085 | SHAFT, planetary | 3 |
| 30 | BR2085 | BEARING, needle | 42 |
| 31 | WS5185 | WASHER, thrust | 6 |
| 32 | CV4085 | PLATE, cover | 1 |
| 33 | GR4285 | GEAR, sun | 1 |
| 34 | GR4185 | GEAR, sun | 1 |
| 35 | SF4385 | SHAFT, input | 1 |
| 36 | BT0085 | BOLT, hex head | 2 |
| 37 | PN7085 | PIN, dowel | 1 |
| 38 | CV4185 | CAP, disengage | 1 |
| 39 | OR4185 | O RING | 1 |
| 40 | BU7085 | SPACER, thrust | 1 |
| 41 | RN1285 | RING, retaining | 1 |
| 41 | 8550PB011 | MODEL 8600 HARVESTER |
