Main Drives And Suction Fan · Flory Flory 8600 SP Harvester

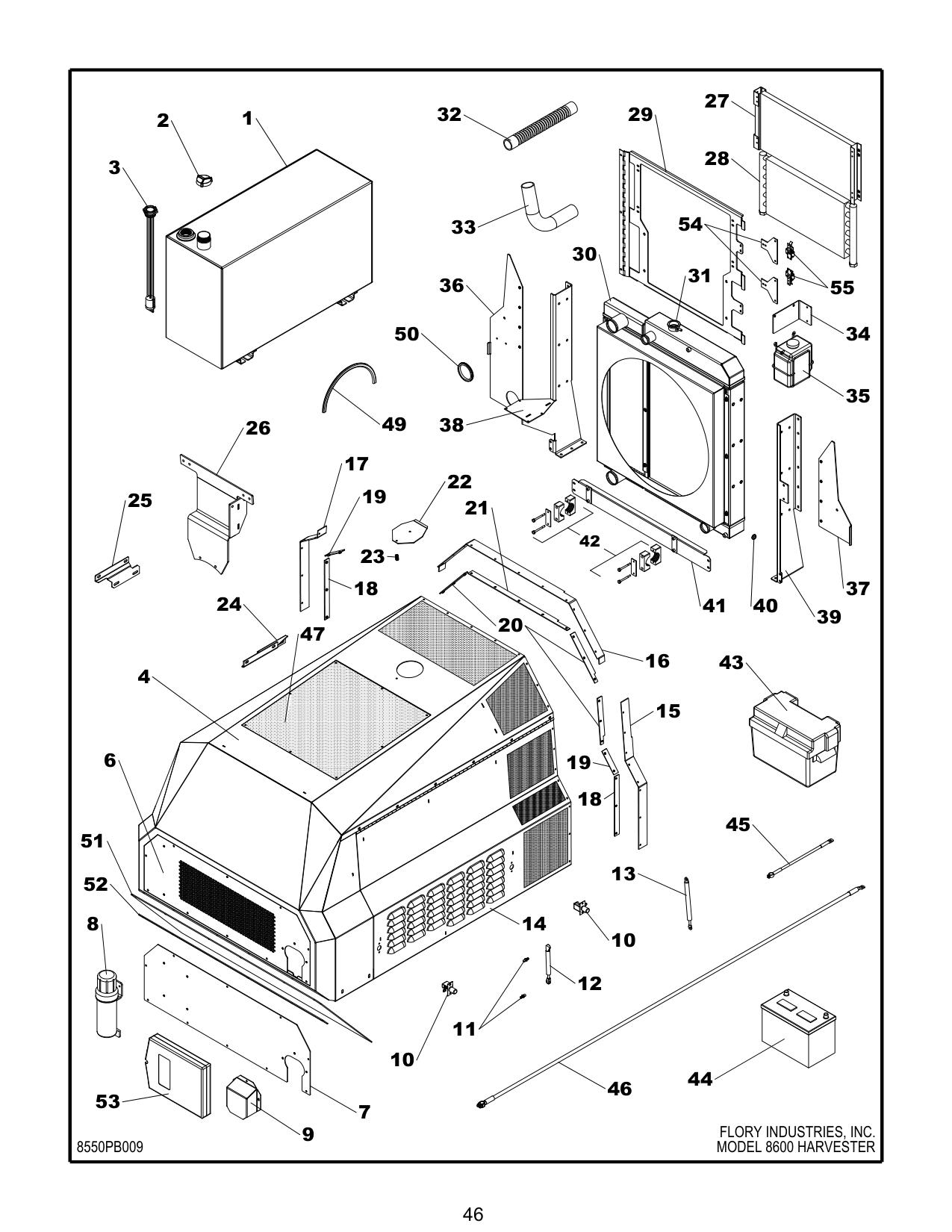

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 35A | CSL222 | TANK, engine overflow | 1 |
| 35B | 222-6 | CAP, overflow | 1 |
| 35C | HS8005-1 | HOSE, overflow | |
| 36 | L24025 | BAFFLE, radiator (right) | 1 |
| 37 | L24045 | BAFFLE, radiator (left) | 1 |
| 38 | L67675 | MOUNT, radiator (right) | 1 |
| 39 | L67695 | MOUNT, radiator (left) | 1 |
| 40 | 784633 | GROMMET, fan hose | 1 |
| 41 | L24055 | BAFFLE, radiator (center) | 1 |
| 42 | CA6200-2 | CLAMP, suction manifold | 2 |
| 43A | CV0085 | BOX, battery (includes top) | 1 |
| 43B | LC9100 | STRAP, battery | 1 |
| 44 | C27-XHD | BATTERY | 1 |
| 45 | CB4015 | CABLE, battery (negative) | 1 |
| 46 | CB3096 | CABLE, battery (positive) | 1 |
| 47 | L27235 | PANEL, engine access | 1 |
| 49 | RB1901-1 | SEAL, door 16 in. | |
| 50 | RB7085 | GROMMET, intake tube | 1 |
| 51 | L30145 | RUBBER, heat deflector (s/n 1009~) | 1 |
| 52 | L64255 | CLAMP STRIP, heat deflector (s/n 1009~) | 1 |
| 53 | MM3077 | CASE, manual (s/n 1019~) | 1 |
| 54 | L64756 | BRACKET, latch (s/n 1019~) | 2 |
| 55 | LC3000 | LATCH, oil cooler mount (s/n 1019~) | 2 |
| 55 | 8550PB009 | MODEL 8600 HARVESTER |
