Main Drives And Suction Fan · Flory Flory 8600 SP Harvester

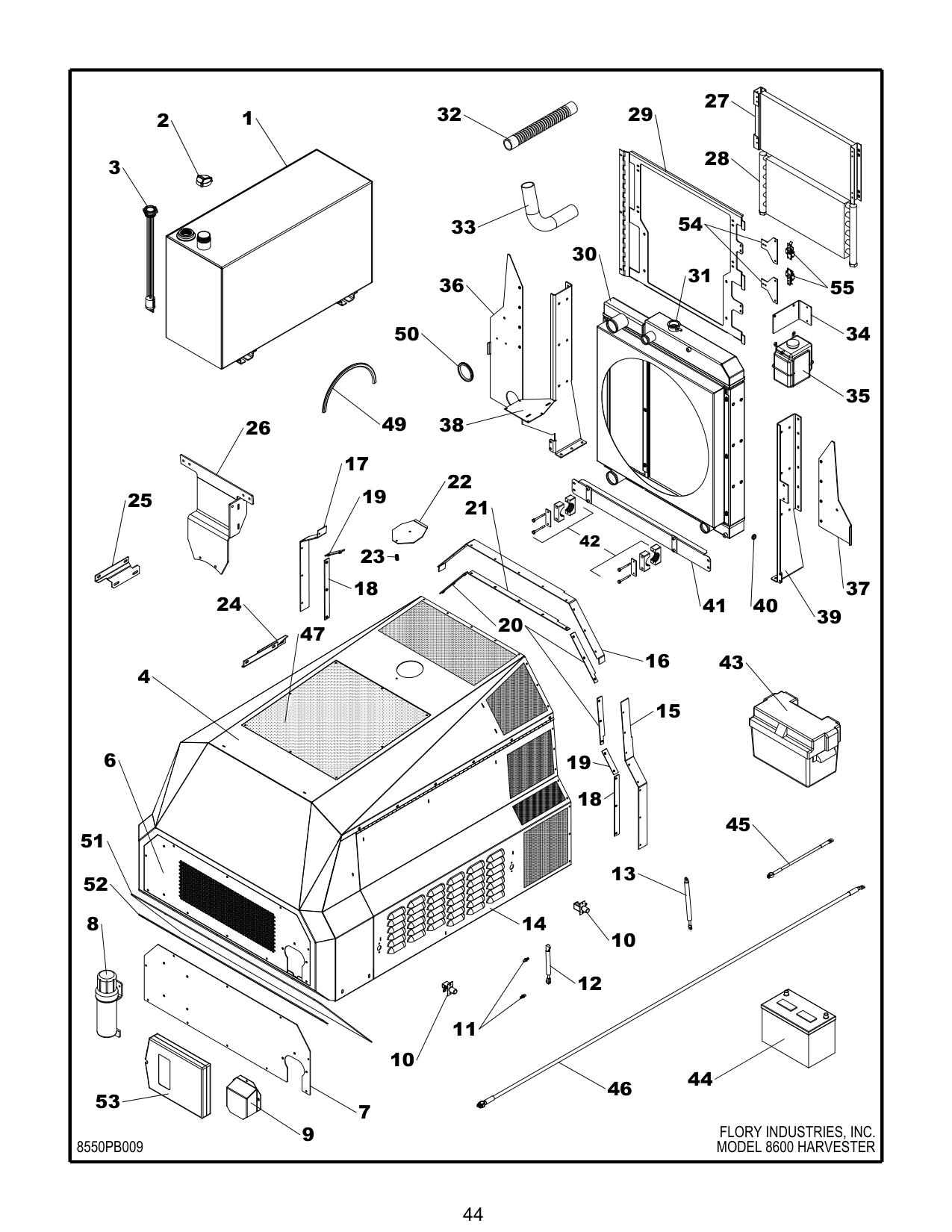

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L65115 | TANK, fuel (50 gal.) (s/n ~1046) | 1 |
| 1 | L65115-R1 | TANK, fuel (60 gal.) (s/n 1047~) | 1 |
| 2 | 31803 | CAP, fuel tank (replaced by 31083-A) | 1 |
| 2 | 31083-A | CAP, fuel tank | 1 |
| 3 | GA8085 | GAUGE, fuel | 1 |
| 4 | L20575 | HOOD, engine / radiator | 1 |
| 6 | L27205 | PANEL, access (front) (air cab only) | 1 |
| 7 | L27225 | PANEL, access (front) (open console only) | 1 |
| 8 | MM3000 | TUBE, manual (s/n ~1018) | 1 |
| 9 | F20198 | COVER, clutch brush holder | 1 |
| 10 | 11 | LATCH, door | 4 |
| 11 | CT4006 | BALL STUD, gas spring | 4 |
| 12 | SG4085 | GAS SPRING, door (front) | 2 |
| 13 | 4428 | GAS SPRING, door (rear) | 2 |
| 14 | L27135 | DOOR, engine access (right) | 1 |
| 14 | L27155 | DOOR, engine access (left) | 1 |
| 15 | L31665 | SEAL, door (left) | 1 |
| 16 | L31445 | SEAL, hood (upper) | 1 |
| 17 | L31645 | SEAL, door (right) | 1 |
| 18 | L64245 | CLAMP STRIP, seal | 2 |
| 19 | L64015 | CLAMP STRIP, seal | 2 |
| 20 | L64215 | CLAMP STRIP, seal | 3 |
| 21 | L64235 | CLAMP STRIP, seal | 1 |
| 22 | F20178 | COVER, radiator cap | 1 |
| 23 | 515 | SPRING, cover | 1 |
| 24 | L67635 | MOUNT, hood (left) | 1 |
| 25 | L67905 | MOUNT, hood (right) | 1 |
| 26 | L67655 | MOUNT, hood (front) | 1 |
| 27 | AR2110 | CONDENSER (air cab only) | 1 |
| 28A | OC1260-2 | COOLER, hydraulic oil | 1 |
| 28B | 515A | KIT, oil cooler mount | 2 |
| 29 | L67215 | MOUNT, cooler / condenser (s/n ~1018) | 1 |
| 29 | L67216 | MOUNT, cooler / condenser (s/n 1019~) | 1 |
| 30A | AY1085 | RADIATOR / CHARGE AIR COOLER ASSEMBLY | 1 |
| 30B | RD1085 | RADIATOR | 1 |
| 30C | CC5085 | CHARGE AIR COOLER | 1 |
| 31 | MC3013 | CAP, radiator | 1 |
| 32 | HS6016 | HOSE, radiator (upper) | 1 |
| 33 | 20611 | HOSE, radiator (lower) | 1 |
| 34 | L67565 | MOUNT, overflow tank | 1 |
| 34 | 8550PB009 | MODEL 8600 HARVESTER | |
| 35A | CSL222 | TANK, engine overflow | 1 |
| 35B | 222-6 | CAP, overflow | 1 |
| 35C | HS8005-1 | HOSE, overflow | |
| 36 | L24025 | BAFFLE, radiator (right) | 1 |
| 37 | L24045 | BAFFLE, radiator (left) | 1 |
| 38 | L67675 | MOUNT, radiator (right) | 1 |
| 39 | L67695 | MOUNT, radiator (left) | 1 |
| 40 | 784633 | GROMMET, fan hose | 1 |
| 41 | L24055 | BAFFLE, radiator (center) | 1 |
| 42 | CA6200-2 | CLAMP, suction manifold | 2 |
| 43A | CV0085 | BOX, battery (includes top) | 1 |
| 43B | LC9100 | STRAP, battery | 1 |
| 44 | C27-XHD | BATTERY | 1 |
| 45 | CB4015 | CABLE, battery (negative) | 1 |
| 46 | CB3096 | CABLE, battery (positive) | 1 |
| 47 | L27235 | PANEL, engine access | 1 |
| 49 | RB1901-1 | SEAL, door 16 in. | |
| 50 | RB7085 | GROMMET, intake tube | 1 |
| 51 | L30145 | RUBBER, heat deflector (s/n 1009~) | 1 |
| 52 | L64255 | CLAMP STRIP, heat deflector (s/n 1009~) | 1 |
| 53 | MM3077 | CASE, manual (s/n 1019~) | 1 |
| 54 | L64756 | BRACKET, latch (s/n 1019~) | 2 |
| 55 | LC3000 | LATCH, oil cooler mount (s/n 1019~) | 2 |
| 55 | 8550PB009 | MODEL 8600 HARVESTER |
