Front Axle · Flory Flory 8600 SP Harvester

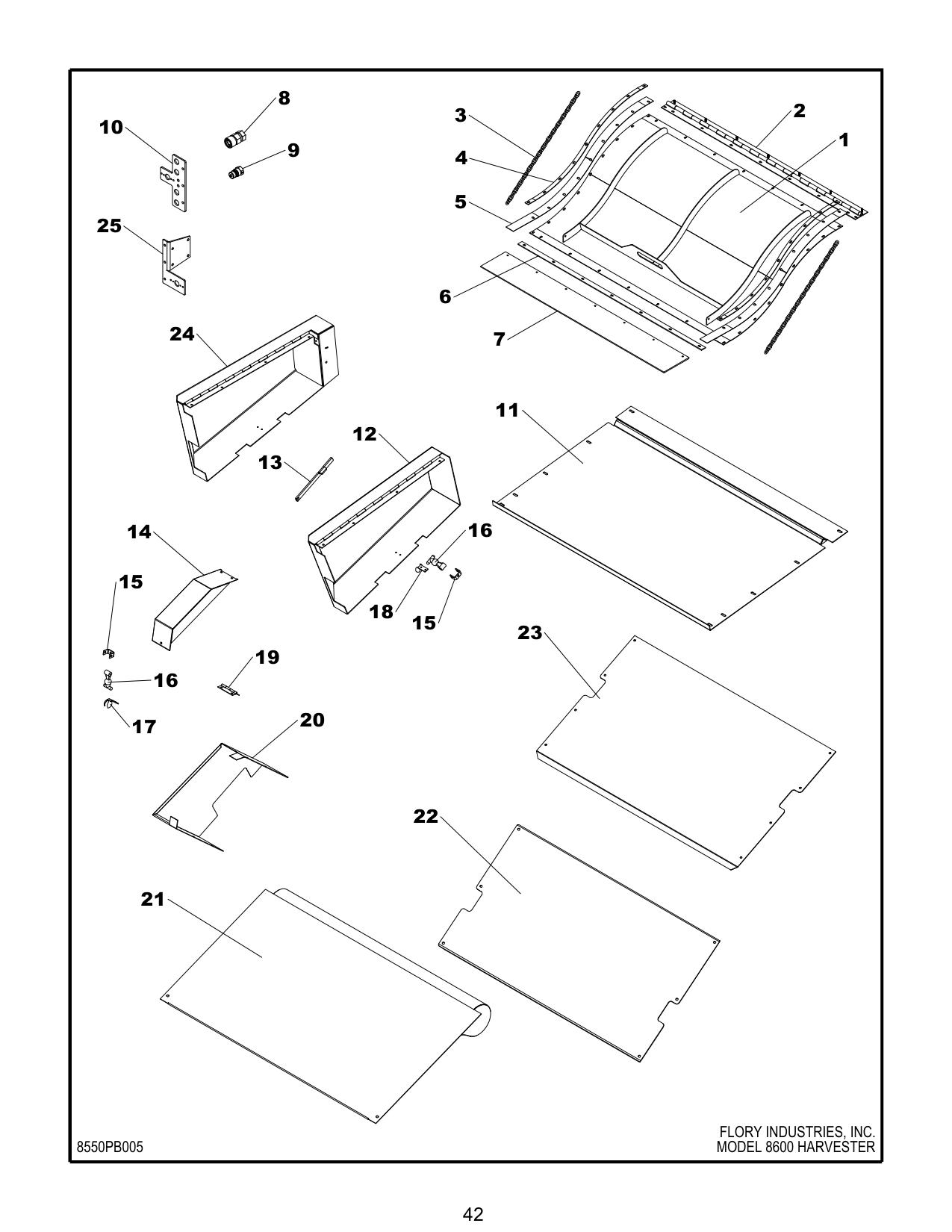

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L27080R | DOOR, inlet tube | 1 |
| 2 | L27100 | HINGE, inlet tube door | 1 |
| 3 | CH2024 | CHAIN, door (2/0 x 24”) | 2 |
| 4 | L64305 | CLAMP STRIP, seal | 2 |
| 5 | L34130R | SEAL, door | 2 |
| 6 | L64700 | CLAMP STRIP, seal | 1 |
| 7 | L34120 | SEAL, door | 1 |
| 8 | 6601-12-12 | COUPLER, quick (3/4” female) | 2 |
| 8 | 6659-12M | PLUG, dust (not shown) (s/n 1047~) | 2 |
| 9 | 6602-12-12 | COUPLER, quick (3/4” male) | 2 |
| 9 | 6657-12M | CAP, dust (not shown) (s/n 1047~) | 2 |
| 10 | L67775 | MOUNT, quick coupler (s/n ~1064) | 1 |
| 11 | L20835 | COVER, conveyor | 1 |
| 12 | L20855 | SHIELD, conveyor drive (s/n ~1101) | 1 |
| 13 | L60085 | ARM, shield prop | 1 |
| 14 | L20415 | SHIELD, beater drive (upper) | 1 |
| 15 | 277A801 | ANCHOR, rubber hook | 2 |
| 16 | 71D1376 | HOOK, rubber | 2 |
| 17 | 028561 | LATCH, rubber hook | 1 |
| 18 | 28A382 | LATCH, rubber hook | 1 |
| 19 | L27010 | HINGE, beater drive shields | 1 |
| 20 | L20405 | SHIELD, beater drive (lower) | 1 |
| 21 | L63470 | DAMPER, inlet tube | 1 |
| 22 | L60200 | SHIELD, elevator (lower) | 1 |
| 23 | L20825 | COVER, conveyor (lower)(almonds) | 1 |
| 24 | L20856 | SHIELD, conveyor drive (s/n 1102~) | 1 |
| 25 | L67776 | MOUNT, quick coupler (s/n 1065~) | 1 |
| 25 | 8550PB005 | MODEL 8600 HARVESTER |
