Radiator, Fuel Tank And Engine Covers · Flory Flory 8600 SP Harvester

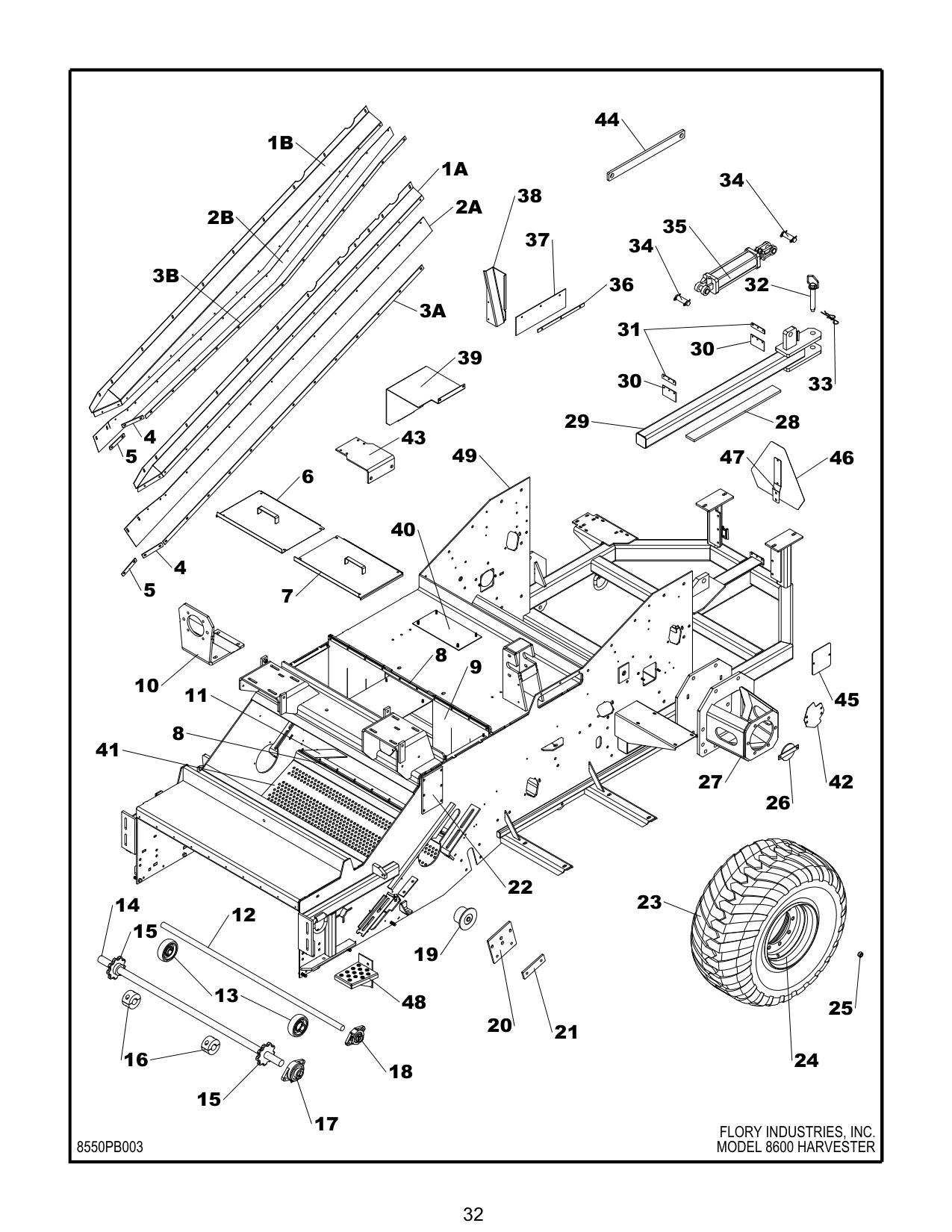

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 35 | 310DB | CYLINDER, telescoping hitch (includes pins & clips) | 1 |
| 36 | L64165 | CLAMP STRIP, check flap | 1 |
| 37 | L31625 | CHECK FLAP, cooling fan | 1 |
| 38 | L24075 | BAFFLE, radiator | 1 |
| 39 | L20305 | COVER, solenoid valve | 1 |
| 40 | L14155 | SPACER, air cleaner plenum (s/n ~1018) | 1 |
| 41 | L69005 | PAN, perforated nut | 1 |
| 42 | L20075 | COVER, shaft (bar chain)(wal, pec, hzl, mac) | 6 |
| 43 | L67455 | MOUNT, high pressure filter (optional PAW only) | 1 |
| 44 | L69385 | STRAP, hitch cylinder replacement | 1 |
| 45 | L20090 | COVER, access (s/n 1102~) | 2 |
| 46 | 101105 | SIGN, SMV | 1 |
| 47 | 112409 | SPADE, SMV mount | 1 |
| 48 | L69206 | STEP (optional) | 1 |
| 49 | CHA8550 | CHASSIS | 1 |
| 49 | 8550PB003 | MODEL 8600 HARVESTER |
