Radiator, Fuel Tank And Engine Covers · Flory Flory 8600 SP Harvester

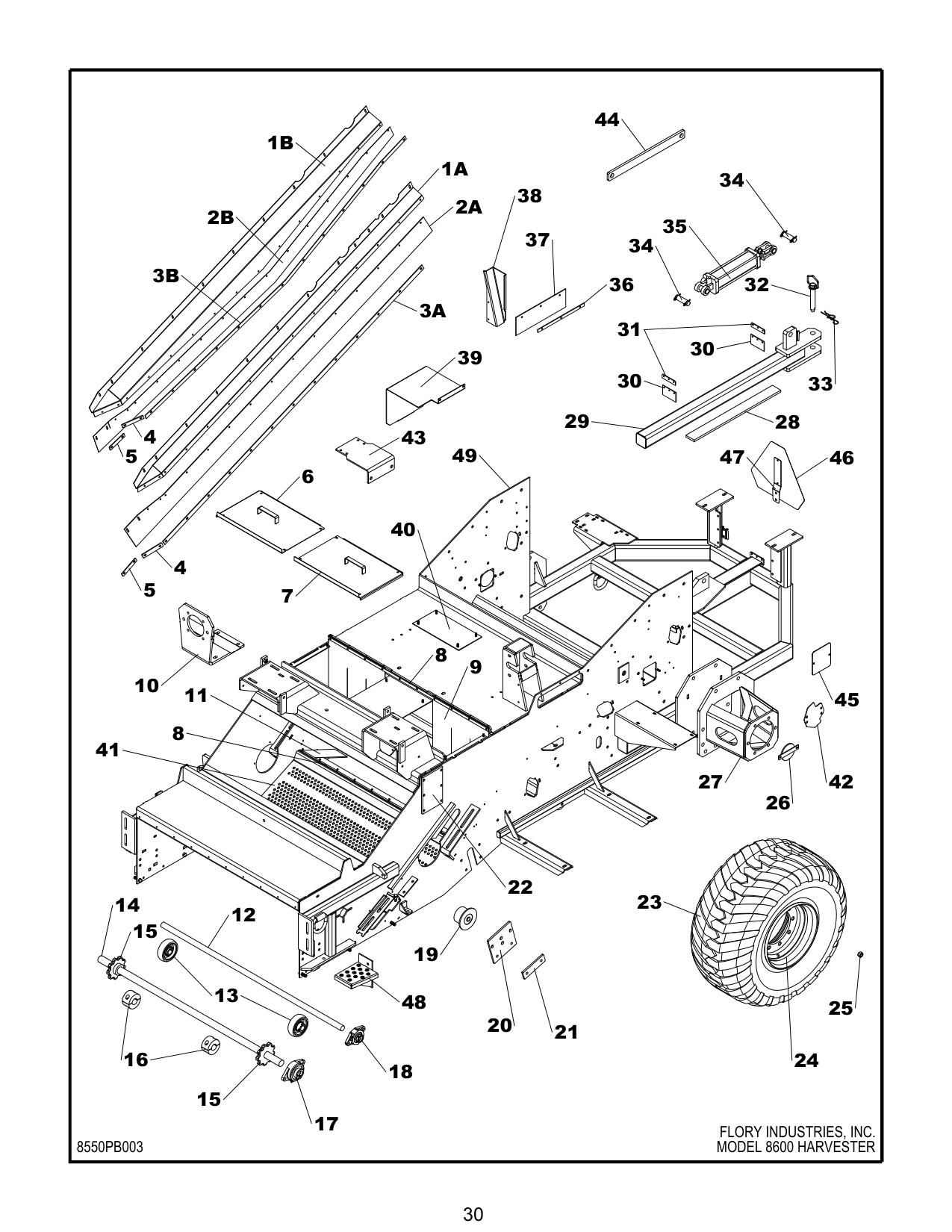

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1A L65960 BRACKET, primary seal (right) (alm, wal s/n ~1028, hzl.) 1
1A L65980 BRACKET, primary seal (left) (alm, wal s/n ~1028, hzl.) 1
1B L65970 BRACKET, primary seal (right) (pecs, wal s/n 1029~) 1
1B L65990 BRACKET, primary seal (left) (pec, wal s/n 1029~) 1
2A L31830 SEAL, primary (alm, wal s/n ~1028, hzl.) 2
2B L31825 SEAL, primary (pec, wal s/n 1029~) 4
3A L64550 CLAMP STRIP, primary seal (alm, wal s/n ~1028, hzl.) 2
3B L64985 CLAMP STRIP, primary seal (pec, wal s/n 1029~) 2
4 L64980 CLAMP STRIP, primary seal (lower) (all crops) 2
5 L64540 CLAMP STRIP, primary seal (lower) (all crops) 2
6 L20125 COVER, p/u belt (right) 1
7 L20145 COVER, p/u belt (left) 1
8 F6012 CLAMP STRIP, check flap & seal 2
9 L30125 CHECK FLAP, lower elevator 2
10 L67445 MOUNT, propulsion pump 1
11 L31565 SEAL, lower primary 1
11 L31506 SEAL, lower primary twin rod (s/n 1247~) 1
12 L50900 SHAFT, bounce roller (wire chain) 3
13 RL4052 ROLLER, bounce (wire chain) 6
14 F50368 SHAFT, d/c front (wire chain) 1
15 CA550X9T SPROCKET, shaft (welded) (wire chain) 2
16 L32920 ROLLER, support (wire chain) 2
17 FLC2108 BEARING, shaft (wire chain) 2
18 FLC2103 BEARING, shaft (wire chain) 6
19 RL1080 ROLLER, nose (bar chain) 2
20 L20015 COVER, side plate (nose roller mount)(bar & twin-rod chains) 2
21 L61105 STRAP, side plate (wire chain) 2
22 F32008 GUIDE, side arm 2
23A 400-60-15.5 TIRE, rear 2
23B TR9135 TUBE, rear tire 2
24 WH1510 WHEEL, rear 2
25 102070 NUT, wheel lug 18
26 L20070 COVER, access (s/n ~1101) 2
27 L67285 MOUNT, torque hub 2
28 L32000 GUIDE, hitch 2
29 L61940 HITCH, telescoping 1
30 L31250 WIPER, hitch 2
31 L64450 CLAMP STRIP, hitch wiper 2
32 12687 PIN, hitch 1
33 PN3004 PIN, hair (1/8”) (included with 12687) 1
34 1544 PIN, cylinder 2
34 8550PB003 MODEL 8600 HARVESTER
35 310DB CYLINDER, telescoping hitch (includes pins & clips) 1
36 L64165 CLAMP STRIP, check flap 1
37 L31625 CHECK FLAP, cooling fan 1
38 L24075 BAFFLE, radiator 1
39 L20305 COVER, solenoid valve 1
40 L14155 SPACER, air cleaner plenum (s/n ~1018) 1
41 L69005 PAN, perforated nut 1
42 L20075 COVER, shaft (bar chain)(wal, pec, hzl, mac) 6
43 L67455 MOUNT, high pressure filter (optional PAW only) 1
44 L69385 STRAP, hitch cylinder replacement 1
45 L20090 COVER, access (s/n 1102~) 2
46 101105 SIGN, SMV 1
47 112409 SPADE, SMV mount 1
48 L69206 STEP (optional) 1
49 CHA8550 CHASSIS 1
49 8550PB003 MODEL 8600 HARVESTER
